- Krauss Maffei 110 - 700 C1 Injection Moulding Machine

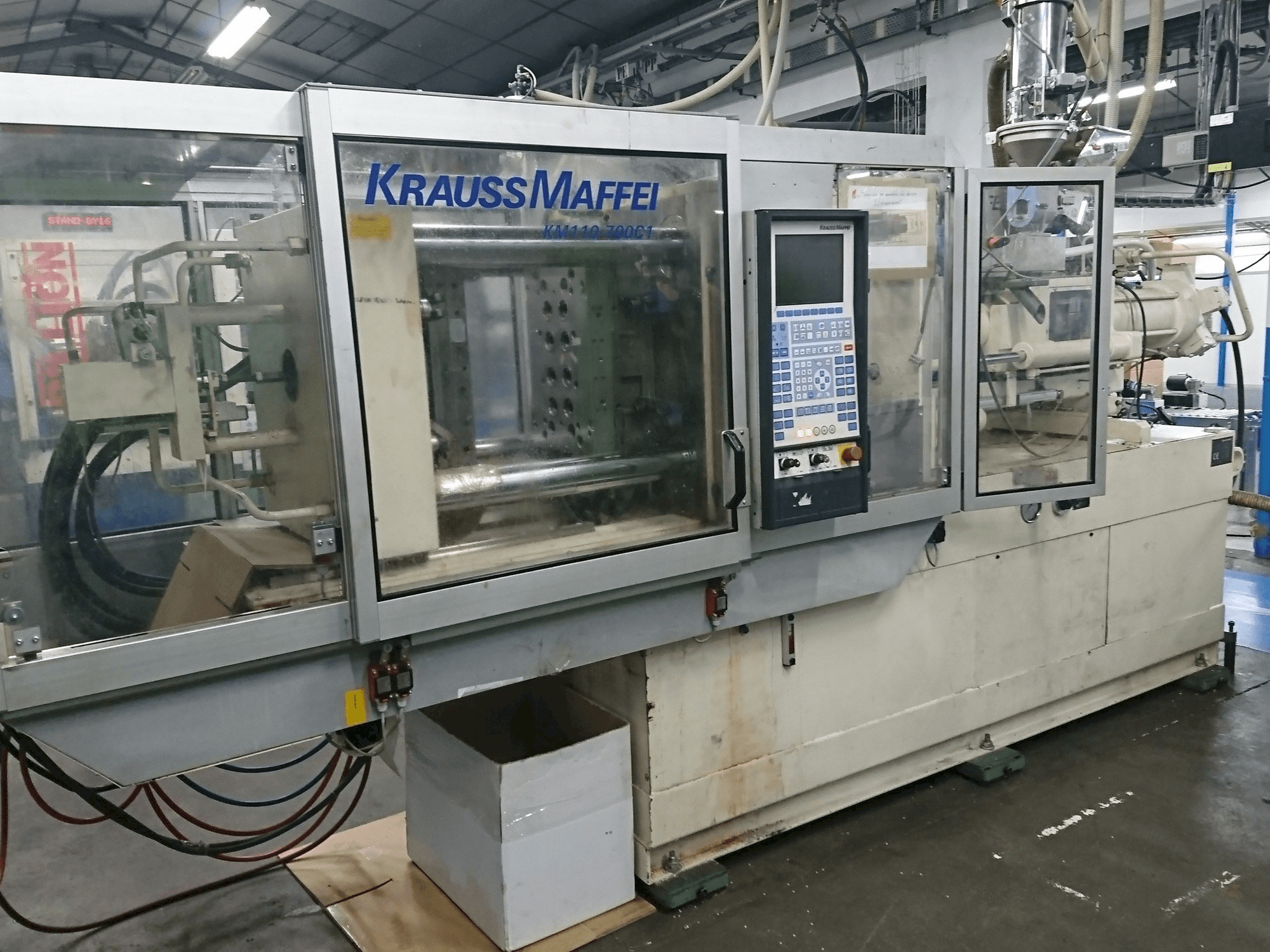

This Krauss Maffei 110 - 700 C1 Injection Moulding Machine was built in the year 2000 in Germany. This machine counts with 37200 production hours. It incorporates a clamping force of 1100 kN.
Overview
- brand: Krauss Maffei
- year: 2000
- MODEL: 110 - 700 C1
- production hours: 37200
- application type: Injection Moulding
- Location: France
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei 110 - 700 C1
General Data
- Measurements width: 5000 mm
- Measurements depth: 1550 mm
- Measurements height: 2200 mm
- Machine weight: 6500 kg
Injection Unit
- Screw diameter: 45 mm
- Shot weight: 278 g
- Injection pressure: 2000 bar
- Nozzle pressure: 84 kN
Clamping unit
- Clamping force: 1100 kN
- Opening stroke: 600 mm
- Max open daylight: 900 mm
- Distance between bars: 470 mm x 470 mm
- Mould height min: 300 mm
- Size of mold platens: 745 mm x 770 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 22/10 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
