➤ Used KONDIA B-1050 - Vertical Machining Center

Show in original language

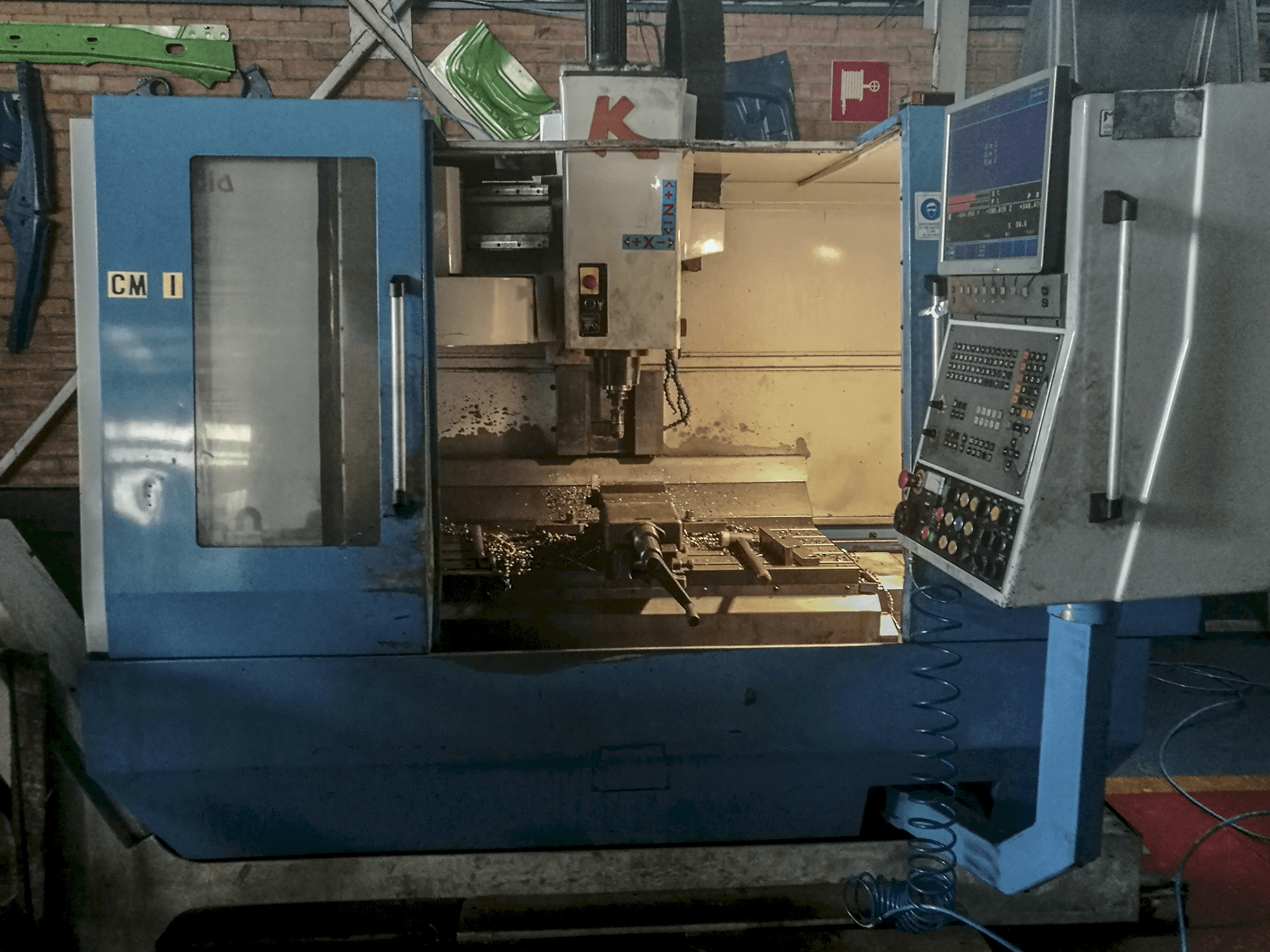

This KONDIA B-1050 Vertical Machining Center, which was manufactured in Spain in the year 2000, has a total working time of 16292 production hours. This model is operated through a Heidenhain TNC 430 Control unit and the main spindle motor was overhauled two years ago in 2016.

Overview

brand: KONDIA
year: 2000
MODEL: B-1050
production hours: 16292
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KONDIA B-1050

General Data

Measurements width: 1950 mm
Measurements depth: 1940 mm
Measurements height: 2240 mm
Machine weight: 3100 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 430
CNC main language: Spanish

Main drive

Number of spindles: 1
Spindle speed range: 100-6000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 380 mm

Workpiece

Workpiece x: 700 mm
Workpiece y: 350 mm
Workpiece weight: 300 kg

Table

Outer length: 700 mm
Outer width: 350 mm
Number of tslots: 3
Distance between: 110 mm

Tools

Max tool diameter: 85 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
