Juaristi FTF-1-CNC-COP Bridge Milling Machine

Show in original language

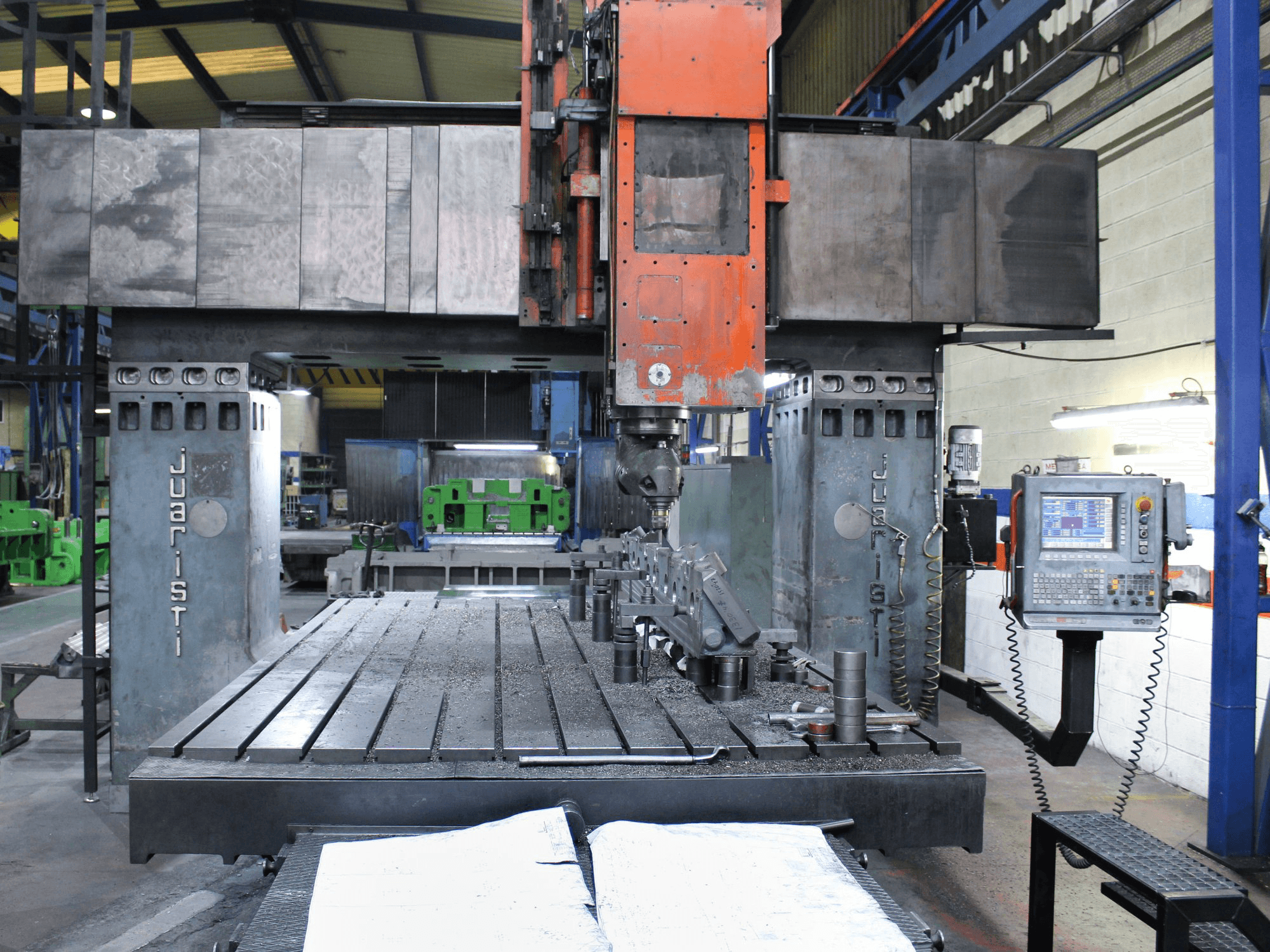

This Juaristi FTF-1-CNC-COP Bridge Milling Machine from 1986 has spacious table of 4000 x 2500 millimeters (L x W). With a range of movements of 4000, 2800 and 1200 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the machine is operated through a Fidia C1 Control unit.

Overview

brand: JUARISTI
year: 1986
MODEL: FTF-1-CNC-COP
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: FIDIA

Technical Information - JUARISTI FTF-1-CNC-COP

General Data

Measurements width: 4620 mm
Measurements depth: 8144 mm
Measurements height: 4873 + 300 mm
Machine weight: 35000 Kg

Control Unit

Model: C1
Brand: FIDIA

Main drive

Spindle motor power: 30 cv
Tool taper: ISO 50

Movement

X-AXIS Movement: 4000 mm
X-AXIS Rapid traverse: 5000 mm/min
Y-AXIS Movement: 2800 mm
Y-AXIS Rapid traverse: 5000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Rapid traverse: 3000 mm/min
U/V Movement: +/-75 x +/-75 mm

Table

Outer length: 4000 mm
Outer width: 2500 mm
Distance between: 2800 mm
Min distance between vertical spindle and table: 100 mm + 300 mm
Max distance between vertical spindle and table: 1200 mm + 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
