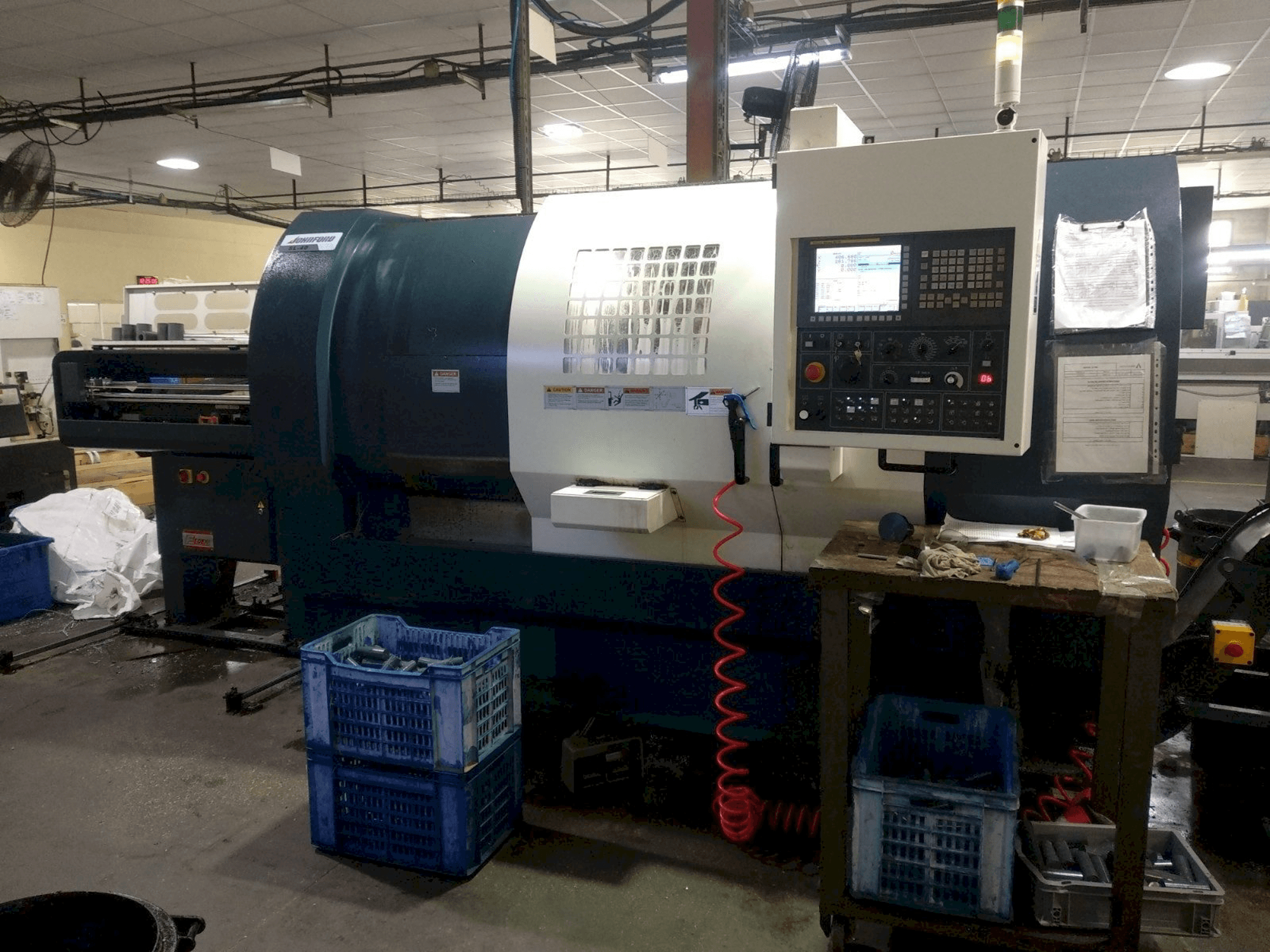

This Johnford SL-40 Lathe was built in 2016 in Taiwan. It has been working for 22320 hours, of which 9592 are cutting hours and 2889 are running time. This machine is equipped with a FANUC Series control unit. It can work with a spindle speed up to 4000 rpm.

Overview

brand: Johnford
year: 2016
MODEL: SL-40
production hours: 22320
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Johnford SL-40

General Data

Measurements width: 1851 mm
Measurements depth: 3525 mm
Measurements height: 1862 mm
Machine weight: 4500 kg

Control Unit

Model: 0iTD
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11 / 15 kw
Spindle bore: Ø 86 (Ø 3.4") mm

Movement

X-AXIS Rapid traverse: 20 m / min
Y-AXIS Movement: ± 40 mm
Y-AXIS Rapid traverse: 10 m / min
Z-AXIS Rapid traverse: 20 m / min

Turret

Number of tool slots: 12

Tail Stock

Pinol diameter: Ø 60 (Ø 2.4") mm
Pinol way: 60 (2.4") mm

Media

Main electronic connection: 3- 380 V 50 HZ
Power consumption: 26 KW

Additional Equipment

- C+Y-a axis
- Contact tool setting system
- Parts catcher
- Tool holders (VDI type) - Tool holders - 5 horizontal / 5 vertical made by WTO from Germany
- Programmable hydraulic tailstock
- Bar feeder interface
- Rotary tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed Ø 580 (Ø 22. 8") mm
- - Swing over cross slide Ø 450 (Ø 17. 7") mm
- - Chuck size 254 mm
- - Bar capacity Ø 76. 5 (Ø 3") mm
- - Spindle nose a2-8
- - Spindle transmission: one step
- - Spindle bearing diameter Ø 120 (Ø 4. 7") mm
- - Cross travel (x-axis): 240 (9. 4") mm
- - Longitudinal travel (z-axis)(for y-axis): 600 (500) < 23. 6 "(19. 7")> mm
- - Tailstock travel (for y-axis): 500(400) < 19. 7 "(15. 7")> mm
Qualitative Machine Benefits:
- - Coolant system; splash guard
- - Through hole 3-jaw chuck
- - Programmable hydwaulic tailstock
- - Hydraulic tailstock quill
- - Chain type chip conveyor
- - Tool box and various manuals
- - Tool holders (direct mounting type)
- - Auto lubrication with alarm
- - Led working lamp
- - Type of guide ways: box ways

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
