INGERSOLL - High Speed Eagle V5PL-MIL-ING-2018-00001

Name: INGERSOLL High Speed Eagle V5
Brand: INGERSOLL
SKU: PL-MIL-ING-2018-00001
Price: 190950 GBP
Availability: InStock

£ 190,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used INGERSOLL High Speed Eagle V5 | Machining Centre

Show in original language

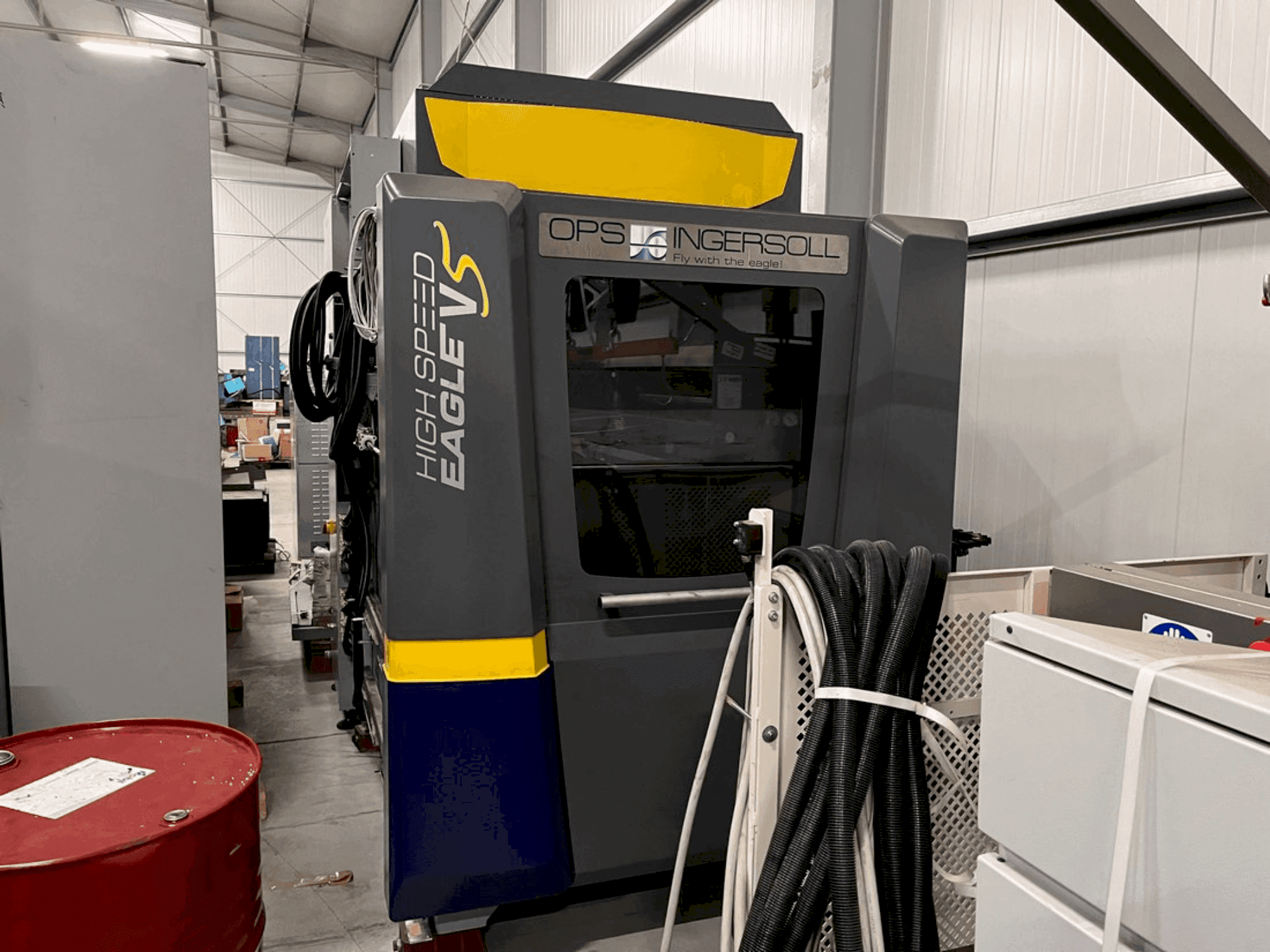

This 5-axis INGERSOLL High Speed Eagle V5 was manufactured in 2018. It features a Heidenhain TNC 530 control, a 15 kW spindle, and 100 tool slots. With travel dimensions of X: 550mm, Y: 850mm, and Z: 450mm, this vertical machining centre represents a robust opportunity for precision machining. Only machine is included. Yaskawa robot and other parts of the automation shown in the video not scope of supply. Contact us for further details regarding this vertical machining centre.

Overview

brand: INGERSOLL
year: 2018
MODEL: High Speed Eagle V5
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - INGERSOLL High Speed Eagle V5

General Data

Measurements width: 2800 mm
Measurements depth: 2020 mm
Measurements height: 2450 mm
Machine weight: 8200 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 1-42000 rpm 1/MIN
Spindle motor power: 15 kW
Tool taper: HSK E40
Number of axis: 5

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: -120°/+60° MM
C-AXIS Movement: 40 rpm MM

Table

Outer length: 650 MM
Outer width: 500 MM
TSlots size: 5 x 14H12
Number of tslots: 100
Table load: 500 kg

Additional Equipment

- Tool Magazine Capacity: 100 positions

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions: 650 x 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
