➤ Used Index G400 - 2001 - Lathe For sale | gindumac.com

Show in original language

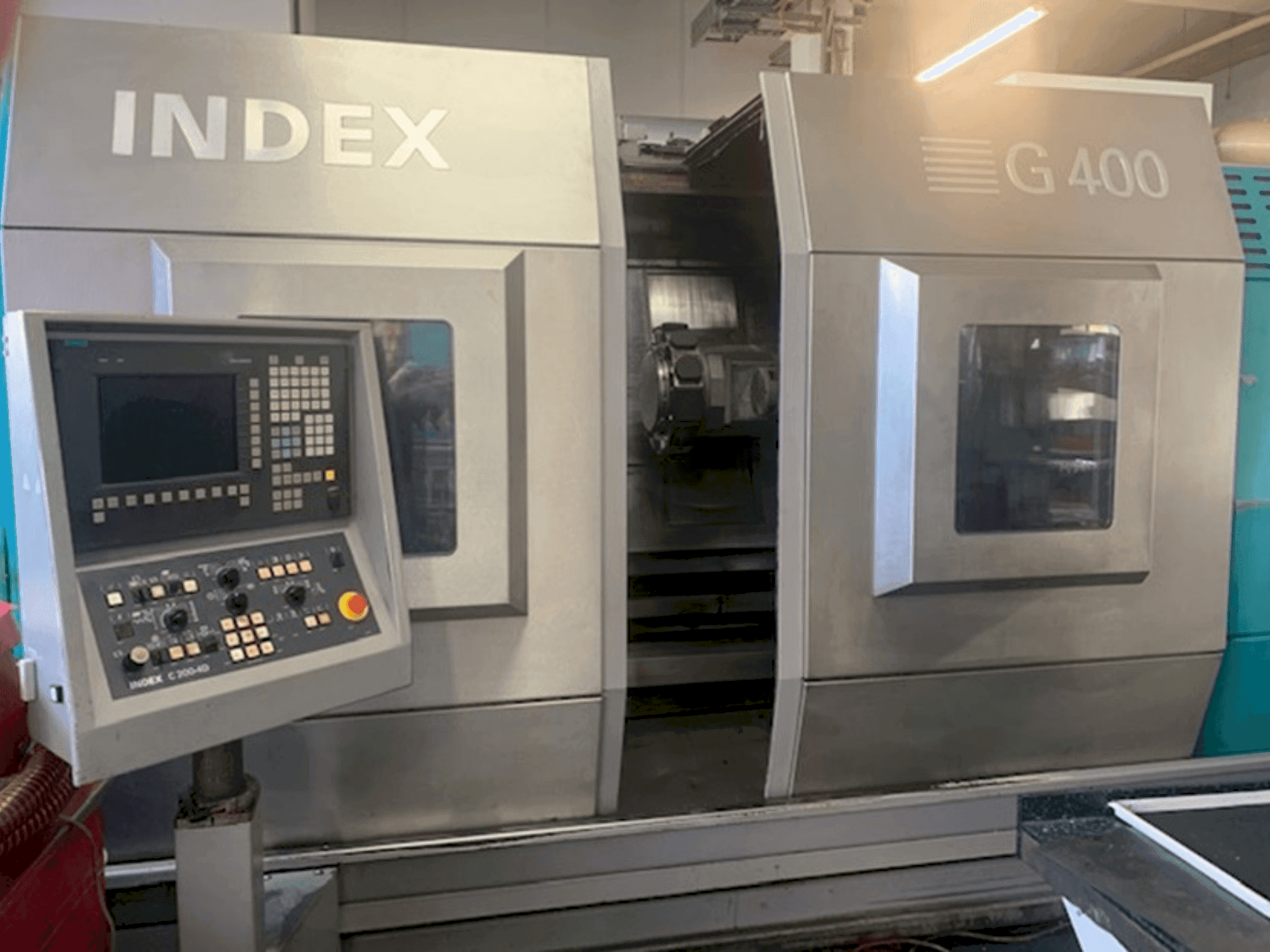

This 4-axis Index G400 lathe was manufactured in 2001. It features a main spindle with a diameter of 102 mm and a gearbox with multiple speed settings, achieving up to 2500 rpm at i=1 and 1000 rpm at i=3. The machine includes a Röhm Duro-NC 400/3 chuck and a turret with 12 positions, plus a disc magazine holding 32 positions. Ideal for high-precision tasks, the Index G400 machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Index
year: 2001
MODEL: G400
application type: Turning
Location: Germany
machine type: Multi-Spindle Turning Machine
availability: Sold

Technical Information - Index G400

General Data

Machine weight: 21000 kg

Main drive

Number of spindles: 3
Spindle speed range: 2500 rpm 1/MIN
Spindle motor power: 47/66 kW
Tool taper: HSK 63A
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 2000 mm

Turret

Number of turrets: 1

Tools

Number of stations: 32

Clamping unit

Clamping force: 10900 kN

Additional Equipment

- Chuck: Röhm Duro-NC 400/3
- Turret: 12 positions
- Satellite milling spindle HSK 63A with IKZ
- Gearbox ratios: Main spindle i=1, i=3; Milling spindle i=4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar diameter: 102 mm
- - Spindle speed range: 2500 rpm (i=1), 1000 rpm (i=3)
- - Spindle speed (milling spindle): 6000 rpm
- - High torque on the main spindle (1350/1950 nm)
- - Robust clamping force (10900 kn)
- - High flexibility with satellite milling spindle and turret
- - The spindle running time is approx. 14700 hours
Qualitative Machine Benefits:
- - Advanced machining capabilities with multiple gear ratios

Extra information

- Machine still under power // Peripheral attachments include the suction unit and an oil separator installed in the coolant system. Seller sells some accessories together with the machine (pictures attached).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
