- ➤ Used IMA BIMA Gx50 E 160/630 CNC Processing Centre For sale

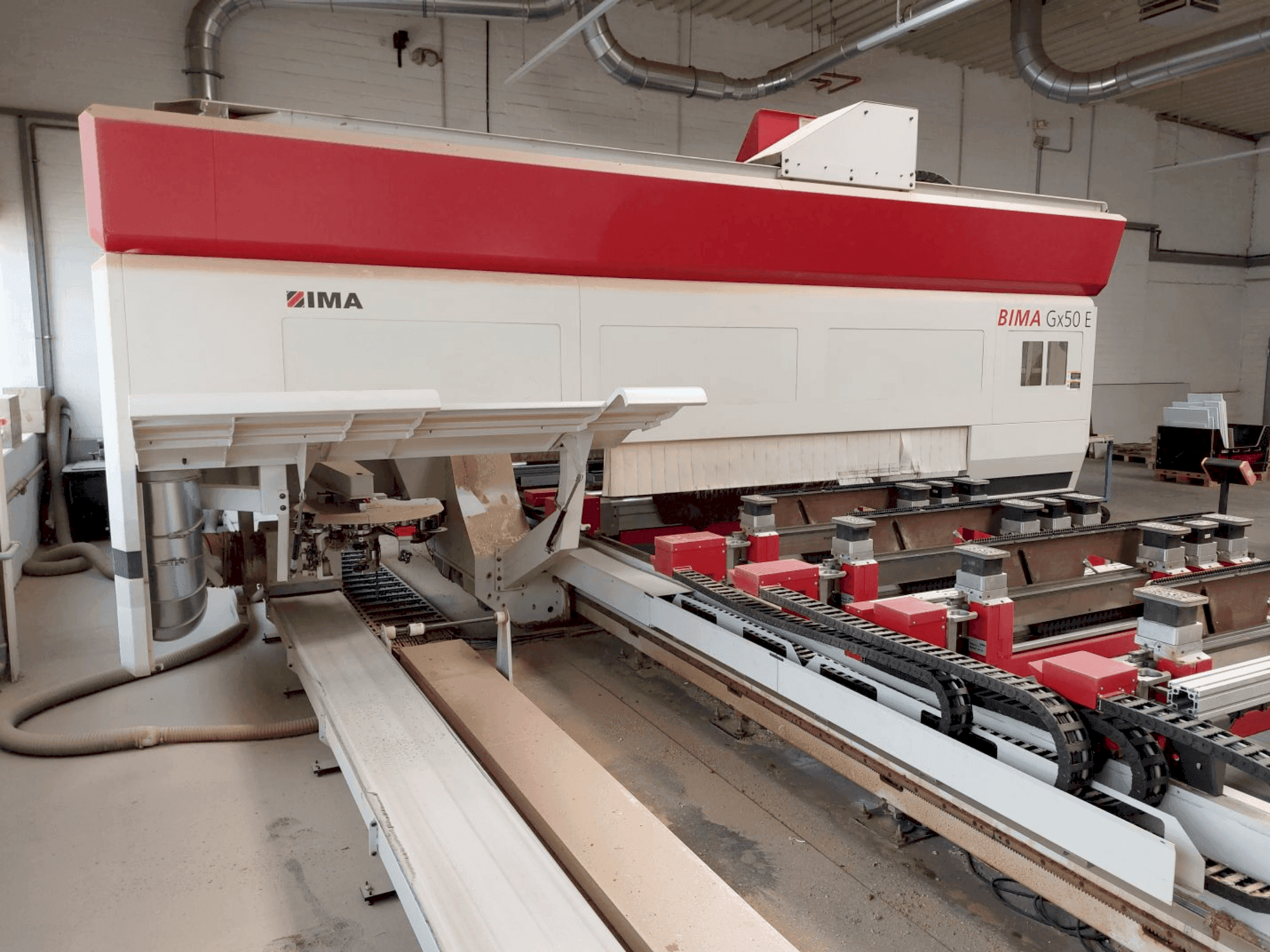

This 3-axis IMA BIMA Gx50 E 160/630 CNC Processing Centre was manufactured in 2014. It features a robust heavy-duty design with a machining area of X=6300 mm, Y=1600 mm, and Z=225 mm. Equipped with an 18 kW main spindle, vertical drilling unit with 21 spindles, and a tool changer magazine with 18 pockets. Ideal for complex woodworking tasks, the IMA control system ensures precision. For more information about this Wood Processing Centre, please reach out to us.
Overview
- brand: IMA
- year: 2014
- MODEL: BIMA Gx50 E 160/630
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
- availability: Immediately
Technical Information - IMA BIMA Gx50 E 160/630
General Data
- Machine weight: 10500 kg
Control Unit
- Model: ICOS CNC
Main drive
- Number of spindles: 1
- Spindle motor power: 18 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 6300 mm
- Y-AXIS Movement: 1600 mm
- Z-AXIS Movement: 225 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - Compressed air via central connection
- - Extraction via central connection
- - Individual extraction units with automatic slide damming
- - Tool/adapter changer magazines on the rear of the support with 18 pockets moving in the X and Y directions
- - Vertical drilling unit with 21 spindles
- - Attachment unit with drilling and routing head
- - Gluing area
- - Edge feeding unit for diode laser
- - Edge thickness measuring device
- - 4-fold roller magazine (traveling in X-direction)
Additional Information
- Technical Machine Benefits:
- - Main spindle with 18 kw power
- - Large machining area allows for handling of big workpieces
- - High spindle power for intensive woodworking tasks
- - Advanced tool changing system enhances productivity
- - Edge thickness: 0. 4 - 3 mm
- - Workpiece thickness: 19 - 60 mm
- - Edge material length at least 350 mm
- Qualitative Machine Benefits:
- - Robust heavy-duty design ensures durability and stability during operation
- - Comprehensive dust and chip management system for a clean working environment
- - Used, not overhauled, without warranty
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
