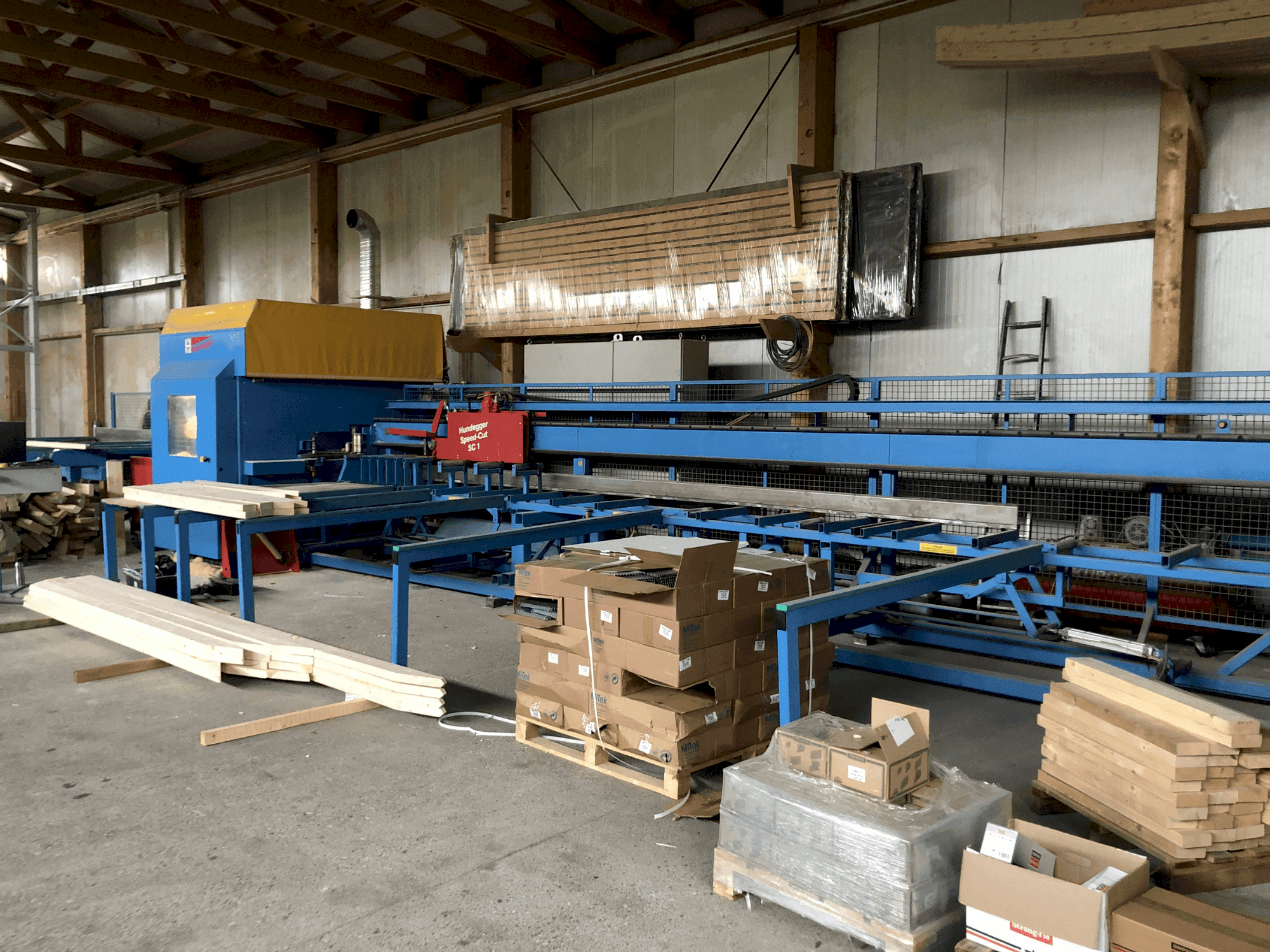

HUNDEGGER - Speed-Cut SC1PL-WOO-HUN-2003-00001

Additional Equipment

• - 6-armed offload table
• - PC + Monitor
• - Electrical connection: 3x 63A, max. 15kW
• - Pneumatic connection 1/2", 9 bar at least 400l/min
• - Main supply line for pneumatics min. 3/4"

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The machine is capable of computerized cutting, drilling, and milling which allows for versatile wood processing.
  • - It offers a high level of automation with programmable saw blade adjustments and a 4 axes cnc control enhancing precision.
  • - Features such as a clamp gripper workpiece feed and pneumatic clamping system ensure efficient and secure handling of materials.
  • - Max cutting height at 90°: 160 mm // max cutting width at 90°: 450 mm
  • - Capable of processing dimensions from 12 x 40 mm to 160 x 450 mm
  • - Number of saw blades: 1
  • - Saw blade tiltable: yes // saw blade adjustment: programmable controller
  • - Workpiece feed: clamp gripper
  • - Clamping system: pneumatic
  • - Positioning accuracy: +/- 0. 5 mm
• Qualitative Machine Benefits:
  • - The machine's robust construction and high positioning accuracy of +/- 0. 5 mm ensure high-quality results and precision in woodworking.
  • - Basic machine with saw station for 90° cross-cut operation
  • - Angle and tilt drive for the saw station
  • - 4-strand transverse feeder
  • - Combination support for vertically operating tools
  • - Drilling unit 2. 2 kw
  • - Vertical milling unit 5. 5 kw
  • - Revolver milling unit 3-fold
  • - Marking device below

Extra information

• - Machine is currently under power and operational.

Payment Terms

• Payment in advance

• Asset Financing
