➤ Used Hyundai Wia KF4600 - Vertical Machining Center

Show in original language

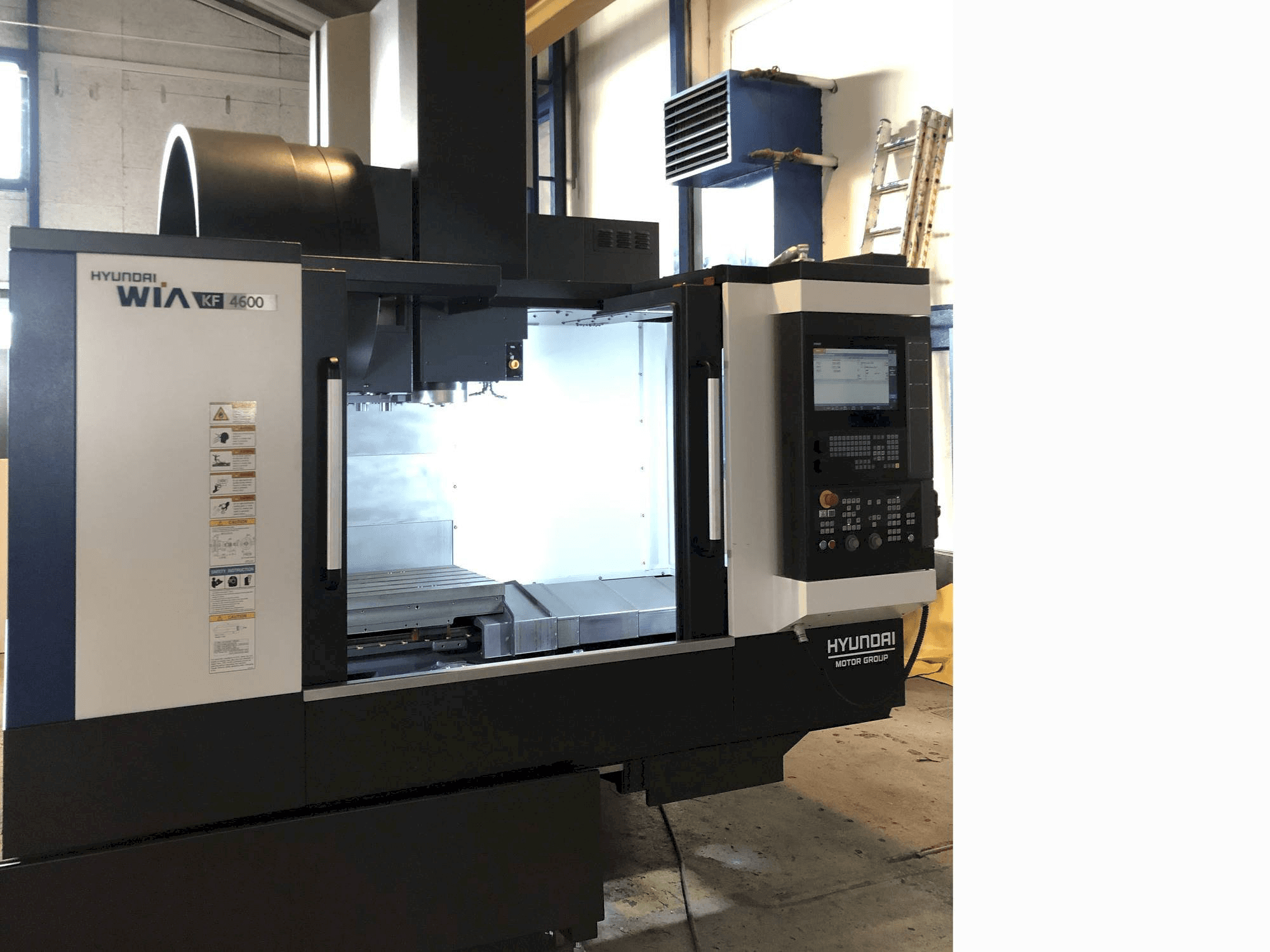

This Hyundai Wia KF4600 Vertical Machining Center was built in Korea in the year 2018. It is equipped with a SIEMENS Sinumerik 828D control unit. This 3 axis machine can works with a spindle speed up to 12000 rpm.

Overview

brand: Hyundai Wia
year: 2018
MODEL: KF4600
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Hyundai Wia KF4600

General Data

Measurements width: 2805 mm
Measurements depth: 2180 mm
Measurements height: 3026 mm
Machine weight: 6000 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18,5/11 kW
Tool taper: BBT40
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 460 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece weight: 8 kg

Table

Outer length: 1050 mm
Outer width: 460 mm
Table load: 600 kg

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tools in magazine 30 pieces
- - Max workpiece diameter 80 mm
- - Max tool length 300 mm
- - Tool change time (tool to tool) 1. 4 sec.
- - Tool change time (chip to chip) 3. 2
- - 20 bar internal coolant pressure

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
