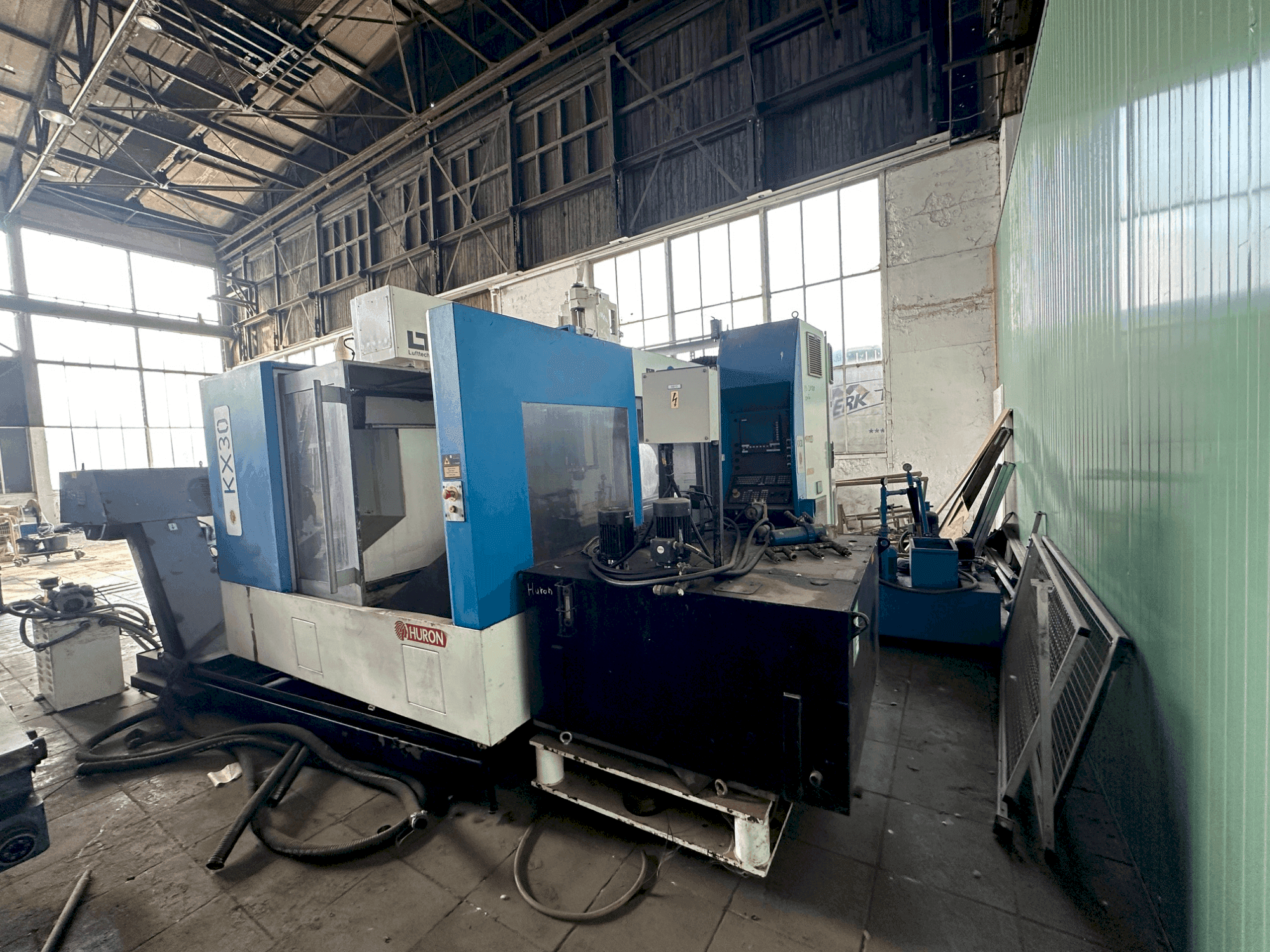

This 3-axis Huron KX30 vertical machining centre was manufactured in 2001. It features a ribbed cast structure for high rigidity and excellent vibration damping during demanding cutting processes. It includes a high-speed spindle up to 42,000 RPM and a large table size of 2000 x 1000 mm, supporting loads up to 2.5 tons. Accessories include an IRODEX chip conveyor and a separate vacuum clamping table. Reach out for further details regarding this vertical machining centre.
Overview
- brand: Huron
- year: 2001
- MODEL: KX30
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - Huron KX30
General Data
- Measurements width: 6420 mm
- Measurements depth: 5770 mm
- Measurements height: 3430 mm
- Machine weight: 17000 kg
Control Unit
- Brand: SIEMENS
Main drive
- Spindle speed range: 42000 rpm 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1800 mm
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 1000 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 18 m/min
Table
- Table load: 2500 kg
Tools
- Max weight: 10 kg
- Max tool diameter: 100 mm
- Max tool length: 300 mm
Additional Equipment
- - LTA extraction unit
- - Belt filter
- - Cooling unit
- - IRODEX chip conveyor
- - Separate vacuum clamping table approx. 1500x1000 mm
- - Refrigeration dryer DONALDSON SD0080AP-CV, with pressure vessel
Additional Information
- Technical Machine Benefits:
- - Ribbed cast structure with excellent mechanical properties and high rigidity
- - Excellent damping of vibrations during demanding cutting processes
- - Floor anchoring for long-term high geometric stability and precision
- - Total power requirement: 30 kw
- - Table size: 2000 x 1000 mm
- Qualitative Machine Benefits:
- - First-class quality surfaces, especially in the 3d production of molds/forgings and tools
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
