Huron kx10 Vertical Machining Center

Show in original language

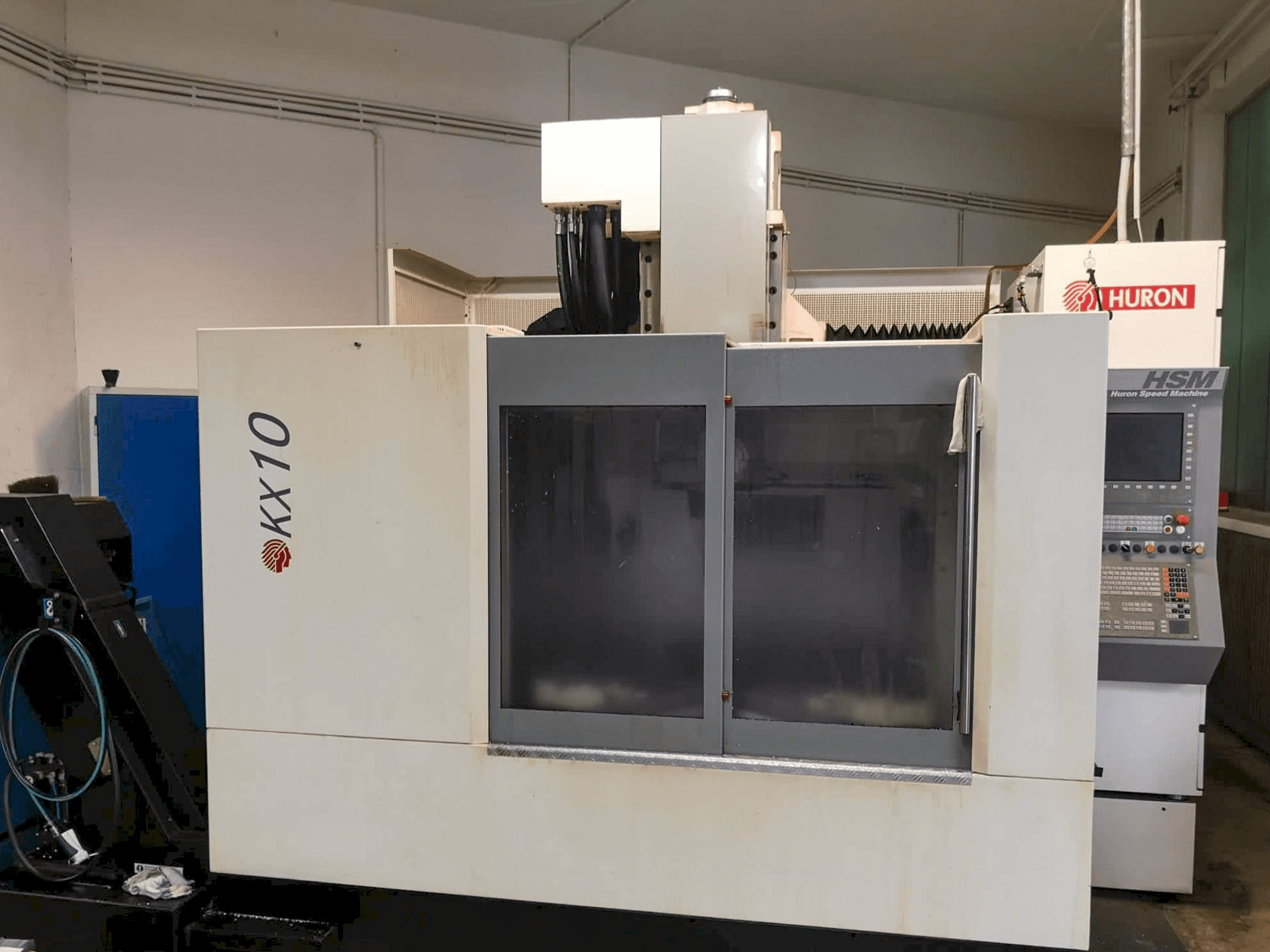

This Huron kx10 Vertical Machining Center was manufactured in 2012. It shows a production record of 17907 hours. This 3 axis machine is operated through a HEIDENHAIN iTNC530 control unit. The machine works with a spindle speed range between 100 - 18000 rpm. The chip cover in the table front and rear was redone for around 8,500€ about 10 months ago.

Overview

brand: Huron
year: 2012
MODEL: kx10
production hours: 17907
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Huron kx10

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 100 - 18000 1/MIN
Spindle motor power: 25 kW
Tool taper: HSK 63 A
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 18000 mm/min

Table

Outer length: 1250 mm
Outer width: 700 mm

Media

Main electronic connection: 400 V / 50 Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Full fairing
- - Tool changer: 20 stations
- - Lp cooling through 3 nozzles: -30 l/mn
- - Flushing gun
- - Ethernet interface (cabling, installation and configuration of the network and the additional software)
- - Instruction manual in german on cd
- - Complete tool changer reworked by huron
Qualitative Machine Benefits:
- - In 2020 the front and rear chip telescopic covers were renewed
- - The spindle has a stroke and has to be replaced over the long term
- - The machine runs perfectly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
