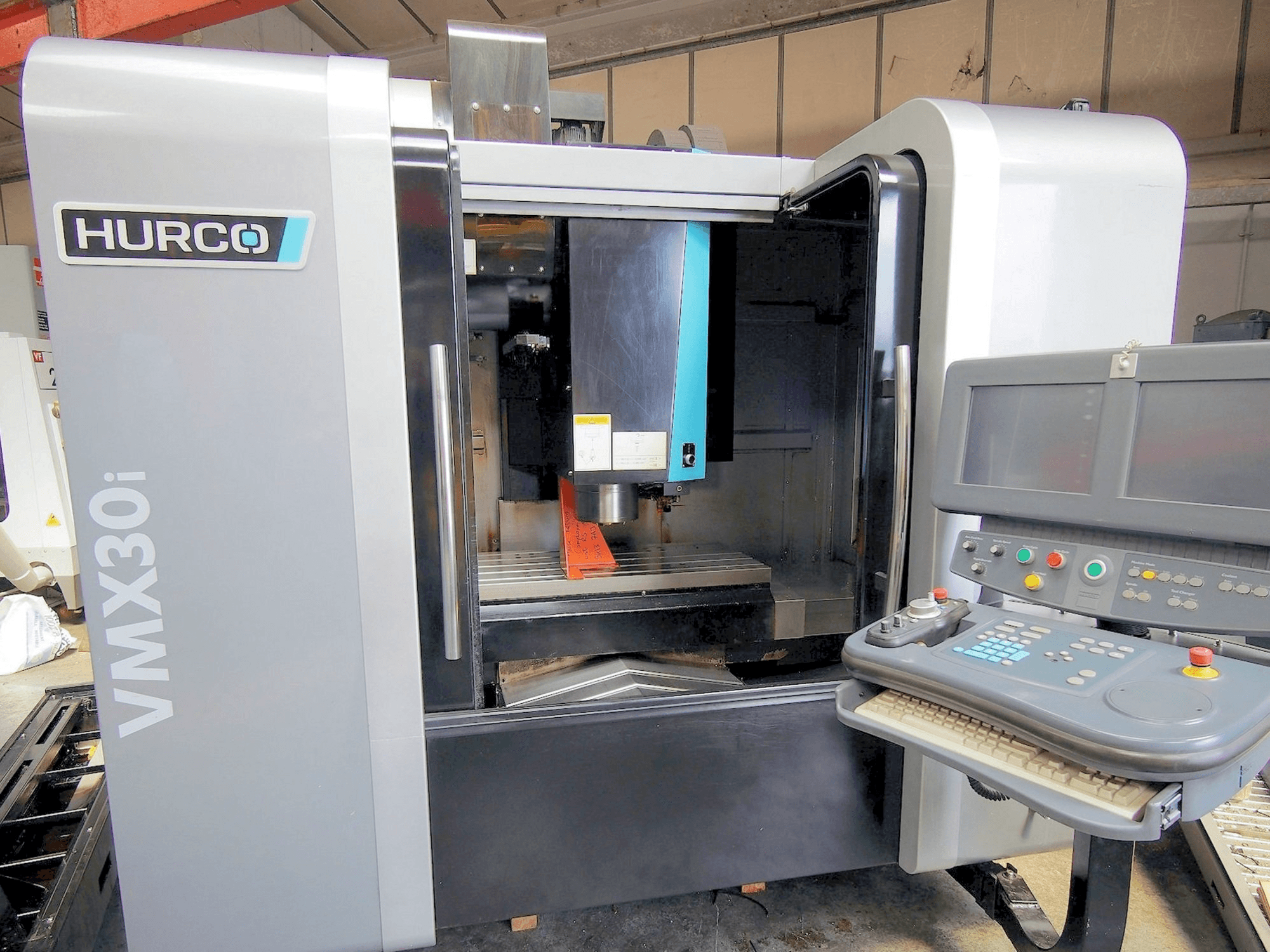

Hurco VMX 30i Vertical Machining Center

Show in original language

This Hurco VMX 30i Vertical Machining Center was built in 2013 in Taiwan. Equipped with a Hurco WinMax Control unit, this machine operates with a spindle speed up to 12000 rpm.

Overview

brand: Hurco
year: 2013
MODEL: VMX 30i
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 30i

General Data

Measurements width: 3939 mm
Measurements depth: 4039 mm
Measurements height: 2724 mm
Machine weight: 5000 kg

Control Unit

Model: WinMax
CNC main language: English
CNC language customizable: Yes
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 13.5 kW

Movement

X-AXIS Movement: 760 mm
X-AXIS Working Feed: 38 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Working Feed: 38 m/min
Z-AXIS Movement: 610 mm
Z-AXIS Working Feed: 32 m/min

Workpiece

Workpiece weight: 1360 kg

Table

Outer length: 1020 mm
Outer width: 510 mm

Tools

Slots in storage: 30
Type of tool holder: SK 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 150-760 mm
- - Interlocked guards
- - Coolant
- - Low volt light
- - Usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
