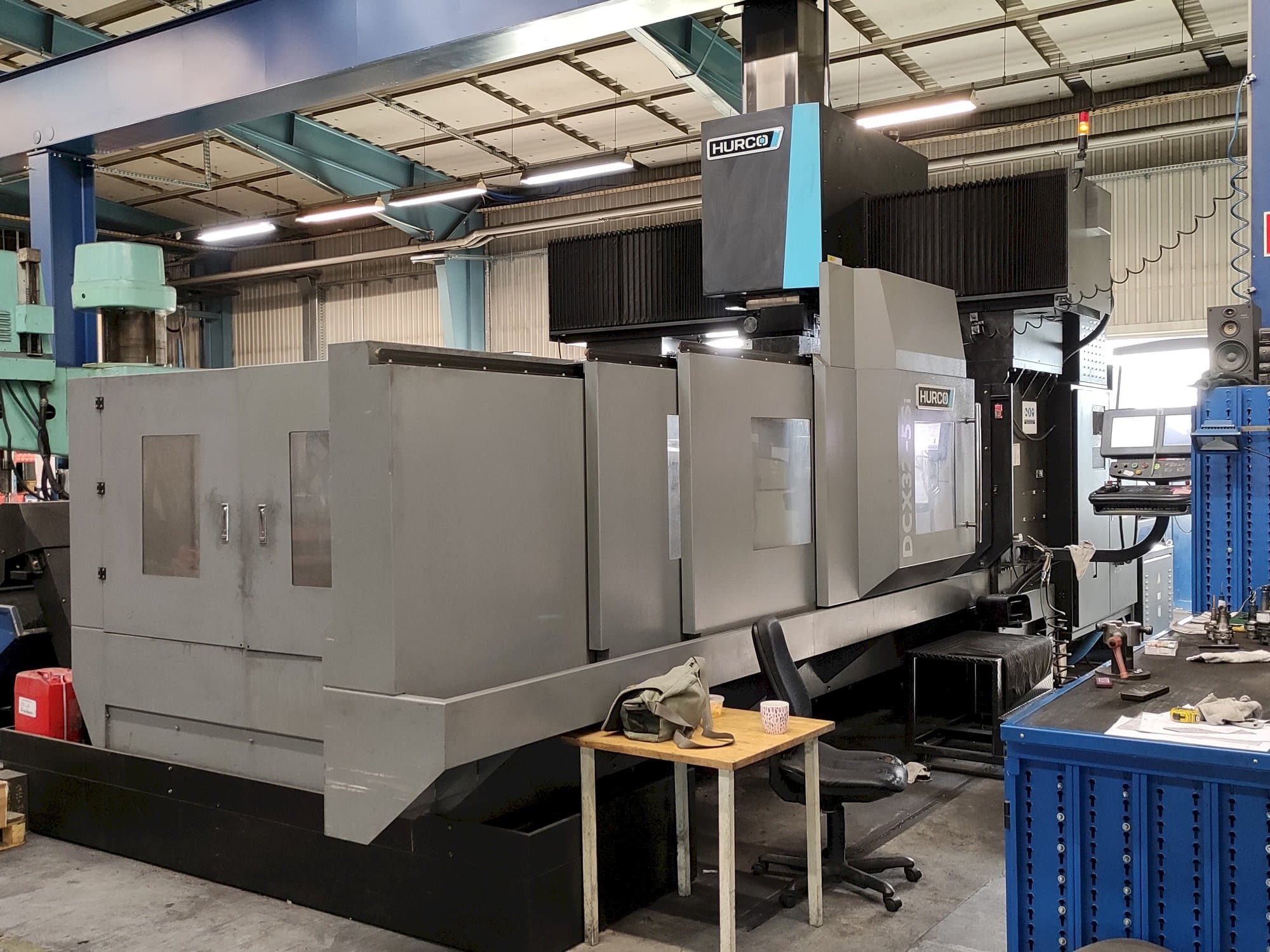

This Hurco DCX32-5Si Dual Column 5 Axis Universal Machining Center was manufactured in 2015 in Taiwan. It has 20554 working hours. This machine is equipped with a control unit of the same brand. It operates with a spindle speed of 18000 rpm. This machine includes a part tool probing. It is in very good working condition and ready for tests. This machine is still in production and comes with its full documentation.

Overview

brand: Hurco
year: 2015
MODEL: DCX32-5Si
production hours: 20554
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco DCX32-5Si

General Data

Measurements width: 8229 MM
Measurements depth: 4410 MM
Measurements height: 6364 mm
Machine weight: 37000 KG

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 54 KW
Tool taper: HSK 63 A
Number of axis: 5

Movement

X-AXIS Movement: 3200 MM
Y-AXIS Movement: 2000 MM
Z-AXIS Movement: 900 mm

Table

Min distance between vertical spindle and table: 65 MM
Max distance between vertical spindle and table: 965 mm
Table load: 11000 kg

Tools

Number of stations: 40 pcs
Max weight: 7 kg
Max tool diameter: 75-120 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 138 kVA

Additional Equipment

- part tool probing

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travels axis (b/c) : ±105 deg / ±185 deg
- - Working surface / rotary diameter : 3000 x 1700 mm
- - Spindle torque 85 nm
- - Automatic tool changer (atc); atc time (tool to tool ): 5 sek
- - Working feed: 15000 mm/min
Qualitative Machine Benefits:
- - Machine in very good working condition and ready for tests.
- - It is still at the production.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
