- Hurco BMC4020 Vertical Machining center

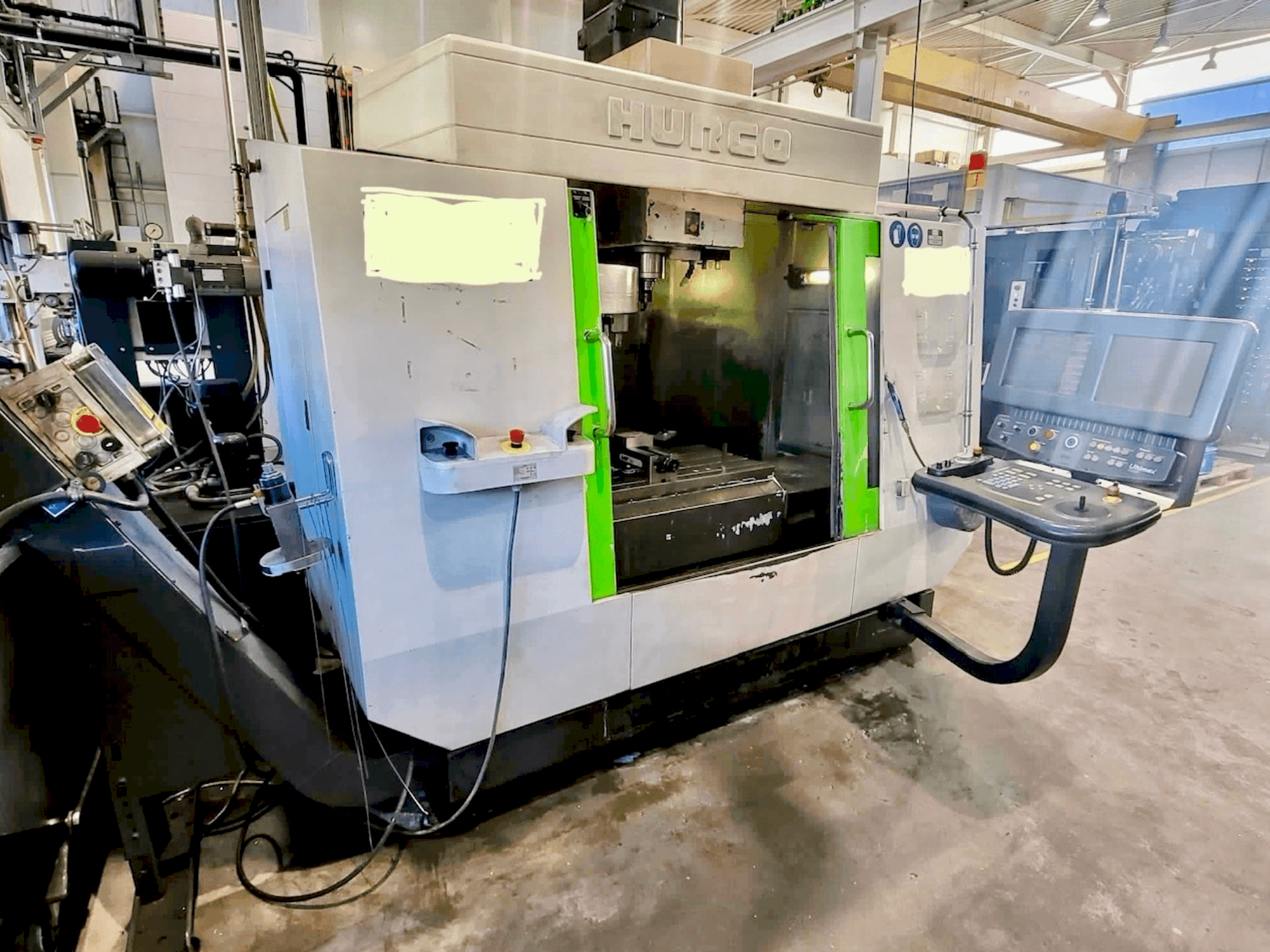

This Hurco BMC4020 Vertical Machining center was manufactured in the year 1998 in Taiwan. It is equipped with a Hurco Ultimax control unit and has 3 axis.
Overview
- brand: Hurco
- year: 1998
- MODEL: BCM4020
- application type: Milling
- Location: Austria
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Hurco
Technical Information - Hurco BCM4020
General Data
- Measurements width: 2320 mm
- Measurements depth: 3350 mm
- Measurements height: 2670 mm
- Machine weight: 5600 kg
Control Unit
- Brand: Hurco
- Model: Ultimax
Main drive
- Spindle motor power: 15 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1020 mm
- Y-AXIS Movement: 510 mm
- Z-AXIS Movement: 610 mm
Workpiece
- Workpiece weight: 682 kg
Table
- Outer length: 1220 mm
- Outer width: 510 mm
Tools
- Max weight: 7 kg
- Type of tool holder: ISO 40
Additional Information
- - Accessories: cooling lubricant tank, pumps for the external and internal pumps and pump for cooling lubricant recirculation Length of the worktable: 1220 mm Width of the worktable: 510 mm Travel of the X-axis: 1020 mm Travel of the Y-axis: 510 mm Travel of the Z-axis: 610 mm Spindle power: 15 kW Maximum workpiece weight: 682 kg Max. Tool weight: 7 kg Machine height: 2670 mm Machine length: 3350 mm Machine width: 2320 mm Machine weight: 5600 kg Control system: Hurco Ultimax Tool holder: ISO40
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
