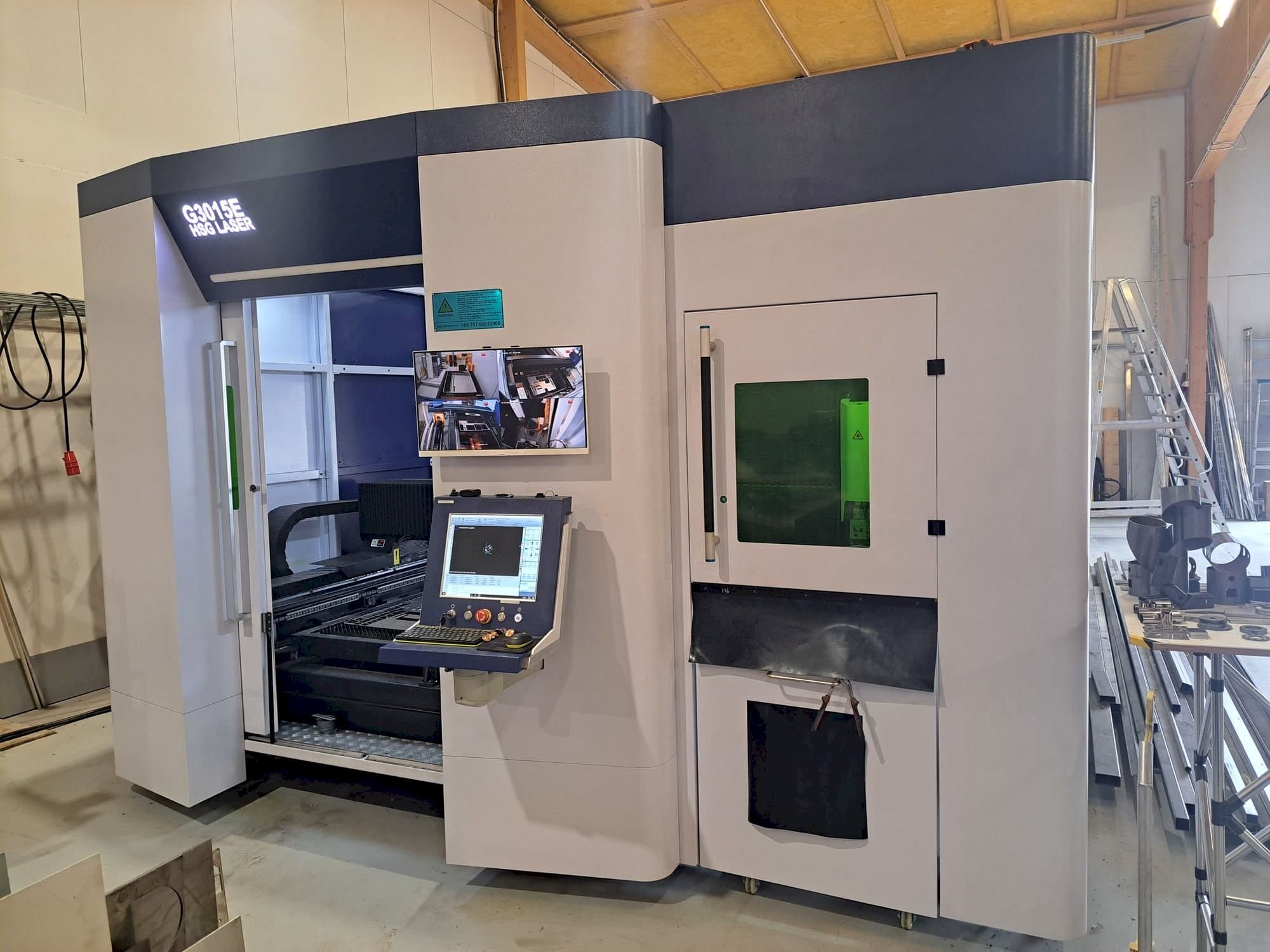

- HSG G3015E-22EQ FIBER Laser and Tube Cutting machine
This HSG G3015E-22EQ FIBER Laser and Tube Cutting machine was manufactured in the year 2020 in China and has 15 cutting hours. The machine has a laser power of 4,0 kW. It comes with IPG laser and PRECITEC cutting head.
Overview
- brand: HSG
- year: 2020
- MODEL: G3015E-22EQ
- production hours: 15
- application type: Cutting
- Location: Finland
- machine type: Fiber Laser Cutting Machine
- availability: Sold
Technical Information - HSG G3015E-22EQ
General Data
- Measurements width: 3900 mm
- Measurements depth: 10200 mm
- Measurements height: 2650 mm
- Machine weight: 9900 kg
Main drive
- Laserpower: 4,0 kW
Movement
- X-AXIS Movement: 1525 mm
- Y-AXIS Movement: 3025 mm
- Z-AXIS Movement: 270 mm
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Additional Equipment
- - IPG laser
- - PRECITEC cutting head
Additional Information
- Technical Machine Benefits:
- - Tubes diam. 20-220mm/6000mm.
- - Panasonic servo system, cypcut control/nesting software
- - Incl. Offline nesting for tubes and sheets for pc
- - Showroom machine
- - Cooling unit, dust collector
- - Actual working cutting data installed
- - Cuts carbon steel, stainless steel, aluminium, copper, brass titan etc
- - Ipg laser and precitec cutting head
- Qualitative Machine Benefits:
- - High efficient production capacity with fiber laser
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
