HERMLE - U1130AT-MIL-HER-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HERMLE U1130 Universal Machining Center

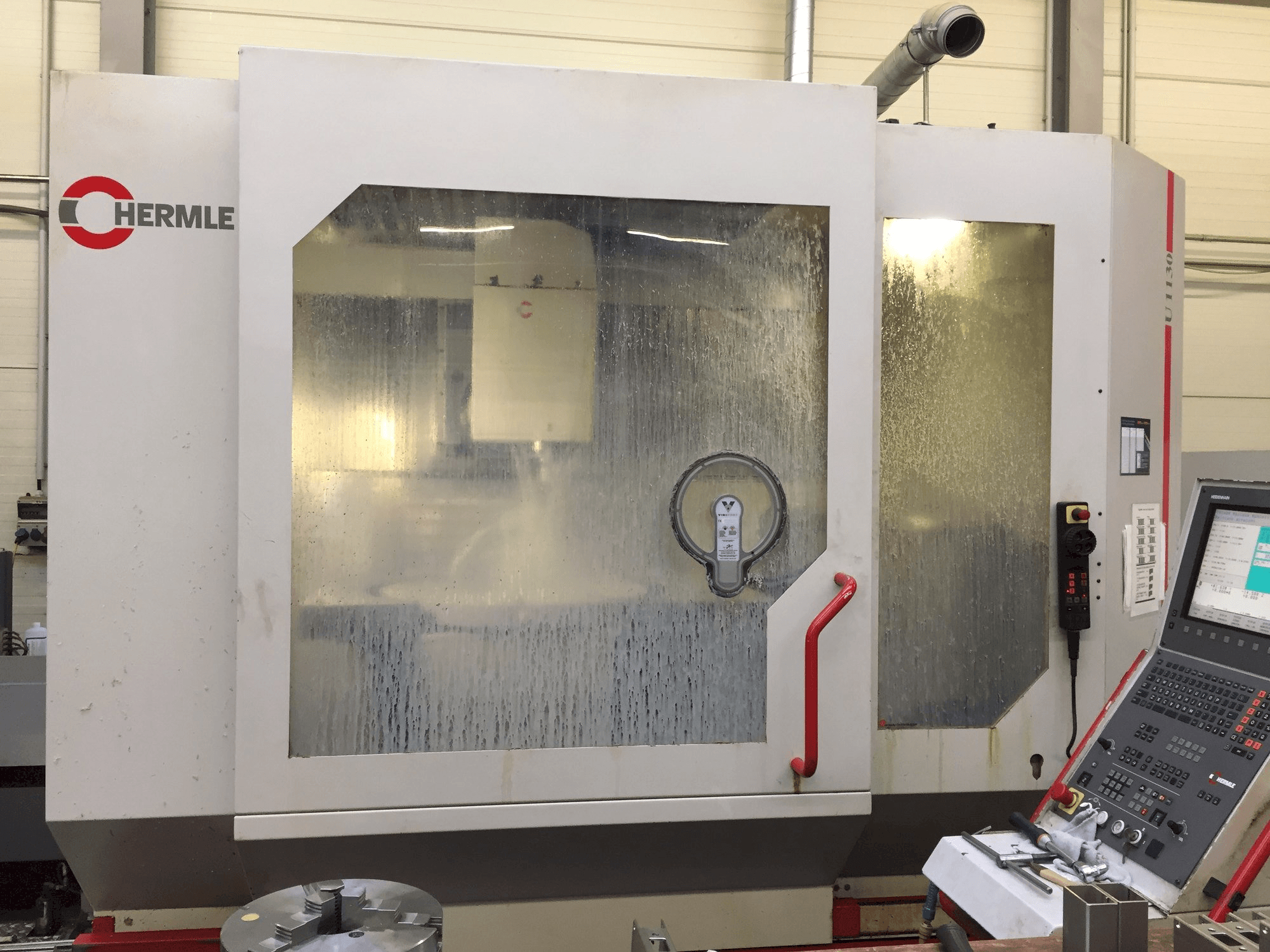

This HERMLE U1130 Universal Machining Center was made in 2004 in Germany and has been working for 35577 hours, from which only 8087 are spindle hours. Equipped with a Heidenhain TNC 520 Control unit, this machine stands out for incorporating 5 axes and an NC round table. It presents perfectly good conditions.
Overview
- brand: HERMLE
- year: 2004
- MODEL: U1130
- production hours: 35577
- application type: Milling
- Location: Austria
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - HERMLE U1130
General Data
- Machine weight: 8500 kg
Control Unit
- Model: TNC520
- CNC main language: German
- CNC language customizable: Yes
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 1300 mm
- Y-AXIS Movement: 720 mm
- Z-AXIS Movement: 630 mm
Workpiece
- Workpiece weight: 700 kg
Table
- Outer length: 700 mm
- Outer width: 720 mm
Tools
- Slots in storage: 28
- Max weight: 8 kg
- Max tool diameter: 80/125 mm
- Max tool length: 300 mm
- Type of tool holder: HSK63A
Media
- Main electronic connection: 400 V
- Power consumption: 32 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Material type: Steel
- Technical Machine Benefits:
- - Internal cooling 40 bar
- - Integrated nc round table
- - Blum laser measuring
- Qualitative Machine Benefits:
- - Very good conditions
- - Spindle working hours 8087
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
