➤ Used HERMLE U 630 T For sale | gindumac.com

Show in original language

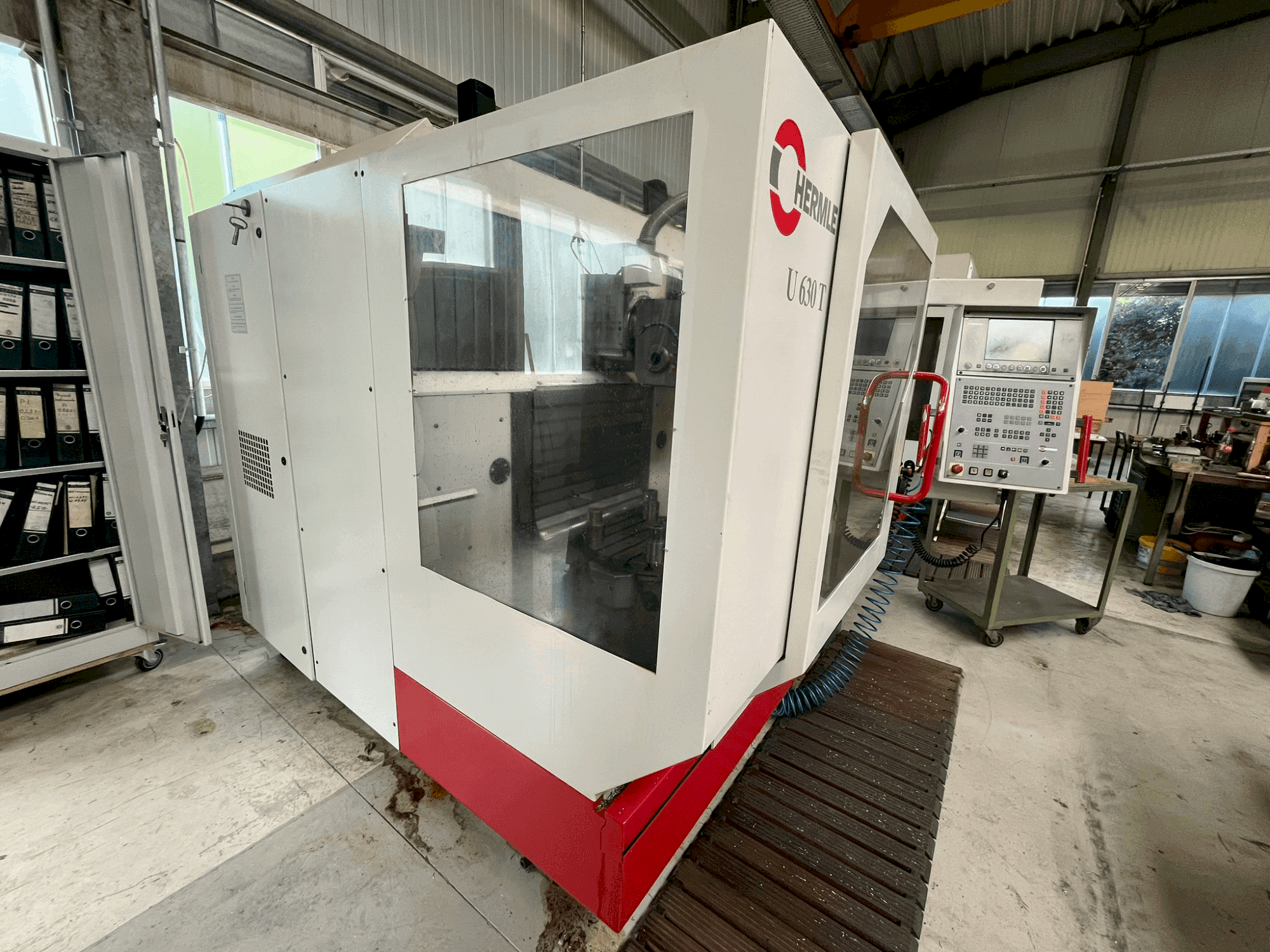

This 4-axis Hermle U 630 T vertical machining center was manufactured in 2000. It features a 16-position tool changer and SK40 tool holder, controlled by a HEIDENHAIN TNC410 system. Weighing 4,800 kg, this machine offers robust performance for precision machining. Consider the opportunity to buy this Hermle U 630 T vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: HERMLE
year: 2000
MODEL: U 630 T
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - HERMLE U 630 T

General Data

Machine weight: 4800 kg

Control Unit

Model: TNC410
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-7000 rpm 1/MIN
Tool taper: SK40
Number of axis: 4

Movement

X-AXIS Movement: 875 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 500 MM

Table

Table load: 300kg

Additional Equipment

- Number of Tools: 16-position tool changer
- Torque 390Nm
- Feed force 8000 N
- Tank capacity 120 litres
- delivery rate 24l/min
- max. speed of the table 11 1/min
- swivelling and rotating movement 3000 Nm
- Quill stroke 75mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Versatile tool options with a 16-position tool changer.
- - Standard taper size sk40 for tool compatibility.
- - Enhanced machining capabilities with 4-axis operation.
- - Rapid traverse 15 m/min
- - Magazine places 16
- - Tool diameter 80mm
- - Max. Tool length 250mm / max. Tool weight 6kg
Qualitative Machine Benefits:
- - Precision control with the heidenhain tnc410 for accurate machining.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
