HERMLE - RS1 Robot SystemDE-MIL-HER-2009-00003
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- HERMLE RS1 Robot System

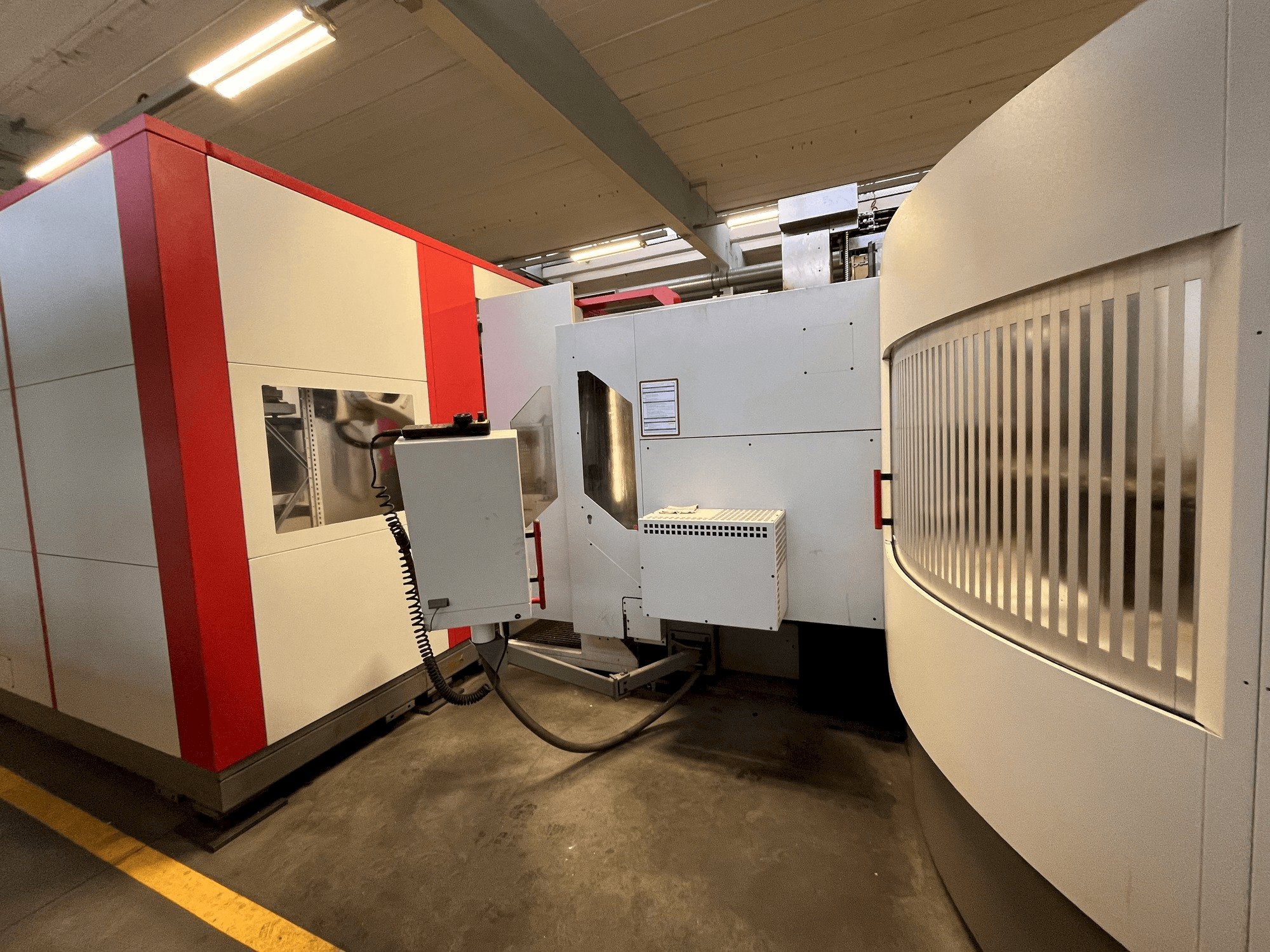

This HERMLE RS1 Robot System of 2 units Hermle C30 U, 5 axis vertical machine center made in the year 2009 and 2008 are equipped with a HEIDENHAIN iTNC 530 control unit and has a spindle speed of 18000 rpm. The system comes with an Automation KUKA KR 150-2 2000 Robot built in 2008 that has 6 axes with a maximum pallet weight of 140 kg.
Overview
- brand: HERMLE
- year: 2009
- MODEL: RS1 Robot System
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - HERMLE RS1 Robot System
Control Unit
- Brand: HEIDENHAIN
- Model: ITNC 530
Main drive
- Spindle speed range: 18000 1/MIN
- Tool taper: HSK A63
- Number of axis: 5
Movement
- X-AXIS Movement: 650 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 500 mm
- A-AXIS Movement: +/- 115 º MM
Tools
- Slots in storage: 32
- Max weight: 8 kg
- Max tool diameter: 300 mm
Additional Equipment
- - the cell comes with 25 pallets without vise 1 pallet on each machine and 23 on the automation
- - come with Renishaw touch-probe
- - Chip conveyor is included
- - The inner coolant high pressure pump is not included
Additional Information
- Technical Machine Benefits:
- - Rapid feed: 45000 mm/min - nc swivel rotary table diameter 280
- - With erowa clamping system 160 mm throat dimension - mts base plate 320p/a 2-f. MediaÜ. 2-fold
- - Rotary table - ikz - chip sorter
- - Compressed air supply spindle center - automatic cabin door - status light
- - Bed winding - manual cabin roof - losma extraction system
- - Electronic handwheel - hinged belt conveyor - place additional magazine: 157
- - Tool magazine: 157 slots, 6 fold feed through, automatic door, temperature compensation
- - Number of loading and unloading bays: 8
- - Tool measurement: blum wz breakage/measurement a1
- - Touch probe: 2x renishaw omp 40-2ls, plc extension 2nd measuring probe
- Qualitative Machine Benefits:
- - Robot kuka kr 150-2 2000:
- - 6 axis, weight: 1267 kg, master computer that runs on windows 10, and soflex pcs run on windows xp. Pallet rack 300x300 with 24 places - 22 of which are pallets in the rack, 3 of which are power clamping blocks for clamping automatic clamps.
- - 2 cubic, 1x cylindrical - 1x manual clamping block
- - Pallet rack 400x400 with 18 spaces - of which 17 pallets are in the rack
- - Raw material storage locations:
- - 2x raw material storage areas for cubic parts, 60 spaces available per storage area. Raw material with the dimensions 50x15 can be loaded. - 2x raw material trays for cylindrical parts, 56 places available per tray. Parts with a 6mm spigot can be loaded.
- - 2x additional gripper: 1x for cylindrical, 1x for cubic parts
- - Kuka with 6 axes with a maximum pallet weight of 140 kg - kuka manual control unit raw material loading via external set-up station
- - Soflex order management version 4. 27
- - Master computer runs on windows 10, soflex pcs runs on windows xp
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
