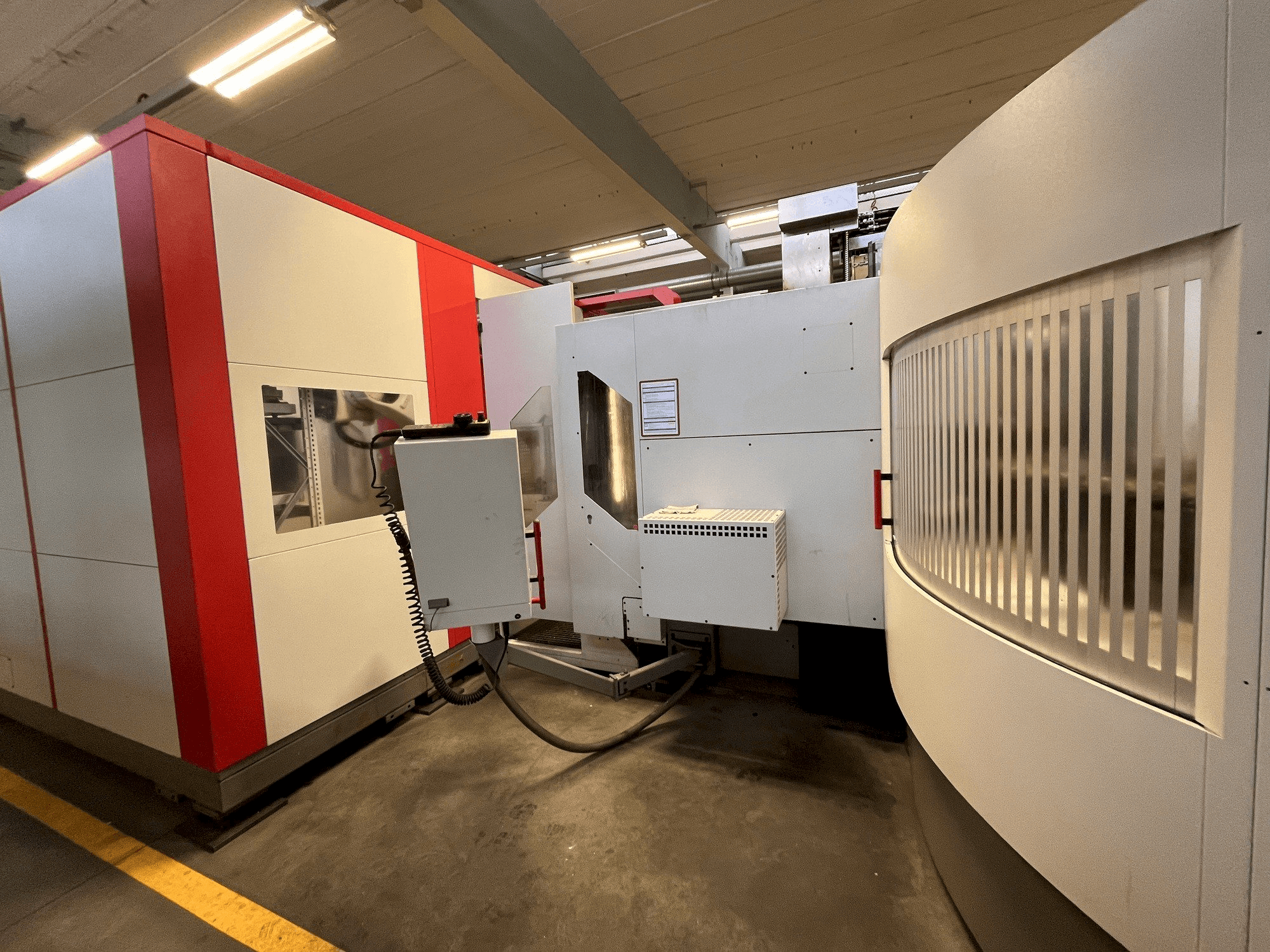

HERMLE C30 U Vertical Machining center

Show in original language

This HERMLE C30 U Vertical Machining Center was manufactured in the year 2009. It is equipped with a Heidenhain iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. 2 units are available.

Overview

brand: HERMLE
year: 2009
MODEL: C30 U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C30 U

General Data

Measurements width: 3154 mm
Measurements depth: 2214 MM
Measurements height: 2722 mm
Machine weight: 9500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK A63
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: +/- 115 º MM
B-AXIS Movement: 360° MM

Tools

Max weight: 8 kg
Max tool diameter: 300 mm
Max tool length: 125 mm
Type of tool holder: HSK A63

Additional Equipment

- come with Renishaw touch-probe
- 1 pallet
- Chip conveyor is included
- The inner coolant high pressure pump is not included
- The robot is not included in the price

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feed: 45000 mm/min
- - Nc swivel rotary table diameter 280
- - With erowa clamping system 160 mm throat dimension
- - Mts base plate 320p/a 2-f. Mediaü. 2-fold
- - Rotary table
- - Temperature compensation
- - Touch probe: 2x renishaw omp 40-2ls, plc extension 2nd measuring probe, only 1 included per machine
- - Compressed air supply spindle center
- - Automatic cabin door
- - Status light
Qualitative Machine Benefits:
- - Bed flushing
- - Manual cabin roof
- - Losma extraction system
- - Electronic handwheel
- - Hinged belt conveyor
- - Tool magazine: 157 slots
- - Total tool places: 189
- - Number of loading and unloading bays: 8
- - Tool measurement: blum wz breakage/measurement a1
- - 6 fold feed through

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
