HERMLE - C20UIT-MIL-HER-2008-00001

Name: HERMLE C20U
Brand: HERMLE
SKU: IT-MIL-HER-2008-00001
Price: 57750 GBP
Availability: InStock

£ 57,750

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HERMLE C20U Vertical Machine Center

Show in original language

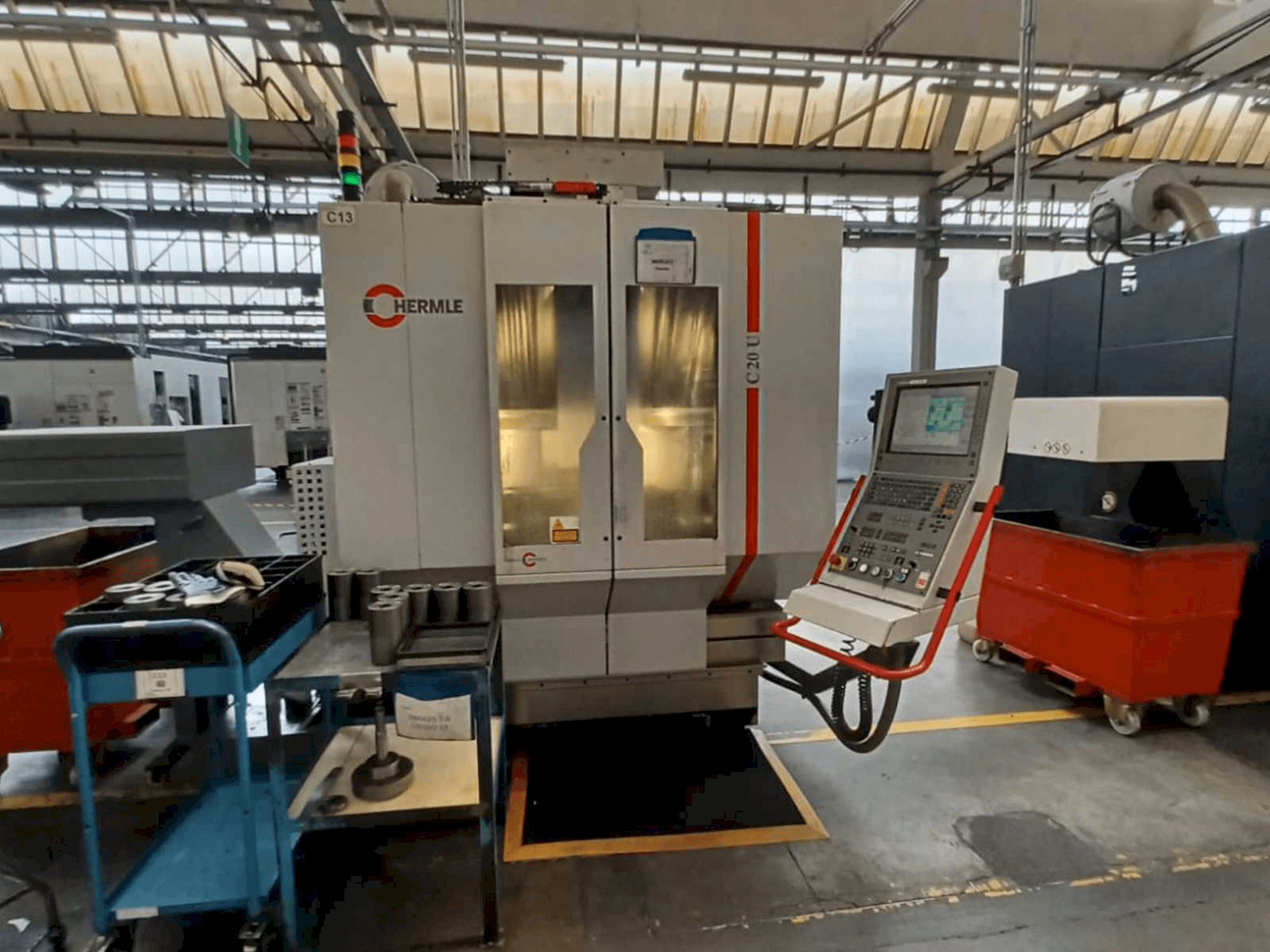

This HERMLE C20U Vertical Machine Center was built in the year 2008. It is equipped with a HEIDENHAIN TNC 530 CNC control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: HERMLE
year: 2008
MODEL: C20U
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - HERMLE C20U

Control Unit

Brand: HEIDENHAIN
Model: TNC 530 CNC

Main drive

Spindle motor power: 15 kw
Spindle bore: 18000
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm
C-AXIS Movement: 360º table rotation MM

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface (spindle) 280 mm
- - Maximum tool capacity 32
- - Spindle connection (spindle) din 69871
- - Renishaw system predisposition
- - Air blow through dry machining spindle: yes
- - 5 axis continuous package: yes
- - Internal cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
