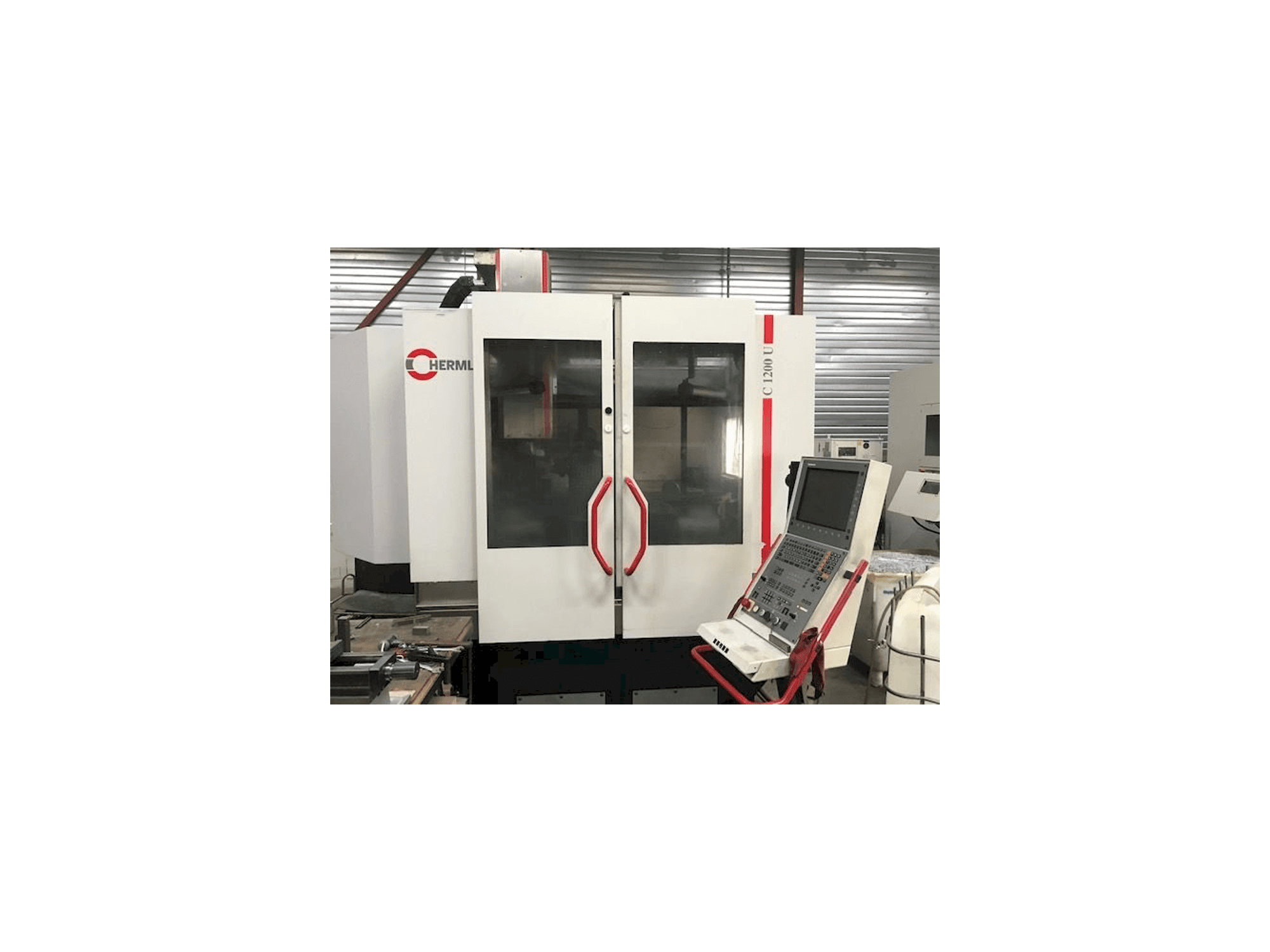

HERMLE C 1200 U Milling machine

Show in original language

This HERMLE C 1200 U Milling machine from 2002 was manufactured in The Netherlands. This machine has been on for 35592 hours, of which 9358 are spindle hours. It is equipped with a HEIDENHAIN Control unit. This 5 axis can work with a spindle speed up to 16000 rpm. Incorporates A axis +15º / -97º, and C Axis 360º.

Overview

brand: HERMLE
year: 2002
MODEL: C 1200 U
production hours: 35592
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 1200 U

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 16000 1/MIN

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Table

Table load: 1000 Kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse in all axes 30 m/min
- - Chip-to-chip time 6. 5 s
- - Nc swivel rotary table
- - Clamping surface: Ø 800 mm
- - Swivel range: +15°/-97°
- - Speed drive power/torque/tool consumption
- - 10000 1/min 25 kw/159 nm (40% ed) / sk 40/hsk a 63
- - 16000* 1/min 15 kw/130 nm (40% ed) / sk 40/hsk a 63
- - 24000* 1/min 23 kw/79 nm (40% ed) / hsk a 63
- - 30 seats
Qualitative Machine Benefits:
- - Internal coolant supply 40 bar
- - Heidenhain measuring probe with radio
- - Electric heat compensation
- - Electronic manual control module
- - Oil mist extraction
- - Chip cleaning gun
- - Blow-off device
- - Sealing air for standards
- - A axis +15º / -97º c axis 360º
- - C axis 360º

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
