➤ Used HELLER MCH 350 For sale | gindumac.com

Show in original language

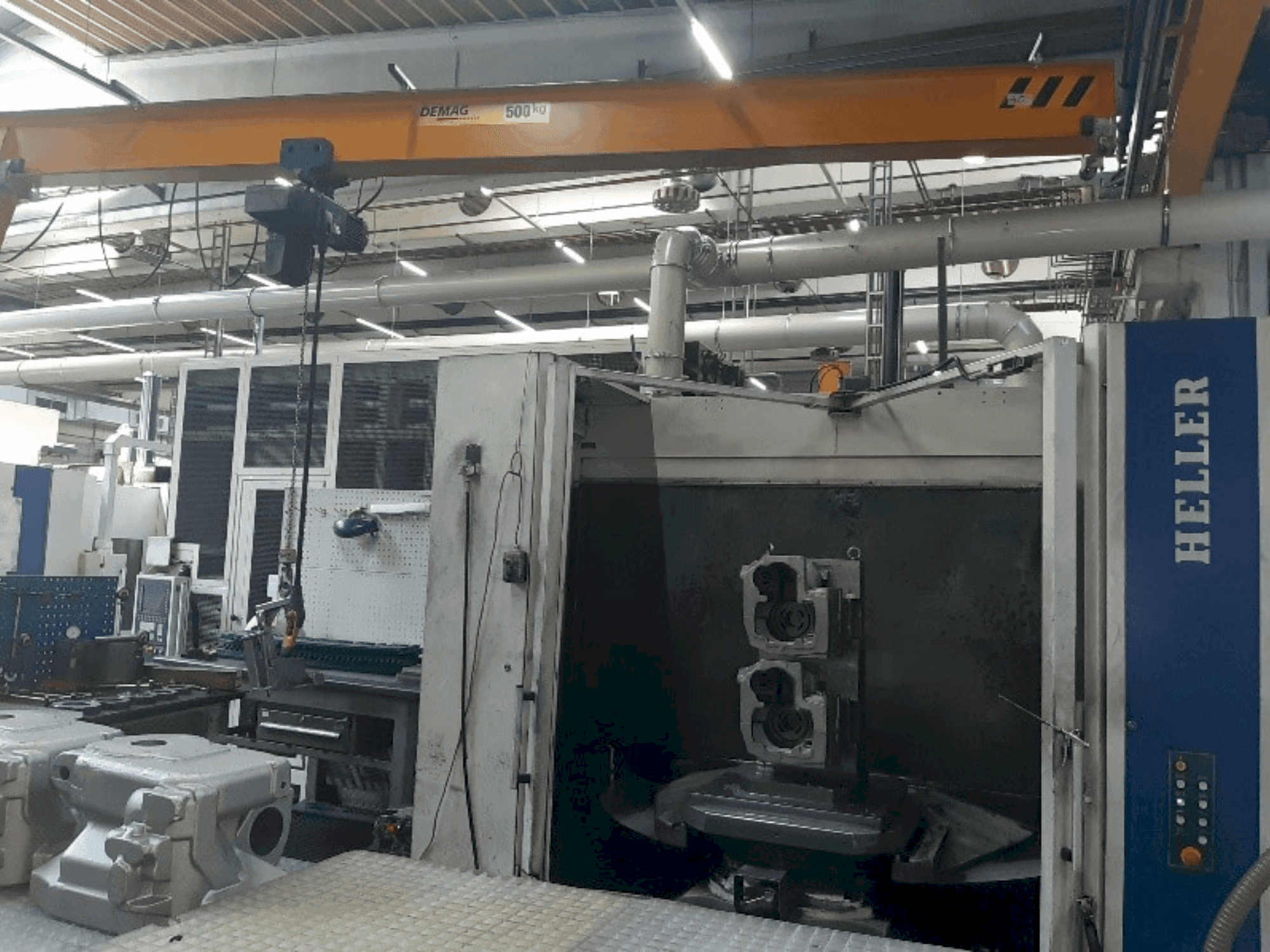

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.

Overview

brand: HELLER
year: 2006
MODEL: MCH 350
production hours: 48659
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - HELLER MCH 350

Control Unit

Model: 840D PL
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 7000 rpm 1/MIN
Spindle motor power: 43 kW
Tool taper: HSK 100
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 800 mm
Outer width: 800 mm
Number of tslots: 234

Media

Internal cooling: Yes

Additional Equipment

- KNOLL Coolant System, VRF 250, IKZ 50 bar
- Rotary table with 360,000° x 0.001° positioning
- Infrared receiver for measuring probe (BLUM)
- Multi-spindle head mount
- Quick drill breakage control (SBBK)
- Code chip for tools runtime and quantity recording
- Integrated process monitoring (IPM)
- Disk blowing device for operator door
- Evacuation strategy

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Internal cooling: yes, 50 bar
- - Control panel at tool insertion point with terminal
- - Workpiece clamping: mechanical
- - High spindle power and torque for heavy-duty machining
- - Advanced rotary table for precise multi-axis positioning
Qualitative Machine Benefits:
- - Comprehensive tool management and monitoring systems enhance precision and efficiency
- - Robust cooling and safety features ensure optimal operation and worker safety

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
