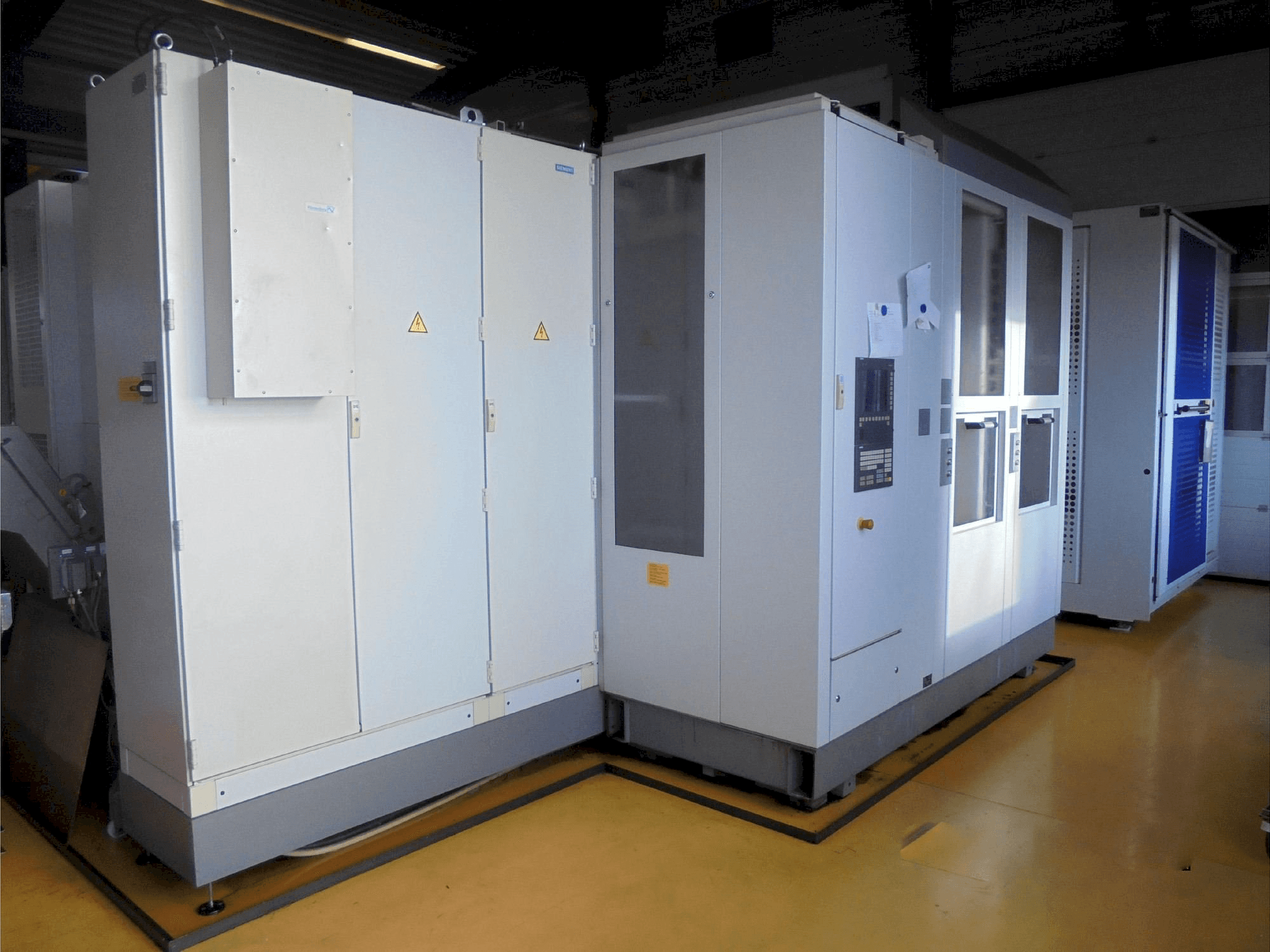

Front view of Heckert HEC500D XXL  machine

Heckert - HEC500D XXLDE-MIL-HEC-2010-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Heckert HEC500D XXL Horizontal Machining center was manufactured in the year 2010. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 15000 rpm.

Overview

  • brand: Heckert
  • year: 2010
  • MODEL: HEC500D XXL
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - Heckert HEC500D XXL

Control Unit

  • Model: Sinumerik 840 D
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 15000 1/MIN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tool holder, hollow shank taper din 69893 *tool chain magazine 60 places. 500 x 500 mm
      • - Prepared for retrofitting a portable electronic handwheel (in the manual control panel) *internal coolant supply: coolant through the center of the spindle centric form ad; mechanically adjustable; coolant tank integrated with backwash filter external coolant supply: coolant via nozzles pindle
      • - Flushing gun at the clamping station
      • - Shaft shower > open outlets
      • - Chip conveyor, scraper
      • - Completely enclosed work area cladding according to uv
      • - Piece counter on the nc screen
      • - Remote diagnosis with analog modem
      • - Computer connection via ethernet interface
      • - Pallet sequence operation,tool speed monitoring ,operating hours display
    • Qualitative Machine Benefits:
      • - Operating voltage, dialog language german or english, when ordering the options, the corresponding items of the basic equipment are omitted.
      • - Color scheme: light grey ral 7035, mouse grey ral 7005, ruby red ral 3003. Documentation in german on cd-rom
      • - Sinumerik 840d control system
      • - The machining center is equipped with a cnc sinumerik 840d or de with integrated plc. The control system in combination with the simodrive 61d drive components is designed for maximum machining accuracy and high productivity.
      • - The most important functions of the standard equipment are listed below: operating and display components / interfaces - flat control panel with 15" tft color display - at-compatible pc as hmi-pcu50 with windows user interface and membrane keyboard
      • - (hmi = human-machine communication), remote diagnostics with analog modem and software 1 /
      • - Machine control panel for operating machine functions - usb interface on the main control panel
      • - Ethernet interface 10/100 mbit/s for rj45 connector
      • - Cnc user memory 5. 1 mbyet buffered for programs and data
      • - Manual input (mda) and teach ni - set-up functions (jog) for all axes and the milling spindle with machine control panel or manual control panel - constantly active diagnostics system with error and status display in plain text - screens for display or input of: tool data, process data, data for chip conveyor runtime regime, data for operator influence, operating hours display service function for tool and pallet changes tool corrections - tool management - tool wear monitoring (time, number of pieces) - tool radius correction in the plane zero point offsets - 04zero point offsets ej axis and additional additive, programmable zero point offsets - zero point offsets programmable (frames)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
