HAITIAN Jupiter II Plus Injection Moulding Machine

Show in original language

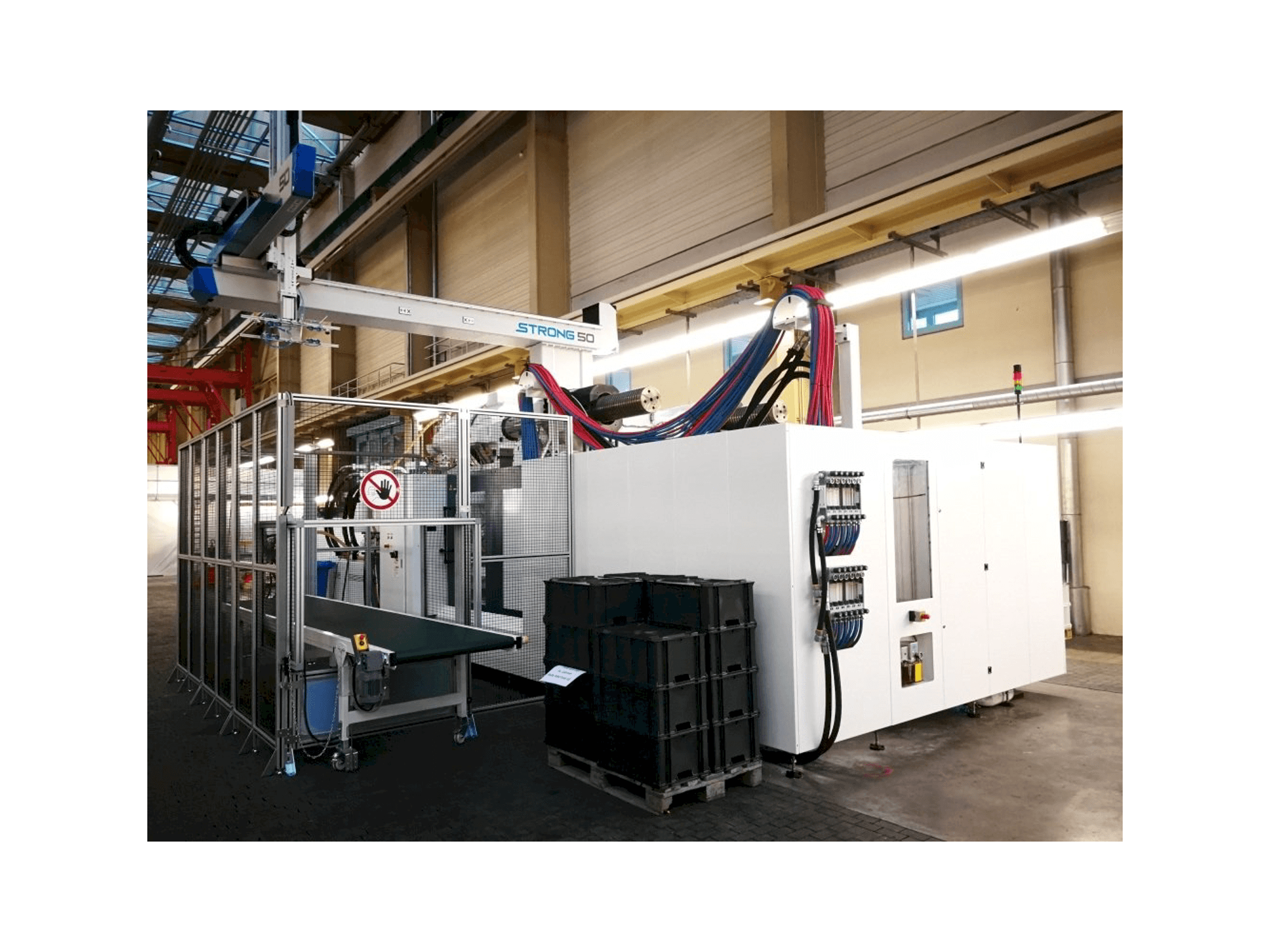

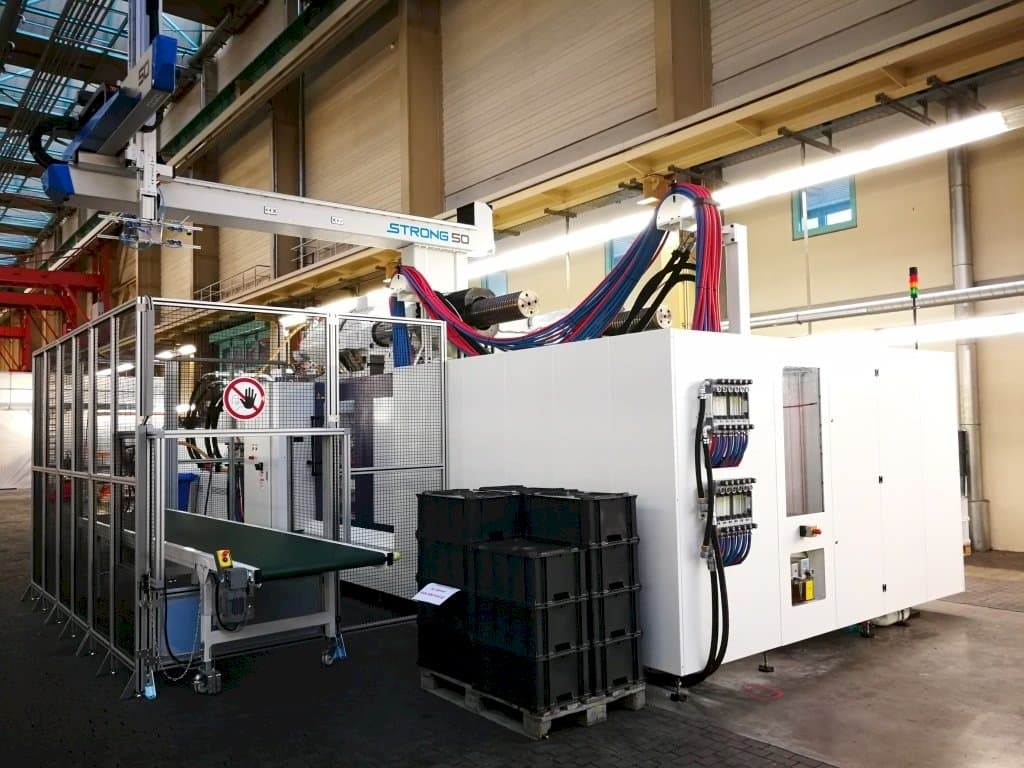

This HAITIAN Jupiter II Plus Injection Moulding Machine was built in 2018 in China. It incorporates a clamping force of 16000 kN and includes an adapted handling Sepro Strong 50. This machine is completely new, as it has been used for showcasing purposes only.

Overview

brand: HAITIAN
year: 2018
MODEL: Jupiter II Plus
production hours: 500
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - HAITIAN Jupiter II Plus

General Data

Measurements width: 4100 mm
Measurements depth: 12000 mm
Measurements height: 3600 mm
Machine weight: 84000 kg

Injection Unit

Screw diameter: 120 mm
Shot weight: 5661 PS
Injection pressure: 1710 BAR
Plasticizing rate max.: 138 g/s
Screw speed: 102 rpm
Heating capacity: 91.5 kW

Clamping unit

Clamping force: 16000 kN
Opening stroke: 3250 mm
Distance between bars: 1550x1450 mm
Mould height min: 700 mm
Mould height max: 1550 mm
Ejector stroke: 400 mm
Ejector force for / back: 330 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Beam spacing 1550x1450 mm
- - Minimum cross section: 1085x1015 mm
- - Heating power 91,5 kw
- - Hopper capacity 100 kg
- - Oil tank 1540 l
- - Injection unit 10600

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
