HAAS VM-3 Vertical machining center

Show in original language

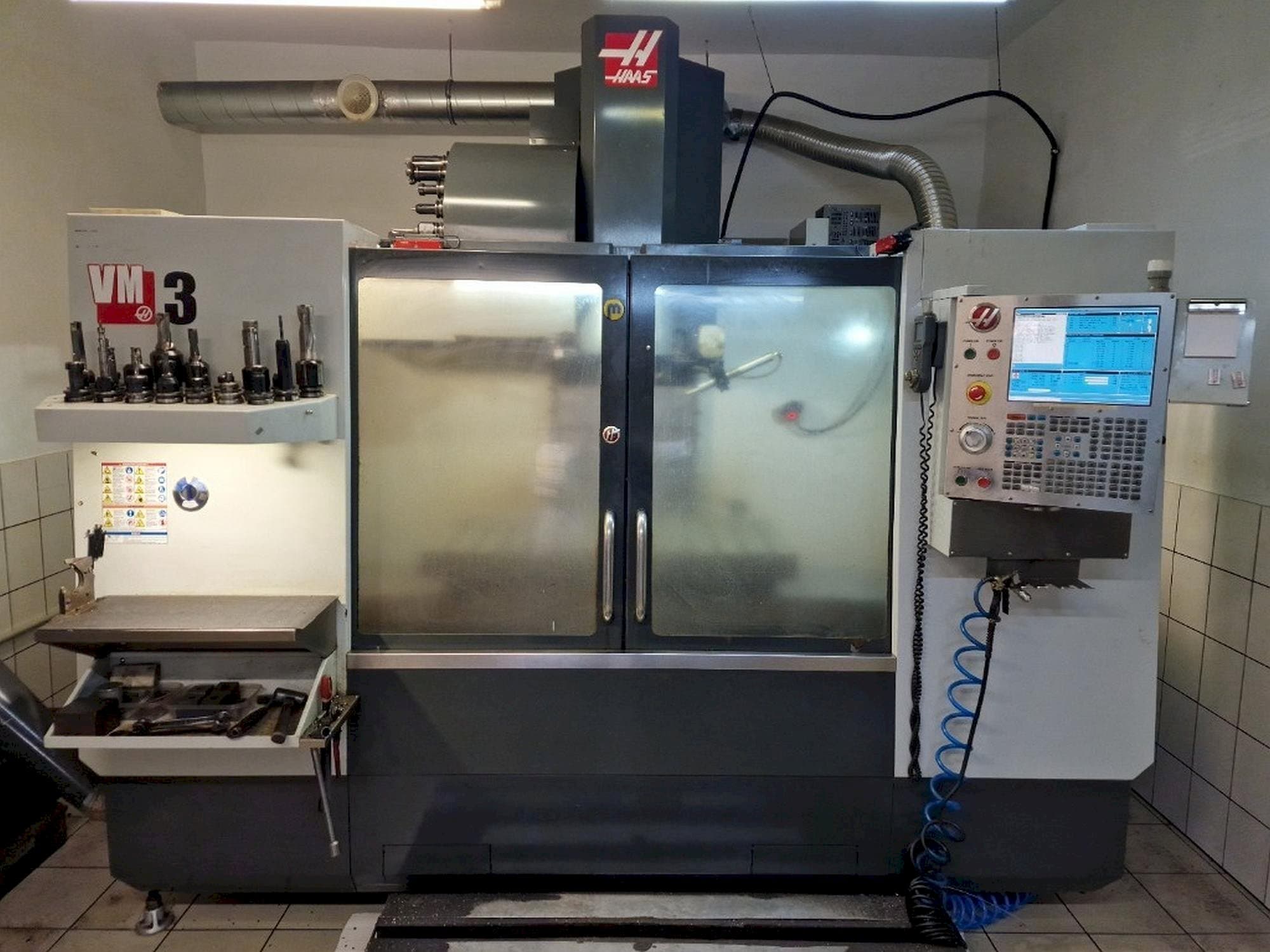

This HAAS VM-3 Vertical machining center was made in the United States in the year 2012. It is operated through a Haas control unit and has 3 axis. The machine has a spindle speed of 12000 rpm, is in very good condition.

Overview

brand: HAAS
year: 2012
MODEL: VM-3
production hours: 11157
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VM-3

General Data

Measurements width: 3970 mm
Measurements depth: 2600 mm
Measurements height: 2670 mm
Machine weight: 7077 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kw
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 742 mm

Table

Outer length: 1372 mm
Outer width: 610 mm
Table load: 1814 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle mount: sk40
- - Number of tool stations: 24 tools
- - Applications: for molds
- - Spindle type: in-line
- - Cooling trough the spindle: 20 bar
- - Max tool dim. : 330 mm
- - Max tool weight: 5. 4 kg
- - Tool-changing time: 2. 8 s
- - Programmable air and coolant nozzle
Qualitative Machine Benefits:
- - Hsm and rigid tapping functions
- - The machine in working condition, ready for test
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
