HAAS - VF-4SSGB-MIL-HAA-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

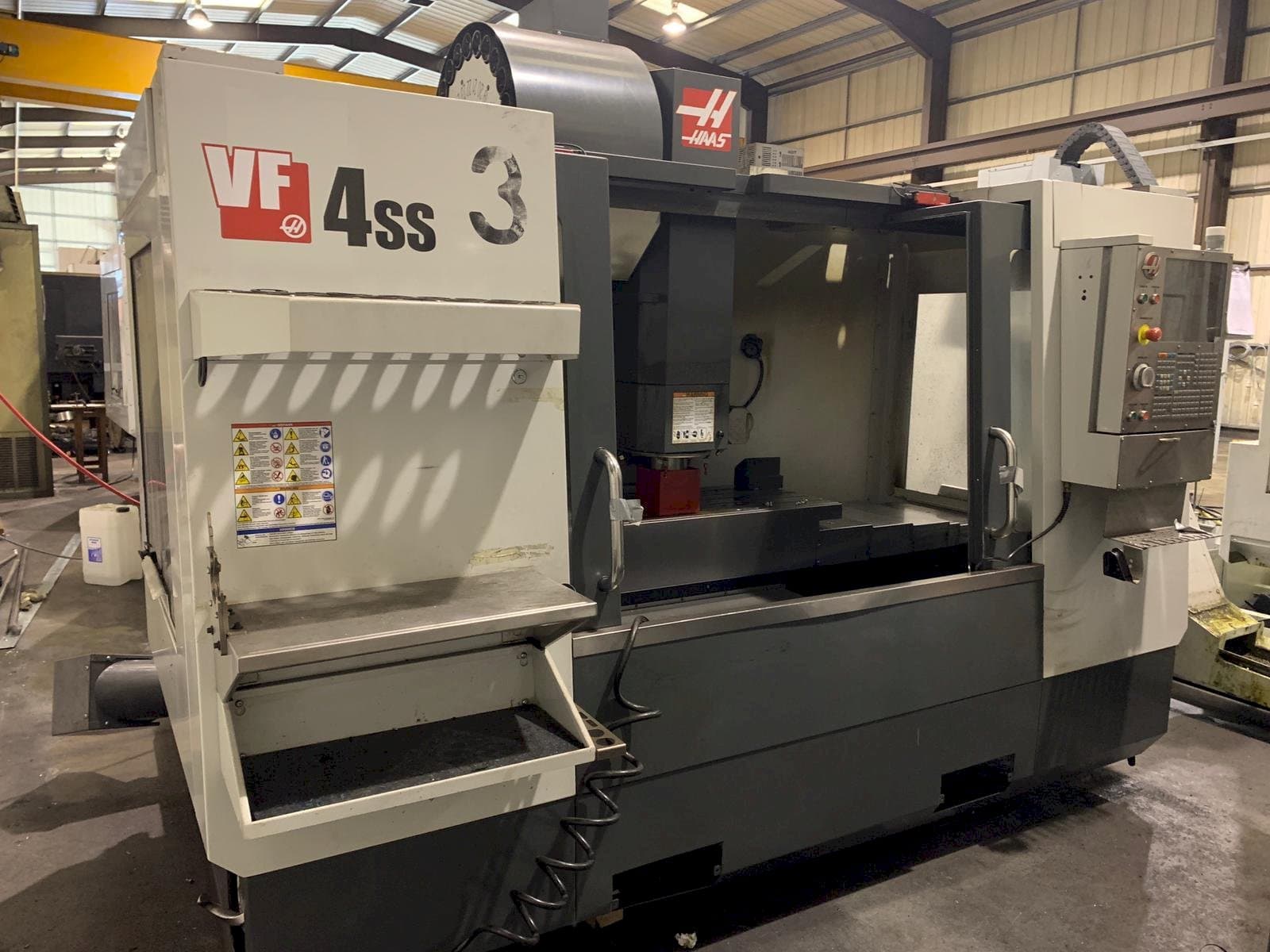

This HAAS VF-4SS vertical machining center was built in the year 2014 in the United States. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 12000 rpm and a programmable coolant nozzle. This machine is in good conditions.

Overview

brand: HAAS
year: 2014
MODEL: VF-4SS
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Haas

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6033 Kg

Control Unit

Brand: Haas

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 Kg

Table

Outer length: 1324 MM
Outer width: 457 MM

Tools

Slots in storage: 24
Type of tool holder: BT 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 102-737 mm
- - Through spindle coolant
- - Swarf auger
- - Programmable coolant nozzle
- - Coolant
- - Tool setter
- - Speed machining function
Qualitative Machine Benefits:
- - Machine in good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
