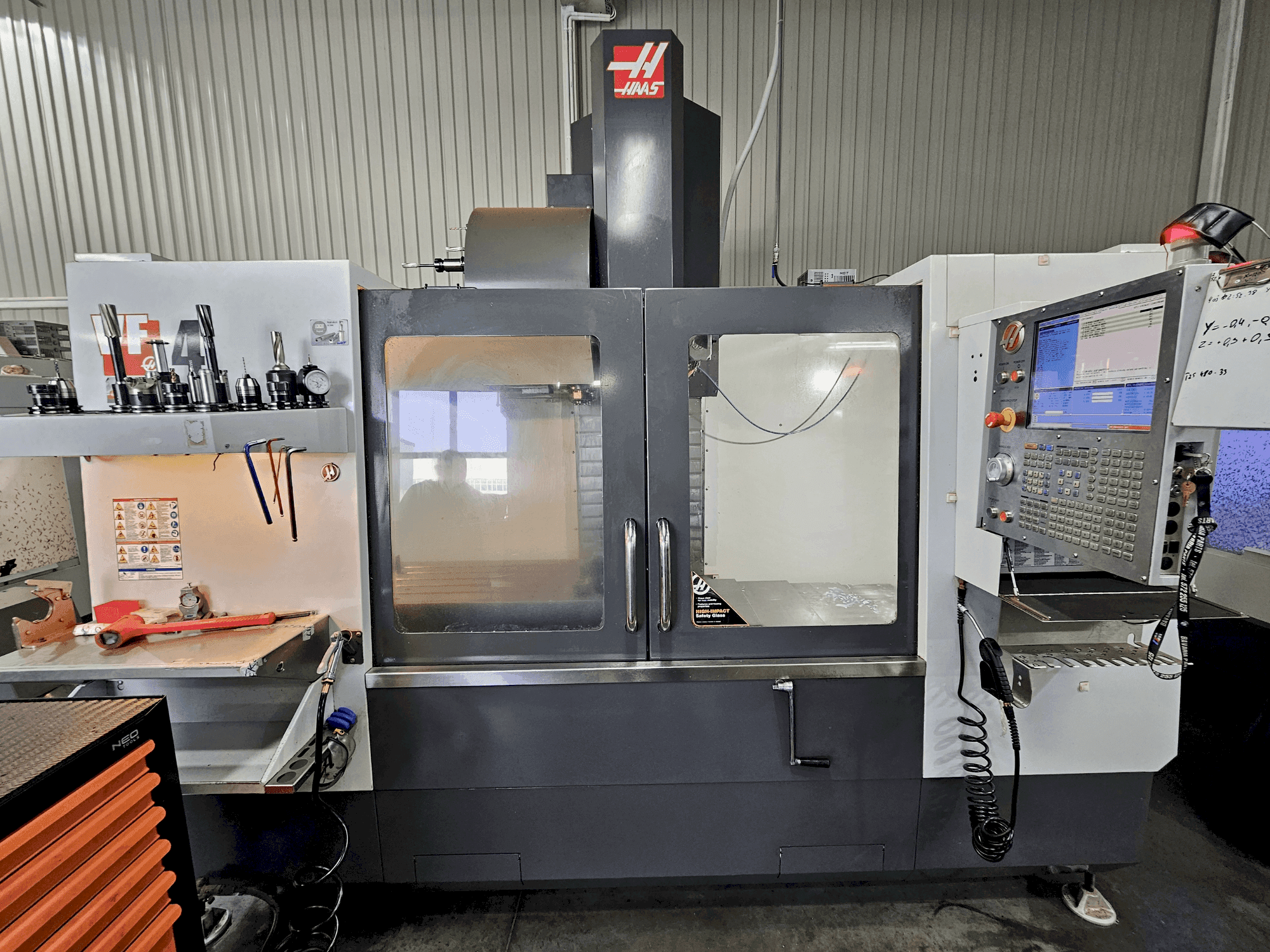

HAAS VF-4 Machining Centre (vertical)

Show in original language

This HAAS VF-4 Vertical Machining Center was manufactured in the year 2018 in the United States. It is equipped with a HAAS control unit and has 3 axis. The machine is in very good working condition and can be inspected at any time.

Overview

brand: HAAS
year: 2014
MODEL: VF-4
production hours: 3628
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4

Control Unit

Model: NGC version
Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Tool taper: CT40 (SK40)
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1321 mm
Outer width: 495 mm
Table load: 1588 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control unit: haas type (ngc version), compatible with fanuc
- - Travels: x axis: 1270 mm y axis: 508 mm z axis: 635 mm
- - Spindle nose to table (max): 742 mm
- - Spindle nose to table (min): 107 mm
- - Spindle max speed: 8100 rpm
- - Taper: ct40 (sk40)
- - Table: 1321 x 495 mm / max weight on table: 1588 kg
- - Number of std t-slots: 5
- - Tool changer: 24 positions

Extra information

- Machine still under power, Working hours: power on: 10357h / spindle: 3628h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
