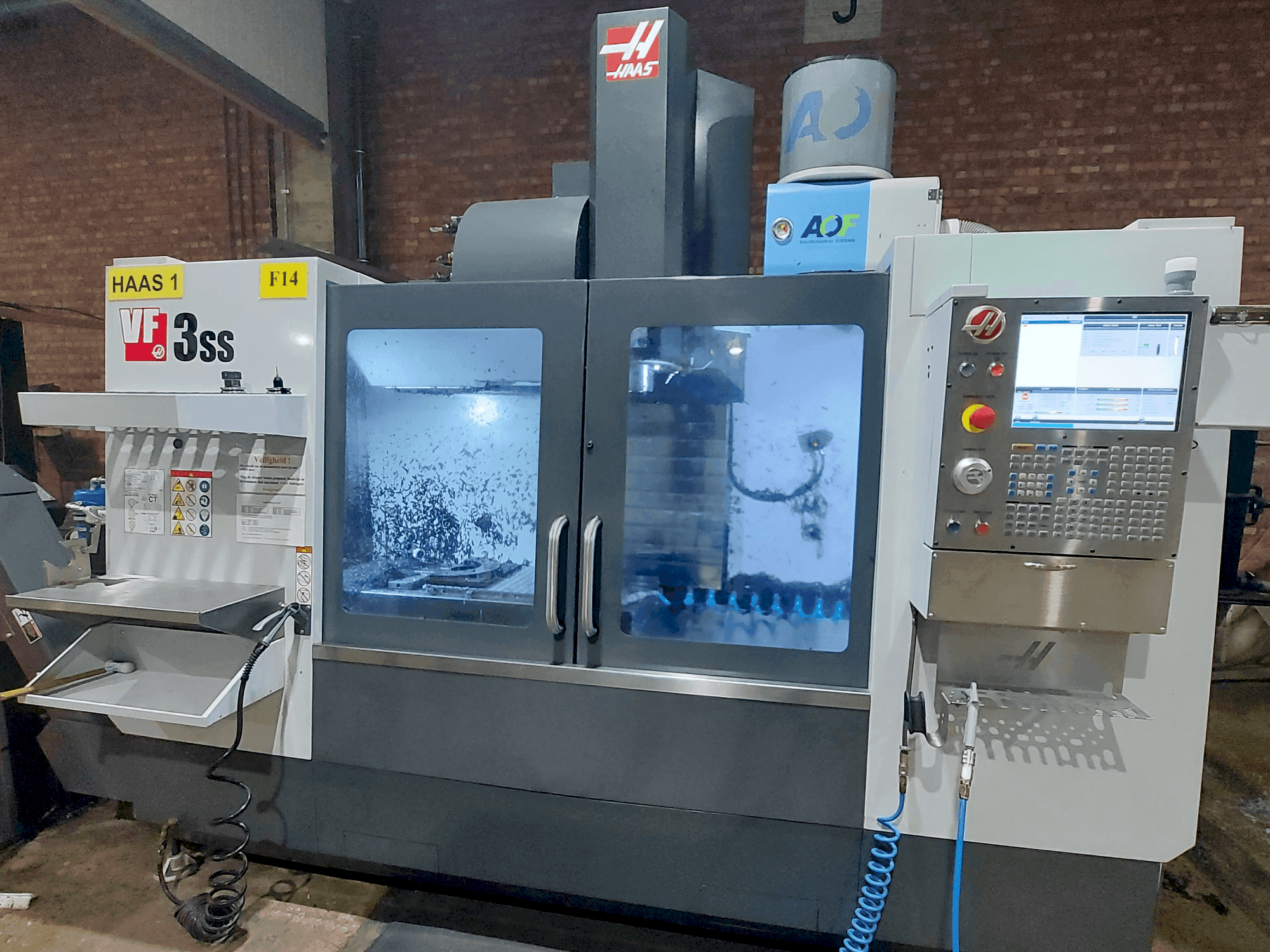

This HAAS VF-3SS Vertical Machining center was manufactured in the year 2017. It is equipped with a HAAS control unit and has 3 axis (X = 1016 mm / Y = 508 mm / Z = 635 mm). The machine has a spindle speed of 15,000 rpm and comes with a Wireless Intuitive Probing System (RENISHAW), Chip & Coolant Management (through spindle coolant, through-tool air blast etc.) and Legacy Options (CT-style tool changer grippers, 24+1 side-mount tool changer etc.). It is still under powert and can be inspected on-site. See video for more details.
Overview
- brand: HAAS
- year: 2017
- MODEL: VF-3SS
- production hours: 17731
- application type: Milling
- Location: Belgium
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-3SS
General Data
- Measurements width: 3870 mm
- Measurements depth: 2510 mm
- Measurements height: 2690 mm
- Machine weight: 6124 kg
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 15,000 rpm 1/MIN
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 635 mm
Table
- Outer length: 1219 mm
- Outer width: 457 mm
- TSlots size: 15.90 mm to 16.00 mm
- Number of tslots: 5
- Table load: 794 kg
Media
- Main electronic connection: 440 V Phase 3
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Spindle: 15,000-rpm spindle
- - Probing: wireless intuitive probing system (renishaw)
- - Chip & coolant management: auxiliary coolant filter // through-spindle coolant // through-tool air blast // window air blast // 55-gallon coolant tank
- - Legacy options: ct-style tool changer grippers // 24+1 side-mount tool changer // pull studs din 69-871 tsc // multi-auger chip conveyor-quad
- - The Haas Control: Standard Program Memory, 1 GB // Ethernet Interface // HaasConnect: Remote monitoring // Media Display M-Code M130 // Rigid tapping
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
