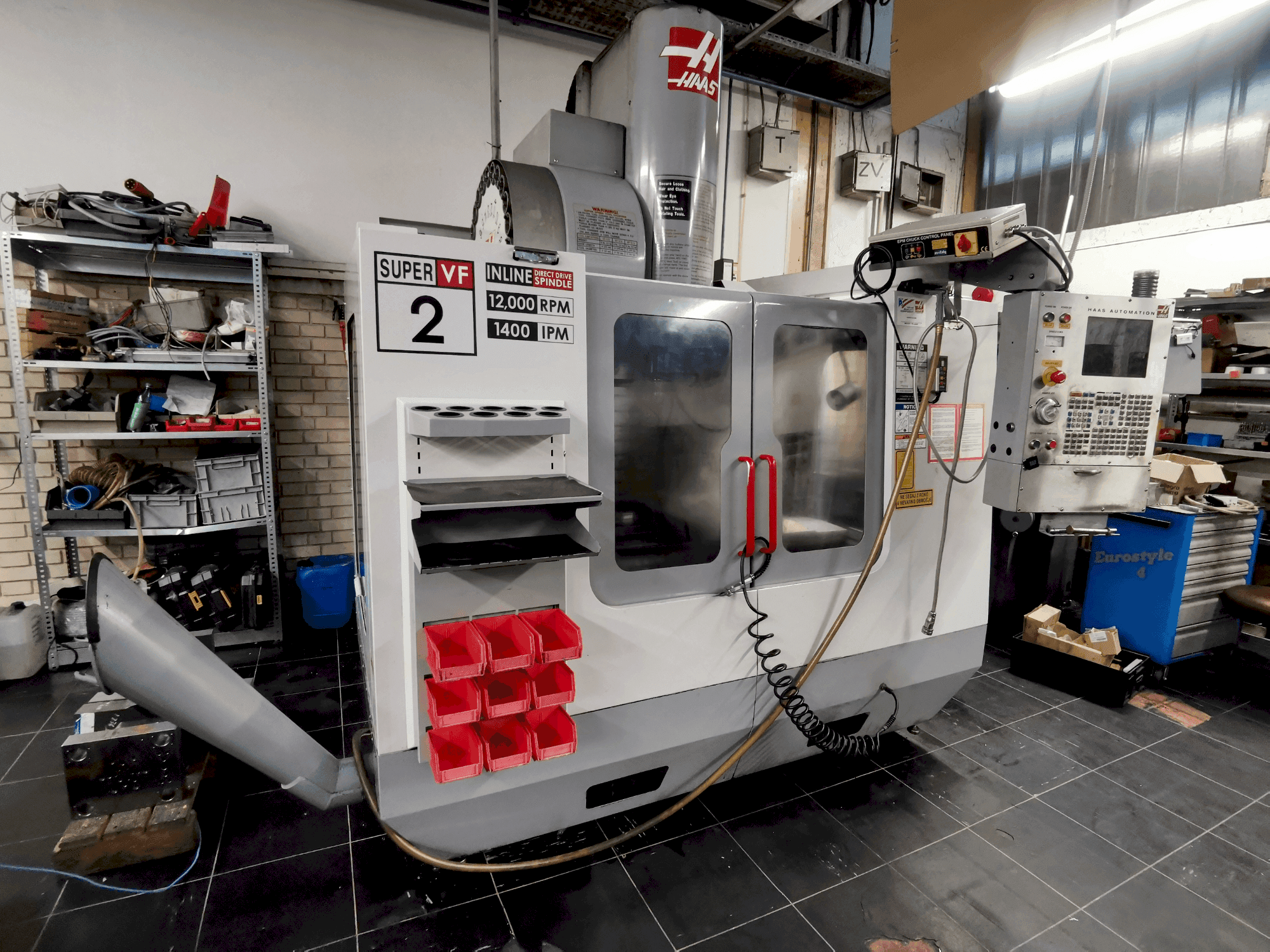

This 3-axis HAAS VF-2 SSHE vertical machining center was manufactured in 2004. It features a robust table handling up to 680 kg, with dimensions of 914 mm by 356 mm. Key capabilities include a spindle speed up to 12,000 RPM and a rapid feed rate of 35 m/min. It comes equipped with a Renishaw measuring probe and preparation for a 4th axis. If you are looking to get high-quality milling capabilities consider the HAAS VF-2 SSHE machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2004
MODEL: VF-2 SSHE
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2 SSHE

General Data

Measurements width: 2230 MM
Measurements depth: 3300 MM
Measurements height: 2570 MM
Machine weight: 6200 KG

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 0-12000 1/MIN
Spindle motor power: 22 kW
Tool taper: BT40
Main motor power: 50 Hz, 3x400 volts
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 35 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 35 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 35 m/min

Table

Outer length: 914 mm
Outer width: 356 mm
Table load: 680 kg

Additional Equipment

- Preparation for 4th axis
- Chip flushing with coolant
- Programmable and rotary coolant nozzle
- Cooling system
- Renishaw measuring probe
- Renishaw workpiece measurement

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine has been regularly serviced and is ready for immediate use.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
