- HAAS VF-0 Vertical machining center

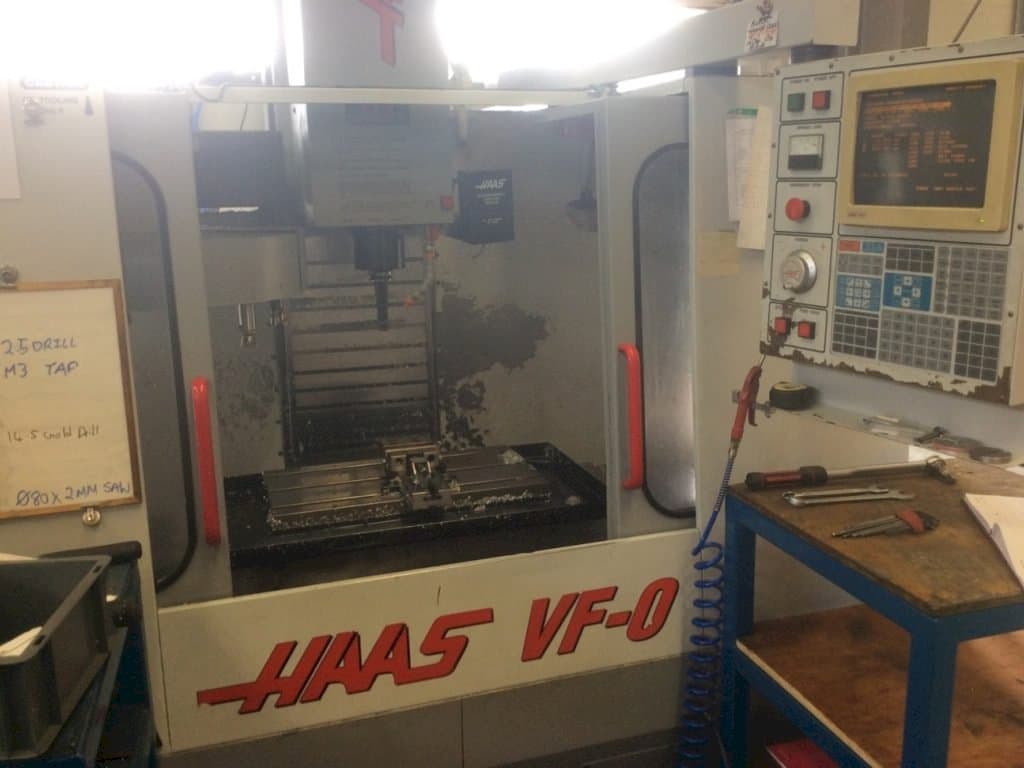

This HAAS VF-0 Vertical machining center was made in the United States in 1995. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed up to 7500 rpm. Includes HAAS 4th axis and a programmable coolant nozzle. Vise not included with the machine. It is in good condition.
Overview
- brand: HAAS
- year: 1995
- MODEL: VF-0
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-0
General Data
- Measurements width: 2280 mm
- Measurements depth: 2235 mm
- Measurements height: 2280 mm
- Machine weight: 3300 KG
Control Unit
- Brand: HAAS
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 7500 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 508 mm
- Y-AXIS Movement: 406 mm
- Z-AXIS Movement: 508 mm
Workpiece
- Workpiece weight: 1362 KG
Table
- Outer length: 660 mm
- Outer width: 356 mm
Tools
- Slots in storage: 20
- Max weight: 5.4 KG
- Max tool diameter: 91 mm
- Max tool length: 330 mm
- Type of tool holder: BT40
Media
- Main electronic connection: 3 x 480V / 60Hz
- Chip conveyor: Yes
Additional Equipment
- - HAAS 4th Axis & Tailstock
- - HAAS Programmable Coolant Nozzle
- - Screw Type Swarf Conveyor
- - 5 x Tool Holders
Additional Information
- Material type: Mild steel
- End product: Pump parts
- Industries: Pump industry
- Qualitative Machine Benefits:
- - Machine in good condition
- - Vise not included with the machine
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
