HAAS - ST-40IT-TUR-HAA-2019-00003

Name: HAAS ST-40
Brand: HAAS
SKU: IT-TUR-HAA-2019-00003
Price: 56500 GBP
Availability: InStock

£ 56,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

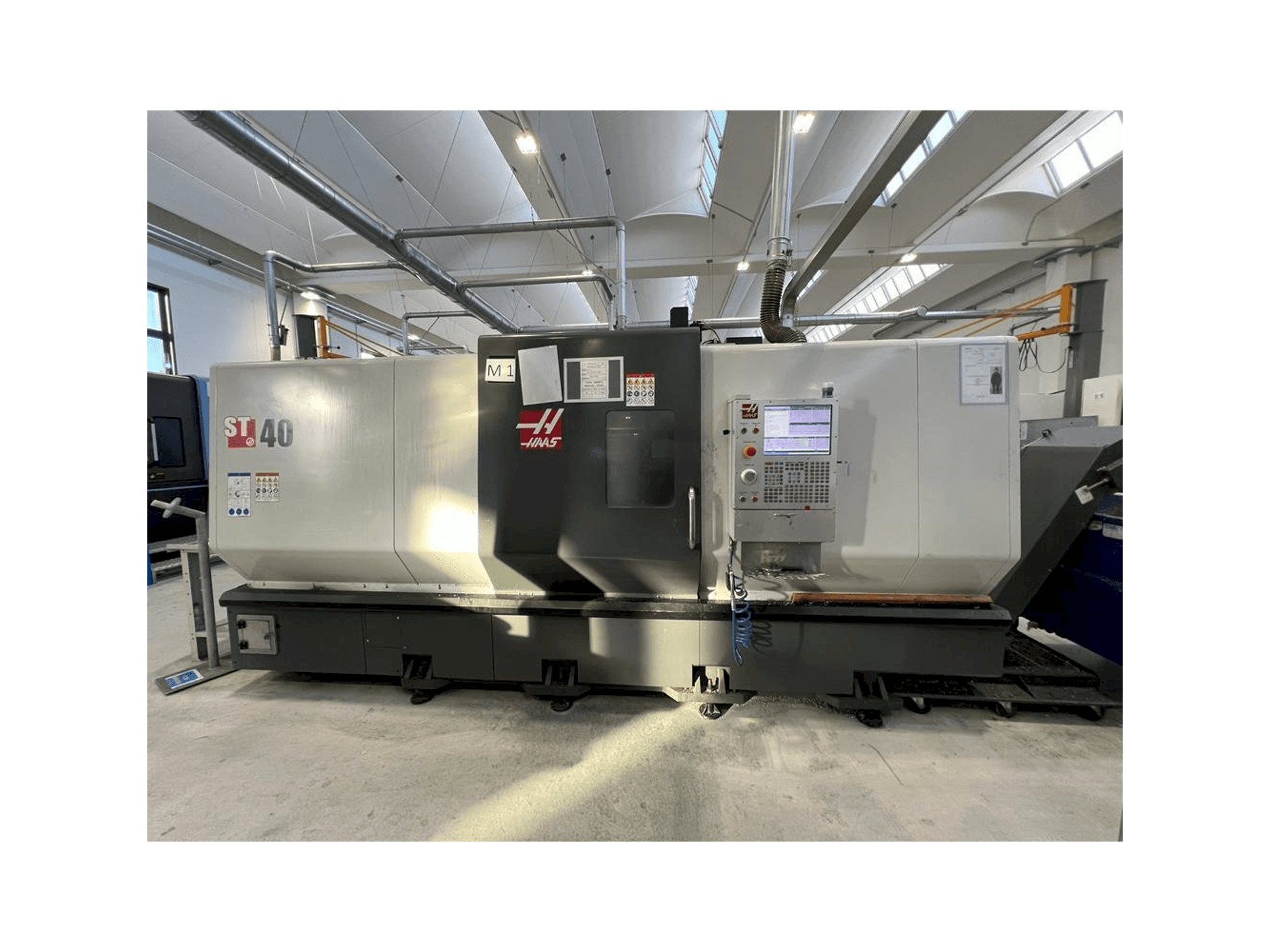

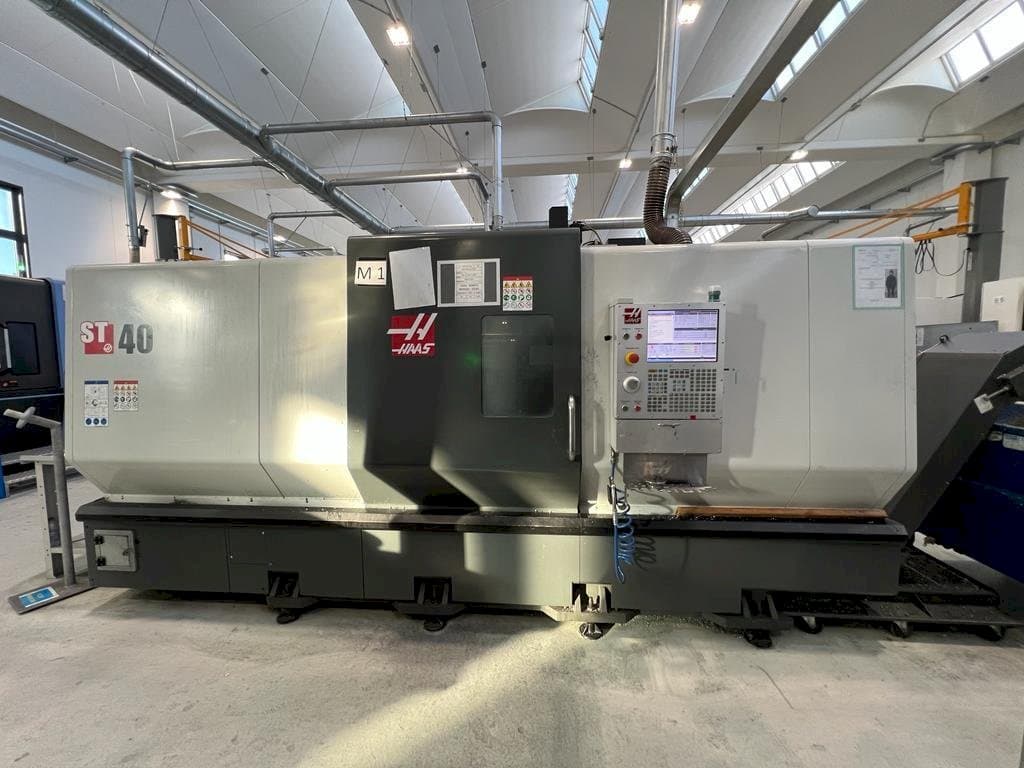

This HAAS ST-40 Lathe was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit. The machine has a spindle speed of 2400 rpm.

Overview

brand: HAAS
year: 2019
MODEL: ST-40
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: IMMEDIATELY

Technical Information - HAAS ST-40

General Data

Machine weight: 11749 kg

Main drive

Spindle speed range: 2400 1/MIN
Spindle motor power: 29.8 kW
Tool taper: A2-8

Movement

X-AXIS Movement: 432 mm
X-AXIS Rapid traverse: 18.0 m/min
Z-AXIS Movement: 1118 mm
Z-AXIS Rapid traverse: 18.0 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 15” cnc monitor
- - 2-speed range gearbox
- - Spindle hole 117. 3 mm
- - Through hole 102 mm
- - Chuck diameter 381 mm
- - Vault 876 mm
- - Diameter to be machined 648 mm
- - 12-position tool turret
- - Usb port
- - Rigid tapping
Qualitative Machine Benefits:
- - Conveyor belt chip conveyor
- - Automatic presetting
- - High pressure refrigeration 21 bar
- - Std. Tool holder kit (2)
- - Machine maintained perfectly working

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
