HAAS - ST 10HU-TUR-HAA-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

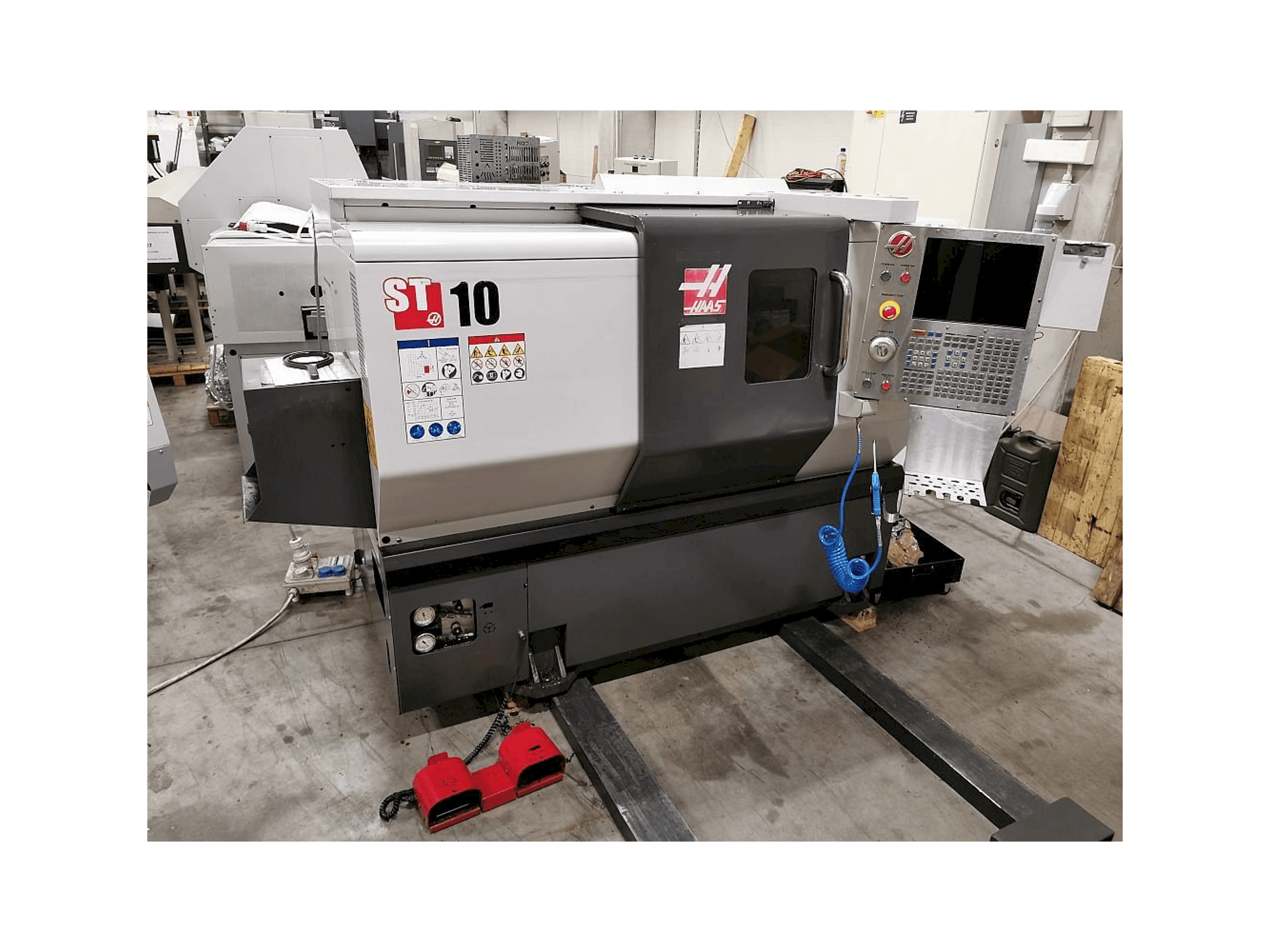

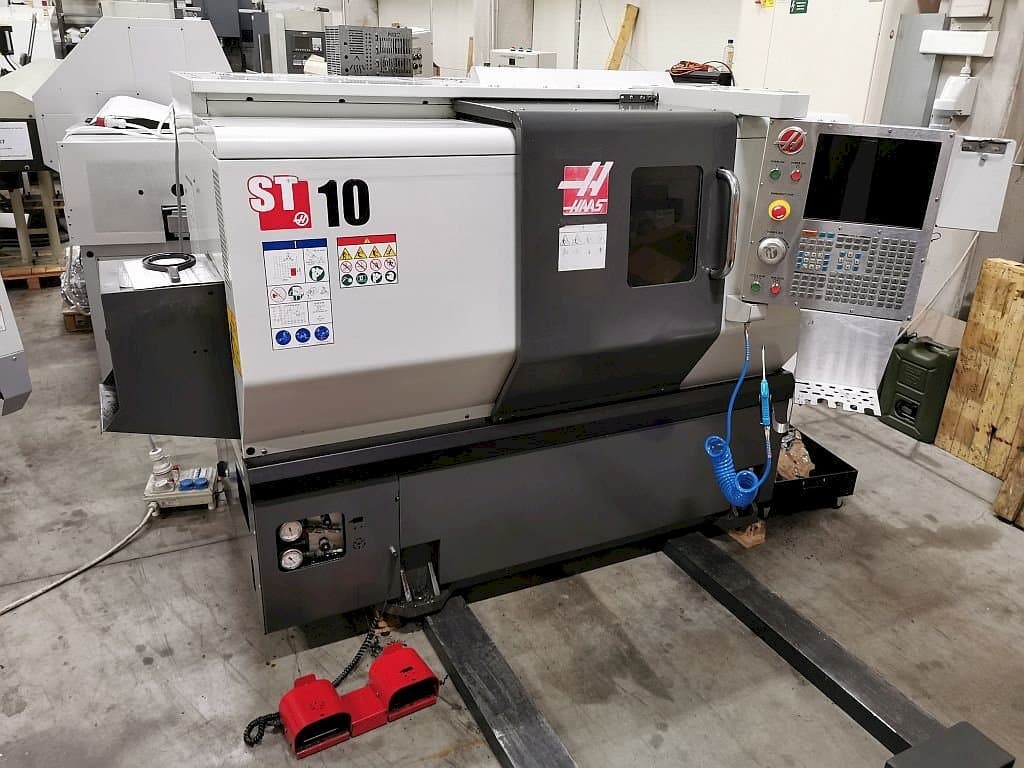

This HAAS ST 10 Lathe was built in the year 2016. It is operated through a LCD screen control unit of the same brand. This 2 axis machine has a record of 3600 spindle hours. It can work with a spindle speed up to 6000 rpm. This machine includes 3 jaw chucks, tailstock, coolant system and its instruction manual. It presents very good conditions and it has only machined plastic parts.

Overview

brand: HAAS
year: 2016
MODEL: ST 10
production hours: 3600
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST 10

General Data

Measurements width: 1900 mm
Measurements depth: 2500 MM
Measurements height: 1900 mm
Machine weight: 3000 Kg (approximately)

Control Unit

Brand: HAAS
Interface: USB

Main drive

Spindle speed range: 6000 1/MIN
Spindle bore: D45 mm
Number of axis: 2

Movement

X-AXIS Rapid traverse: 30 M/min
Z-AXIS Rapid traverse: 30 M/min

Turret

Number of turrets: 12 - fold

Media

Power consumption: 11.2 kW

Additional Equipment

- 3 jaw chucks
- Tailstock
- Coolant system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size 6. 5″
- - Swing diameter over bed 641 mm
- - Swing diameter over cross slide 413 mm
- - Turning length 356 mm
- - Turning diameter 356 mm
Qualitative Machine Benefits:
- - Instruction manual
- - Very good condition of the machine
- - The machine has only machined plastic parts.
- - Excellent condition 2 axes slanted bed lathe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
