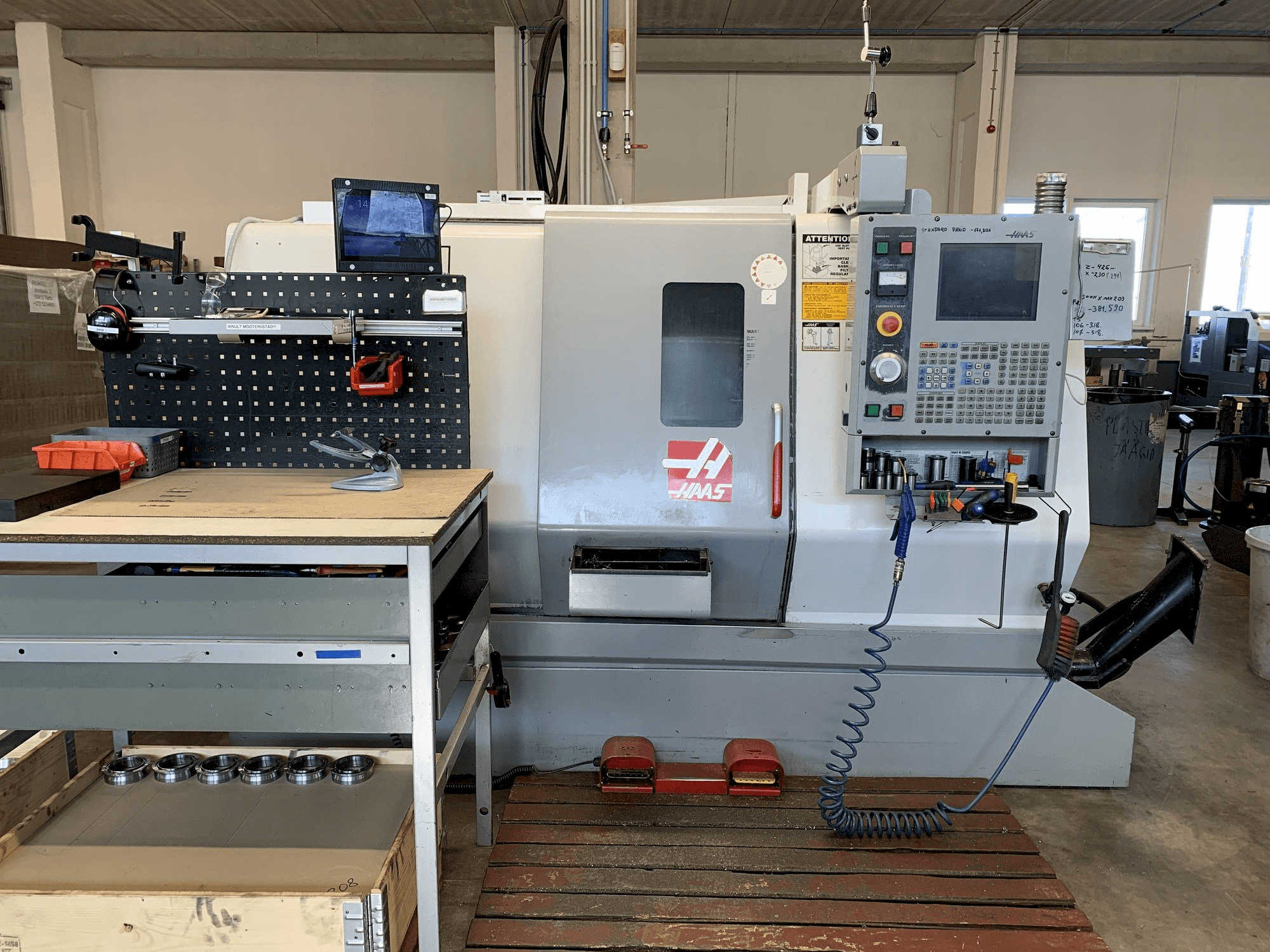

HAAS SL-20 TCF Lathe

Show in original language

This HAAS SL-20 TCF Lathe was made in the year 2003 in the United States and has 23000 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: HAAS
year: 2003
MODEL: SL-20 TCF
production hours: 23000
application type: Turning
Location: Estonia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-20 TCF

General Data

Machine weight: 4000 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 230 mm

Workpiece

Workpiece x: 230 mm
Workpiece z: 470 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X and z axis (x max turning 230mm and z max 470mm)
- - Hydraulic centrifuge mt4
- - Turret 10 slots
- - Chuck 210mm 8" (chuck 3 years old)
- - Spindle hole max 52mm, revolutions max 4000, 15kw
- - Tool gauge probe
- - Macro programming
- - Possibility to make a program on the machine. Very simple
- - Detail catcher and box
- - Usb slot - program installation via usb
Qualitative Machine Benefits:
- - Coolant tank 150l
- - Hydraulic oil changed every year
- - Machine maintenance work has been performed only by haas technicians
- - Installed more powerful coolant pump, max 6bar (better cooling)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
