HAAS - HAAS VF-2SSYTHU-MIL-HAA-2016-00003

Name: HAAS HAAS VF-2SSYT
Brand: HAAS
SKU: HU-MIL-HAA-2016-00003
Price: 37350 GBP
Availability: InStock

£ 37,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS HAAS VF-2SSYT For Sale | gindumac.com

Show in original language

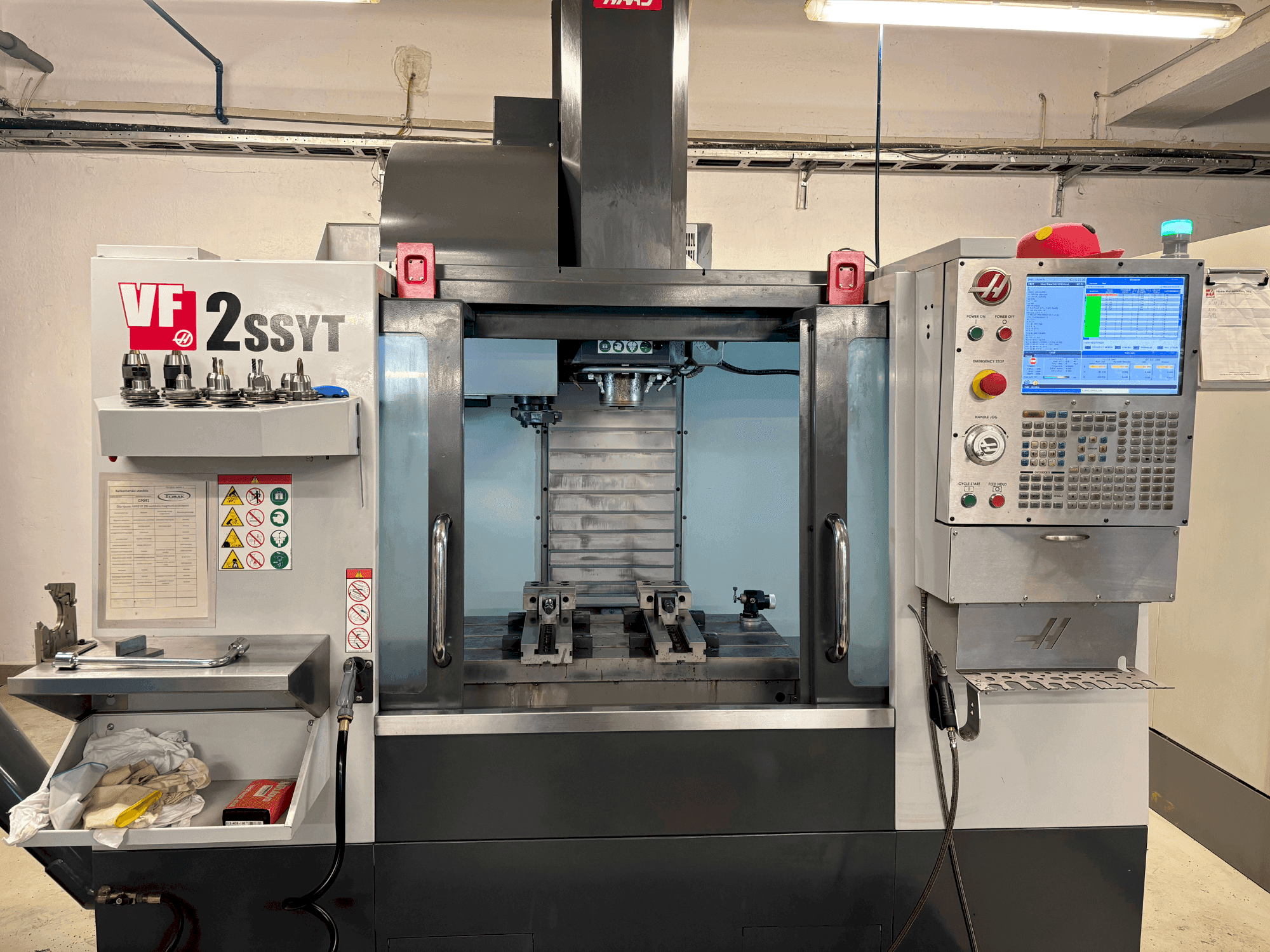

This 3-axis HAAS VF-2SSYT vertical machining centre was manufactured in 2016. It features a 30.0 hp spindle with a maximum speed of 12000 rpm and a torque of 122.0 Nm at 2000 rpm. The machine includes a 30+1 side-mount tool changer and supports a maximum table load of 680 kg. Rapid traverse rates reach up to 35.6 m/min. If you are looking to get high-quality milling capabilities, consider the HAAS VF-2SSYT machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2016
MODEL: HAAS VF-2SSYT
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS HAAS VF-2SSYT

General Data

Machine weight: 4500 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Tool taper: CT40 / BT40 / HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 35.6 m/min

Table

Number of tslots: 3
Table load: 680 kg

Tools

Number of index: 30+1
Max weight: 5 kg
Max tool diameter: 64 mm
Max tool length: 279 mm
Type of tool holder: SMTC

Media

Air pressure: 5.5 bar

Additional Equipment

- Air Requirement: 113 L/min at 6.9 bar
- Internal Air Hose: 3/8 in
- Air Coupling: 3/8 in
- Min. Air Pressure: 5.5 bar
- Coolant Capacity: 208 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (max): 610 mm spindle nose to table (min): 102 mm
- - Max torque: 122 nm at 2000 rpm
- - Drive system: inline direct-drive
- - Bearing lubrication: air / oil injection
- - Cooling: liquid cooled
- - Max cutting: 21. 2 m/min
- - Tool change time (average): 1. 80 s
- - T-slot width: 15. 90 mm to 16. 00 mm // t-slot center distance: 125 mm
- - Time between tool changes (average): 2. 40 s
- - 4th axis preparation

Extra information

- Dimensions: Dimensions of Machine (LxWxH): Domestic Pallet: 269 cm x 259 cm x 257 cm Export Pallet: 232 cm x 254 cm x 257 cm Weight (kg): Without SMTC: 3539 kg With 50+1 SMTC: 3675 kg With 70+1 SMTC: 4500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
