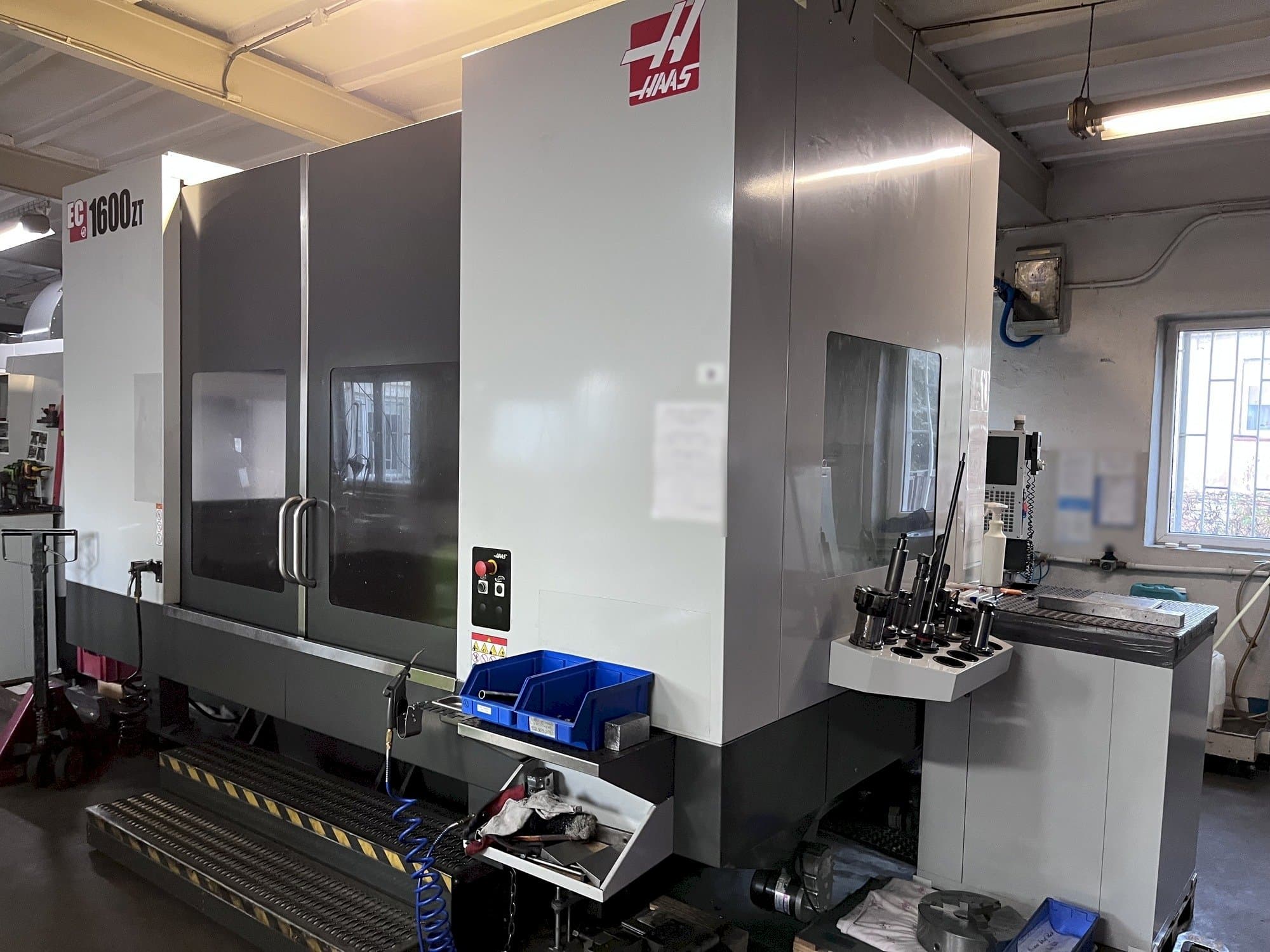

HAAS EC-1600 ZT Horizontal Machining center

Show in original language

This HAAS EC-1600 ZT Horizontal Machining center was manufactured in the year 2020 in the United States and has 6391 working hours. It is equipped with a HAAS NGC control unit and has 4 axis. The machine has a spindle speed of 7500.

Overview

brand: HAAS
year: 2020
MODEL: EC-1600 ZT
production hours: 6391
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS EC-1600 ZT

General Data

Machine weight: 14288 kg

Control Unit

Model: NGC
Brand: HAAS

Main drive

Spindle speed range: 7500 1/MIN
Spindle motor power: 22.4 kW
Tool taper: ISO 50
Number of axis: 4

Movement

X-AXIS Movement: 1626 mm
X-AXIS Feed Force: 12.7 m/min
X-AXIS Rapid traverse: 15.2 m/min
Y-AXIS Movement: 1270 mm
Y-AXIS Feed Force: 12.7 m/min
Y-AXIS Rapid traverse: 15.2 m/min
Z-AXIS Movement: 813 mm
Z-AXIS Feed Force: 12.7 m/min
Z-AXIS Rapid traverse: 15.2 m/min

Workpiece

Workpiece weight: 4536 kg

Table

Outer length: 1626 mm
Outer width: 813 mm

Tools

Slots in storage: 30+1
Max weight: 13.6 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Type of drive: servo maximum torque: 2712 nm
- - Holding torque: 5423 nm
- - Positioning accuracy: +/- 30"
- - Repeatability: 10"
- - Maximum torque at 700 rpm: 460 nm
- - Tool shank type according to din 69871: ct bt 50
- - Maximum tool diameter / all tools: 102 mm
- - Tool change time / tool-to-tool: 4. 2 seconds, tool change time / chip-to-chip: 6. 3 seconds
- - Machine positioning accuracy: +/- 0. 008 mm, machine repeatability: +/- 0. 005 mm
- - Coolant tank capacity: 360 liters
Qualitative Machine Benefits:
- - Acf: additional 25 µm filtration system
- - Tsc-h*: through-spindle coolant, high-pressure pump / 21 bar, 22 l/min (requires acf option)
- - 4th-axis-rty: 4th axis - full rotary axis / built-in rotary table
- - Wips-r: wireless intuitive probing system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
