Gildemeister GMX 250 linear

Show in original language

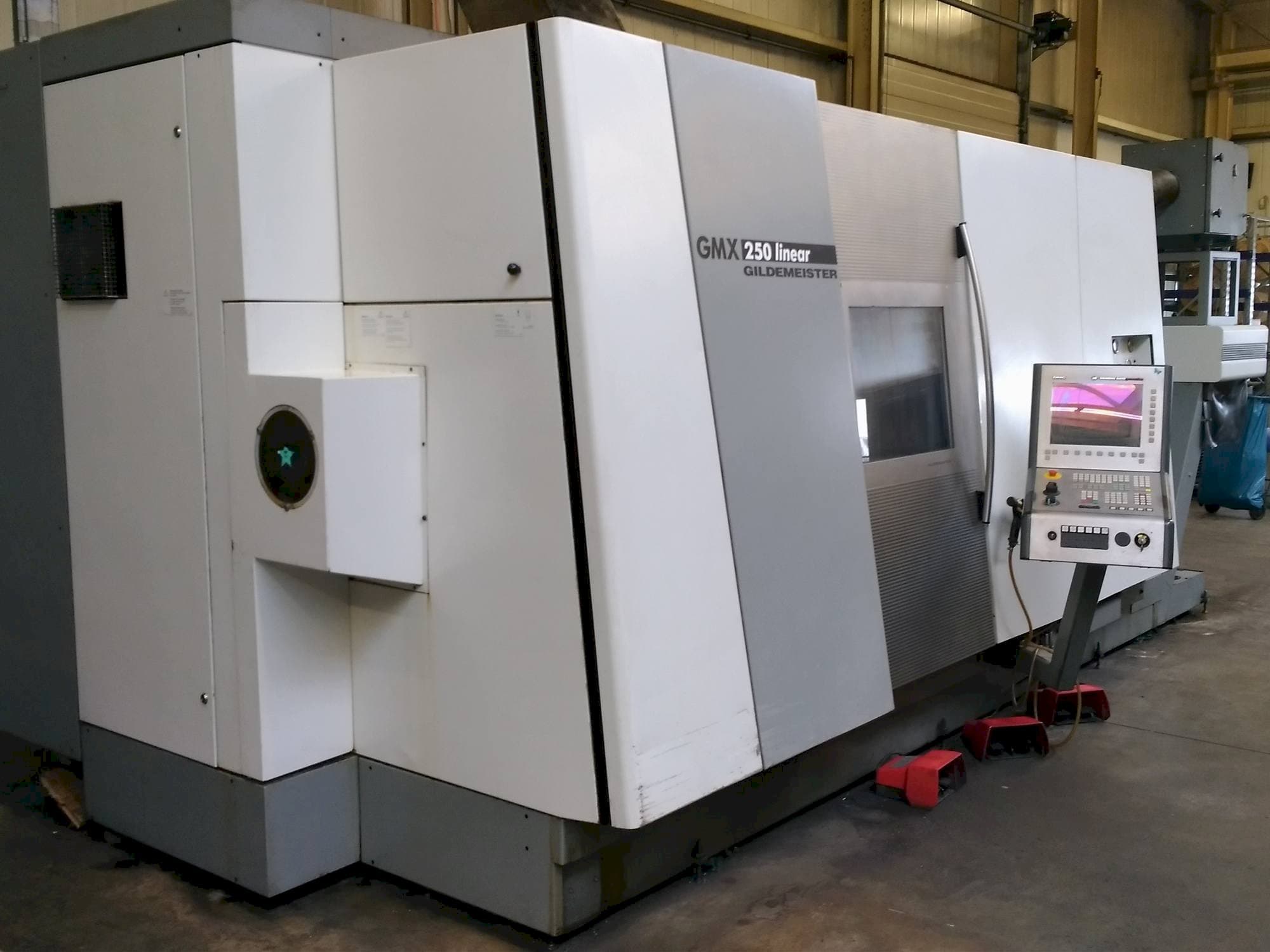

This Gildemeister GMX 250 linear lathe machine was built in 2008 in Germany. The machine has a record of 65758 hours, of which 42358 are operating hours. It is operated through a SIEMENS 840D powerline control unit. This 4 axis machine has a spindle speed up to 5000 rpm and a turning lenght 1185 mm.

Overview

brand: Gildemeister
year: 2008
MODEL: GMX 250 linear
production hours: 65758
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Gildemeister GMX 250 linear

General Data

Measurements width: 7800 mm
Measurements depth: 4100 mm
Measurements height: 3040 mm
Machine weight: 15000 kg

Control Unit

Model: 840D powerline
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 28 kw
Number of axis: 4

Turret

Number of tool slots: 12

Tools

Max weight: 6/10 KG
Max tool diameter: 120 MM
Max tool length: 200(17) / MAX. 350(29) MM
Type of tool holder: HSK63-A

Media

Main electronic connection: 400 v 50 hz
Power consumption: 75 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel axis: x1/y1 - 550/ 180 mm
- - Travel axis: z1 - 1185 mm
- - Travel axis: b1 - 240 grad.
- - Travel axis: x2 - 180 mm
- - Travel axis: z2 - 1050 mm
- - Travel axis: z3 - 1150 mm
- - Chuck diameter: 200 - 315 mm
- - Maximum rod diameter: 65 mm
- - Spindle head diameter: 170h5 mm
- - Maximum torque: 320 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
