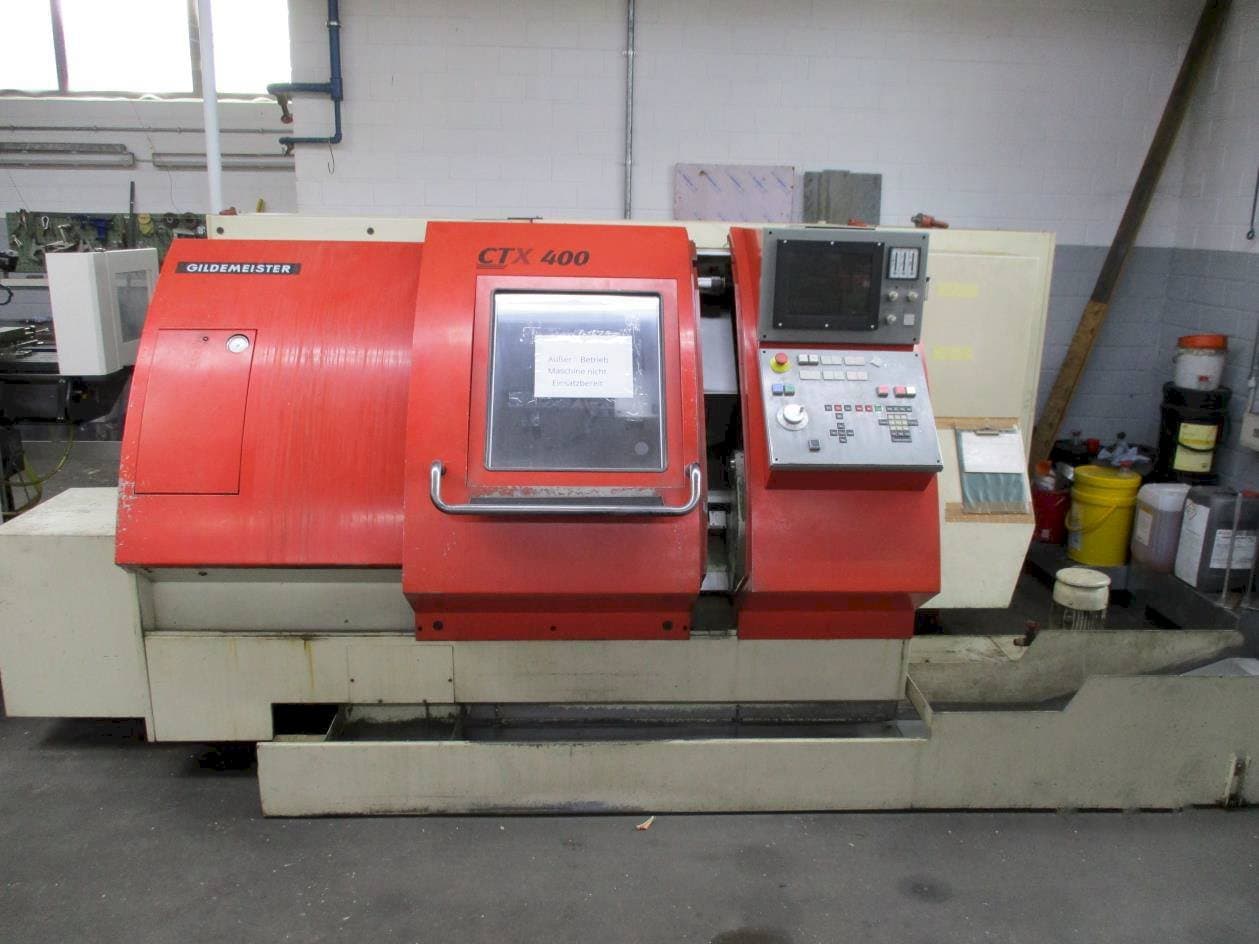

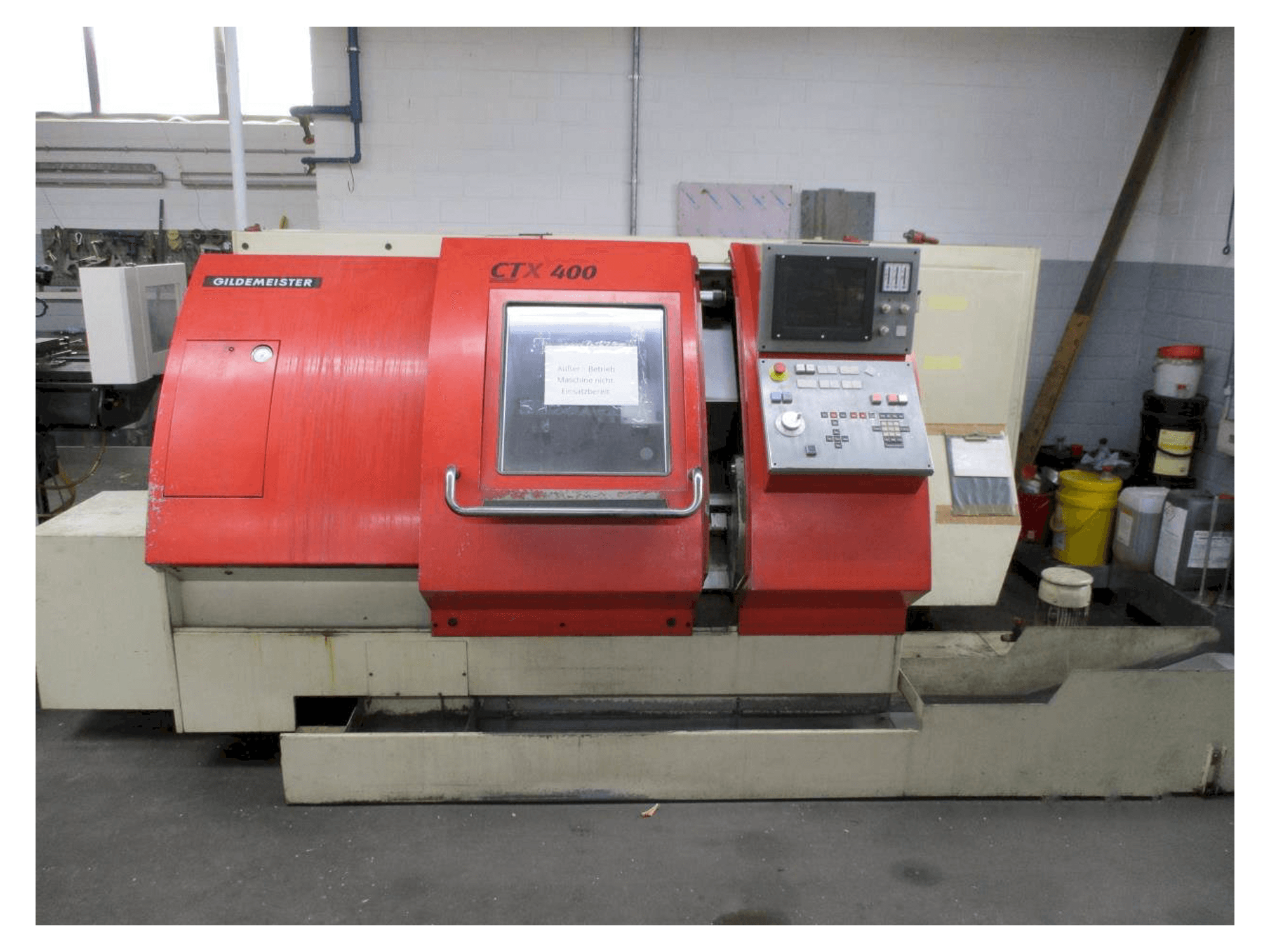

Front view of Gildemeister CTX 400  machine

Gildemeister - CTX 400DE-TUR-GIL-1990-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Gildemeister CTX 400 Lathe was manufactured in the year 1990 in Germany and has 18335 production hours. It is equipped with a Gildemeister EPL 2 control unit. The machine has a spindle speed of 25-5000 rpm.

Overview

  • brand: Gildemeister
  • year: 1990
  • MODEL: CTX 400
  • production hours: 18335
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Sold

Technical Information - Gildemeister CTX 400

Control Unit

  • Model: EPL 2

Main drive

  • Spindle speed range: 25-5000 1/MIN
  • Spindle motor power: 2 kW

Movement

  • X-AXIS Movement: 212 mm
  • Z-AXIS Movement: 640 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning diameter above support: 290 mm
      • - Turning diameter over bed: 500 mm
      • - Spindle diam. Front bearing: 100 mm
      • - Spindle bore diameter: 72 mm hollow chip removal direction
      • - Torque: 210 nm
      • - Cylindrical shank tool holder: vdi 30
      • - Tailstock quill stroke: 100 mm
      • - Quill inner cone: mk 4
      • - Tailstock force: 8 kn
      • - Counter spindle: none

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
