- GILDEMEISTER CTX 400 Serie 2 Lathe

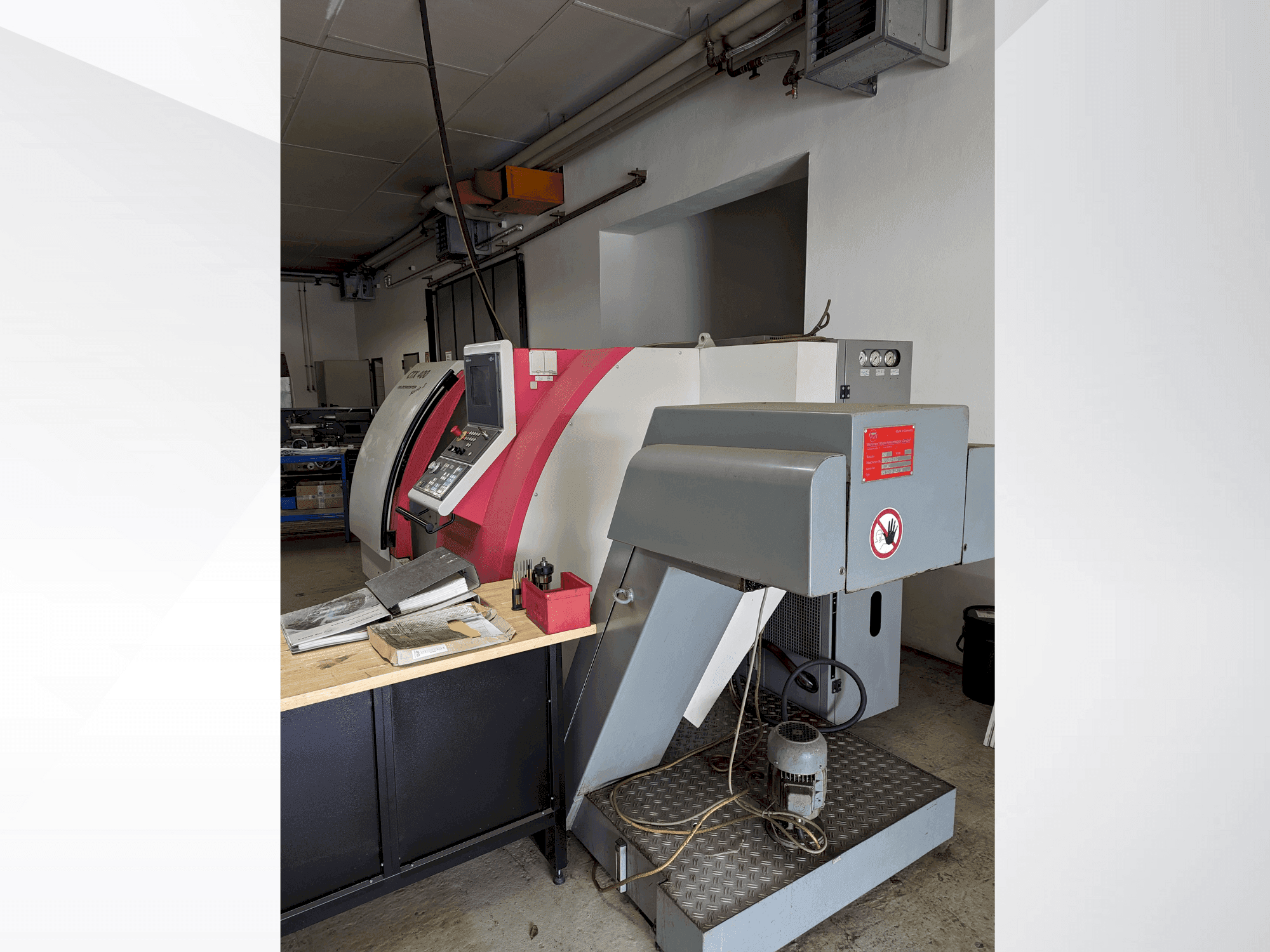

This GILDEMEISTER CTX 400 Serie 2 Lathe was manufactured in the year 1998. It is equipped with a DIN Plus Turn Plus control. It disposes of a turret with 12 tool positions and a tailstock.
Overview
- brand: Gildemeister
- year: 1998
- MODEL: CTX 400 Serie 2
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: DIN
Technical Information - Gildemeister CTX 400 Serie 2
General Data
- Machine weight: 5500 kg
Control Unit
- Brand: DIN
- Model: Plus Turn Plus
Main drive
- Number of spindles: 1
- Spindle speed range: 25-5000 1/MIN
- Spindle motor power: 21 kW
- Spindle bore: 79mm
- Number of axis: 2
Movement
- X-AXIS Movement: 220 mm
- Z-AXIS Movement: 635 mm
Turret
- Number of turrets: 1
- Number of tool slots: 12
Additional Information
- Technical Machine Benefits:
- - Turning diameter: max. 400mm, turning length: max. 600mm, standard turning diameter: 200mm
- - Main spindle: max. Torque 240 nm, usable bar diameter 68mm, chuck diameter 200mm
- - Spindle head 170h5
- - Tool holder vdi 30 / (vdi 40)
- - Shank diameter 20x20mm
- - Tailstock displacement 550mm
- - Tailstock holder mk 4
- - Tailstock max. Suction pressure 4000n
- - Total power requirement: 44 kw
- - Space requirement approx. 6. 0 x 2. 8 x 2. 3 m
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
