➤ Used Gildemeister CTX-400 S2 For sale | gindumac.com

Show in original language

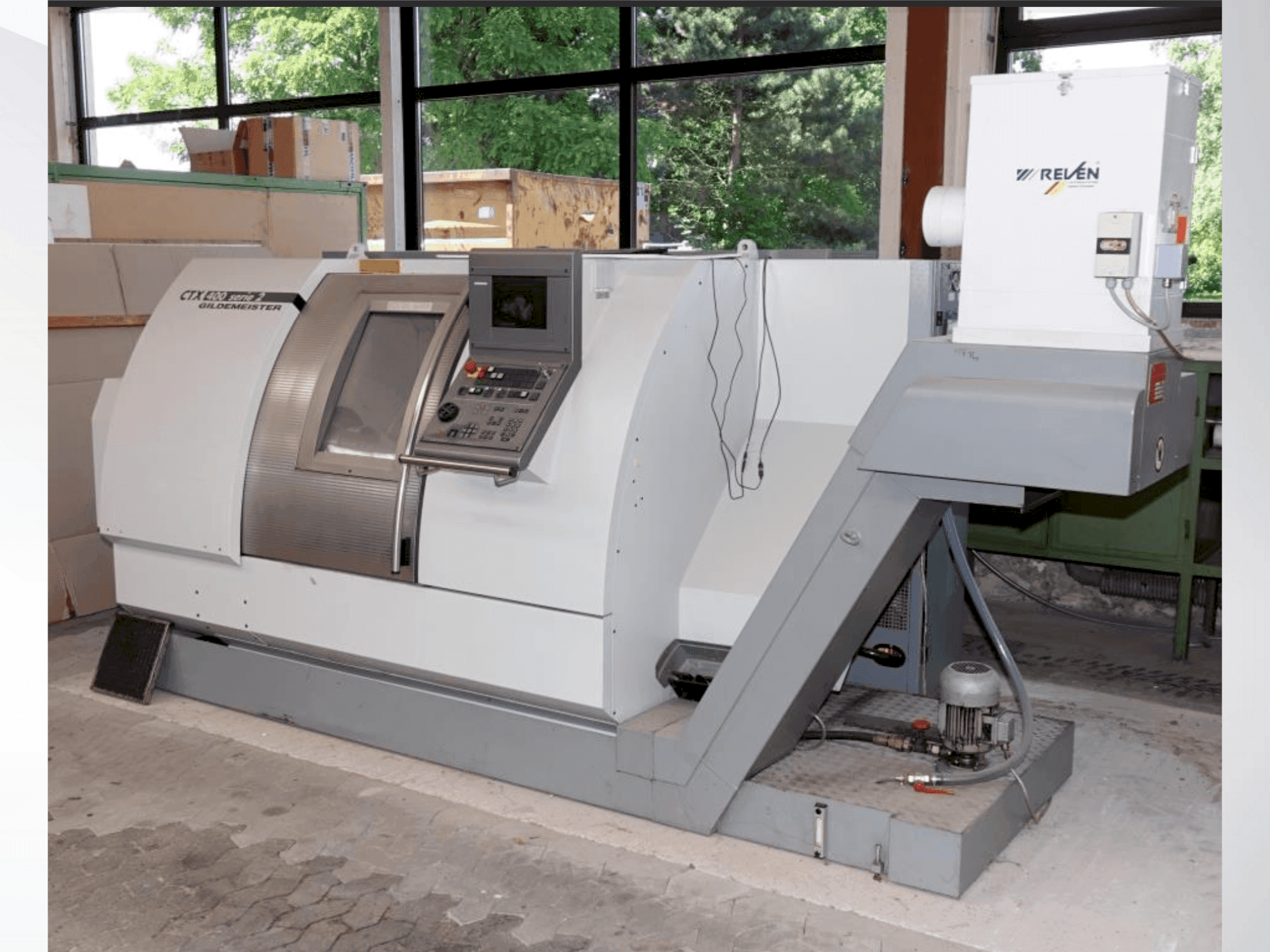

This Gildemeister CTX-400 S2 was manufactured in 2002. A robust lathe featuring a Heidenhein CNC Pilot 4290 V6.4 control, chip conveyor, and oil mist extraction. Includes over 100 accessories, many driven tools, and an operational measuring arm. Currently connected to power for on-site inspection. A valuable addition for any machining needs. Contact us for more information.

Overview

brand: Gildemeister
year: 2002
MODEL: CTX-400 S2
production hours: 40302
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Heidenhain

Technical Information - Gildemeister CTX-400 S2

General Data

Measurements width: 1750 mm
Measurements depth: 3210 mm
Measurements height: 1750 mm
Machine weight: 5300 kg

Control Unit

Brand: Heidenhain
Model: CNC Pilot 4290 V6.4 .... 14a

Main drive

Spindle speed range: 25-5000 rpm 1/MIN
Spindle bore: 79mm
Number of axis: 2

Movement

X-AXIS Movement: 220 mm
Z-AXIS Movement: 635 mm

Additional Equipment

- Chip conveyor
- Oil mist extraction
- Measuring arm
- Over 100 accessories including driven tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Circulation -Ø over bedway cover: 570mm // circulation -Ø over face guide cover: 420mm
- - Plan path: 220mm
- - Longitudinal travel: 635mm
- - Spindle head: -Ø: 170mm // spindle head: -Ø in front bearing: 120mm
- - Drive power 100% ed: 21kw
- - Max. Torque: 240nm // holding torque: 200nm
- - Speed: 100 min^-1
- - Driven tools + c-axis
Qualitative Machine Benefits:
- - Has roller guides
- - Has direct drive (instead of belt drive)
- - Has three-phase drives - i. E. Brushless!!!
- - Keyboard is already equipped with hall sensors (wear-free)
- - All relevant machine parameters are permanently stored in the sik module.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
