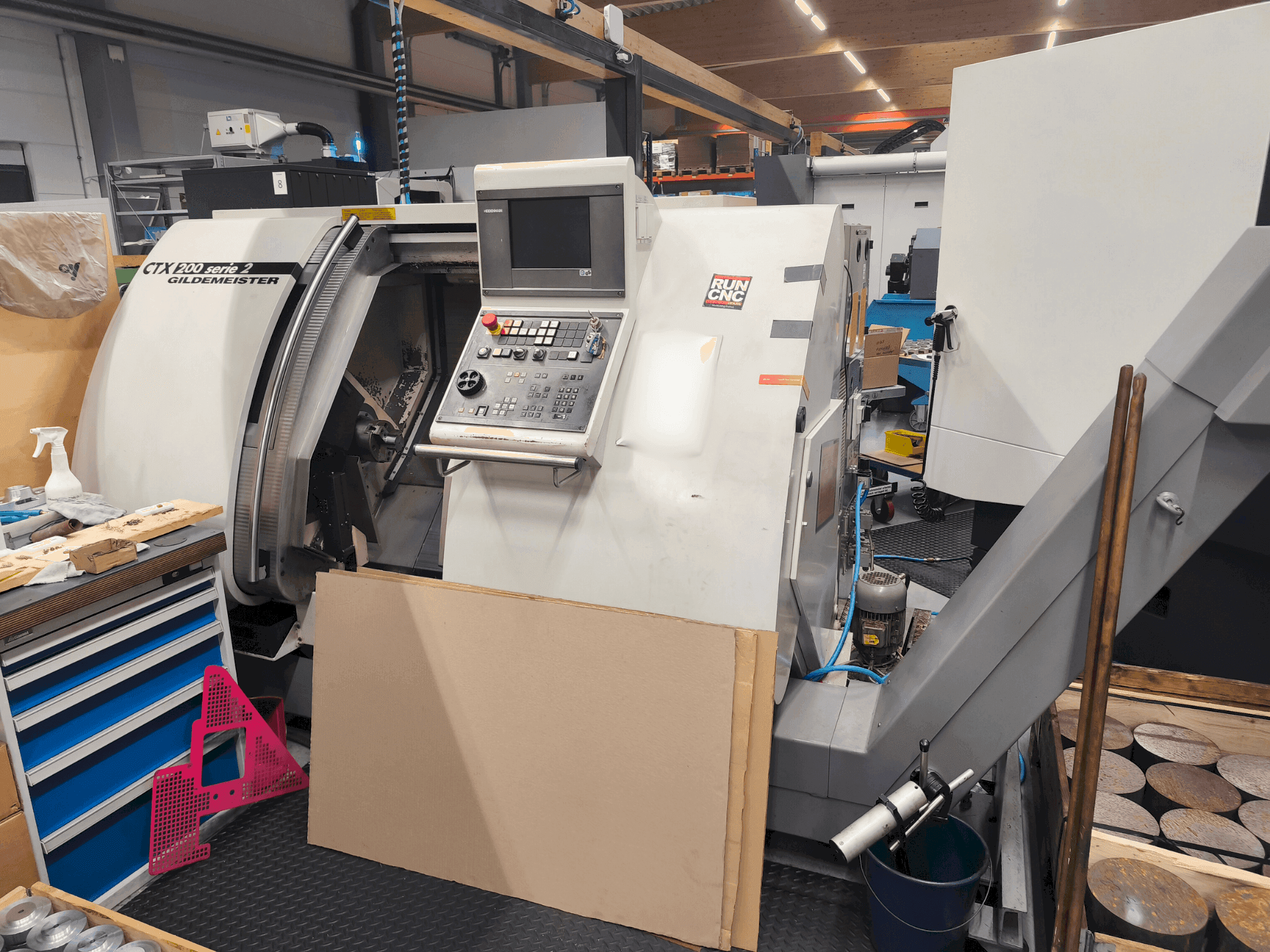

Gildemeister - CTX 200 Serie 2DE-TUR-GIL-2001-00005

Additional Equipment

• - Coolant pump
• - Tailstock
• - Includes 3 jaw chucks and various holders for turning tools

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Circumferential Ø over bed guide cover: 440 mm
  • - Circumferential Ø over face guide cover: 210 mm
  • - Face path: 160 mm
  • - Longitudinal travel: 350 mm
  • - Spindle head Ø: 120 mm
  • - Spindle head Ø in front bearing: 85 mm
  • - Spindle bore: 56 mm
  • - Chuck Ø: 140 mm
  • - Drive power 100% ed: 9 kw
  • - Max. Torque: 84 nm
• Qualitative Machine Benefits:
  • - Ball screw x/z: 25x10 mm
  • - Universal disc-type turret (automatic indexing with directional logic and fixed tool pull)
  • - Tool holders: din 69880 20mm
  • - Max. Driven tools: 12
  • - Max. Clamping diameter of the driven tools: 13 mm
  • - Tailstock diameter in the front area: 80 mm
  • - Tailstock travel: 350 mm
  • - Tailstock reception: mk 3
  • - Tailstock force min. /max. : 3 kn
  • - Has no driven tools

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
