Finn-Power LP6 SBTV Laser Punch Combination Machine

Show in original language

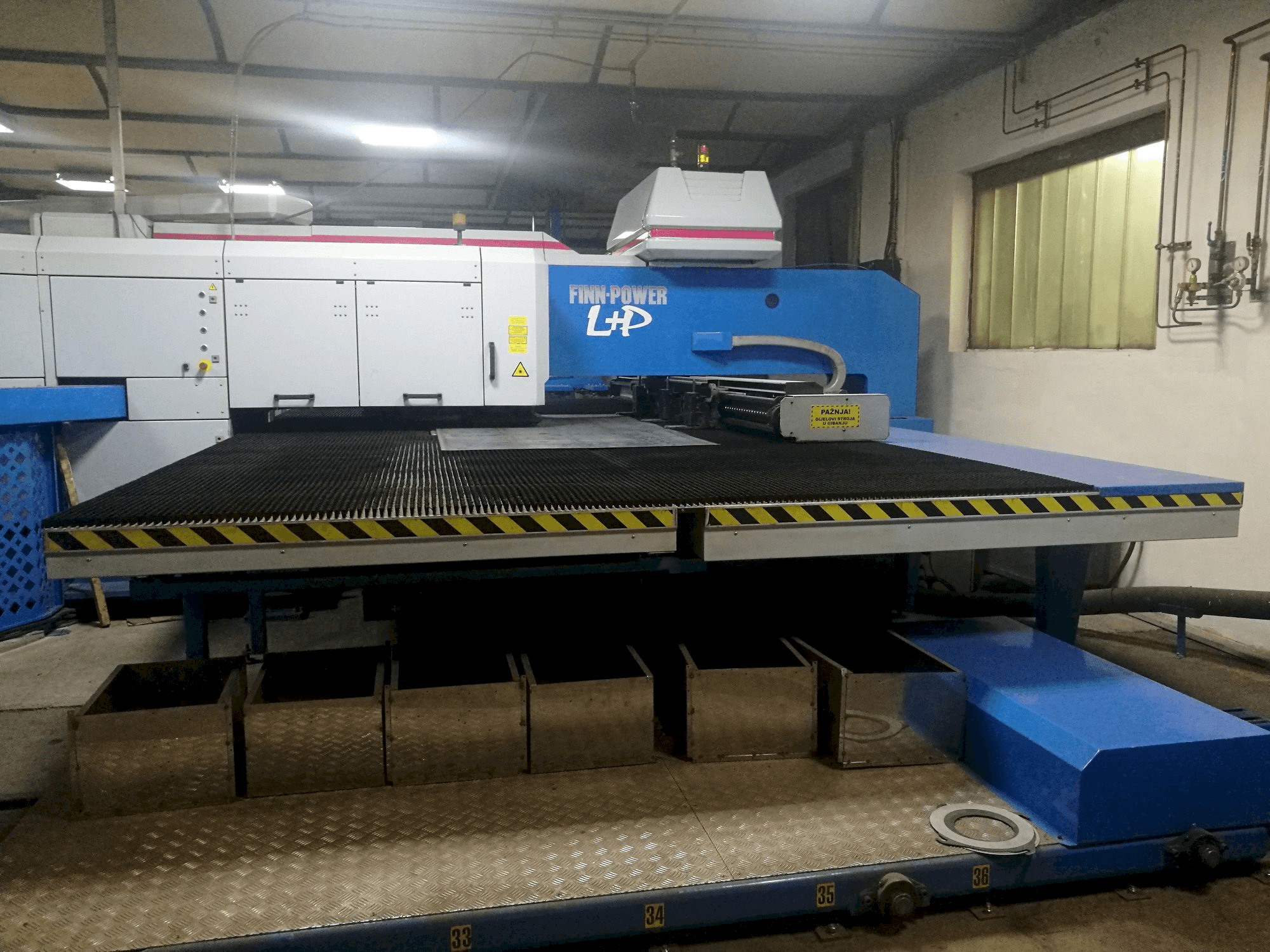

This Finn-Power LP6 SBTV Laser Punch Combination Machine was manufactured in Finland in 2000 and has been working for 9161 punching hours and 8600 laser hours respectively. Operated through a SIEMENS 840D Control unit, this machine has mainly been working with steel up to 2mm of thickness during the past. It is in a very good state due to a retrofit in 2012. Several additional equipment such as a chiller and filter unit, along with a sheet loader are included.

Overview

brand: Finn-Power
year: 2000
MODEL: LP6 SBTV
application type: Cutting
Location: Croatia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power LP6 SBTV

General Data

Measurements width: 13500 mm
Measurements depth: 9000 mm
Measurements height: 3500 mm
Machine weight: 17000 kg

Control Unit

Brand: SIEMENS
Model: 840D
CNC main language: English
CNC language customizable: Yes

Main drive

Laserpower: 2.5 kW
Laser type: CO2
Punching force: 300 kN
Maximum sheet thickness: 8 mm
Laser brand: Rofin Triagon

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1560 mm

Workpiece

Workpiece x: 3061 mm
Workpiece y: 1528 mm
Workpiece weight: 200 kg

Tools

Number of index: 5
Number of stations: 20
Slots in storage: 20

Max Material thickness

Steel: 8 mm

Media

Main electronic connection: 400 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Sheet loader Lift master (3000x1500)
- Automatic sorting units (6 pcs)
- 1 Multitool MT6A
- Chiller unit
- Filter unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
