Used FEELER VMP 40A - 2019 - Vertical Machining Center for sale | gindumac.com

Show in original language

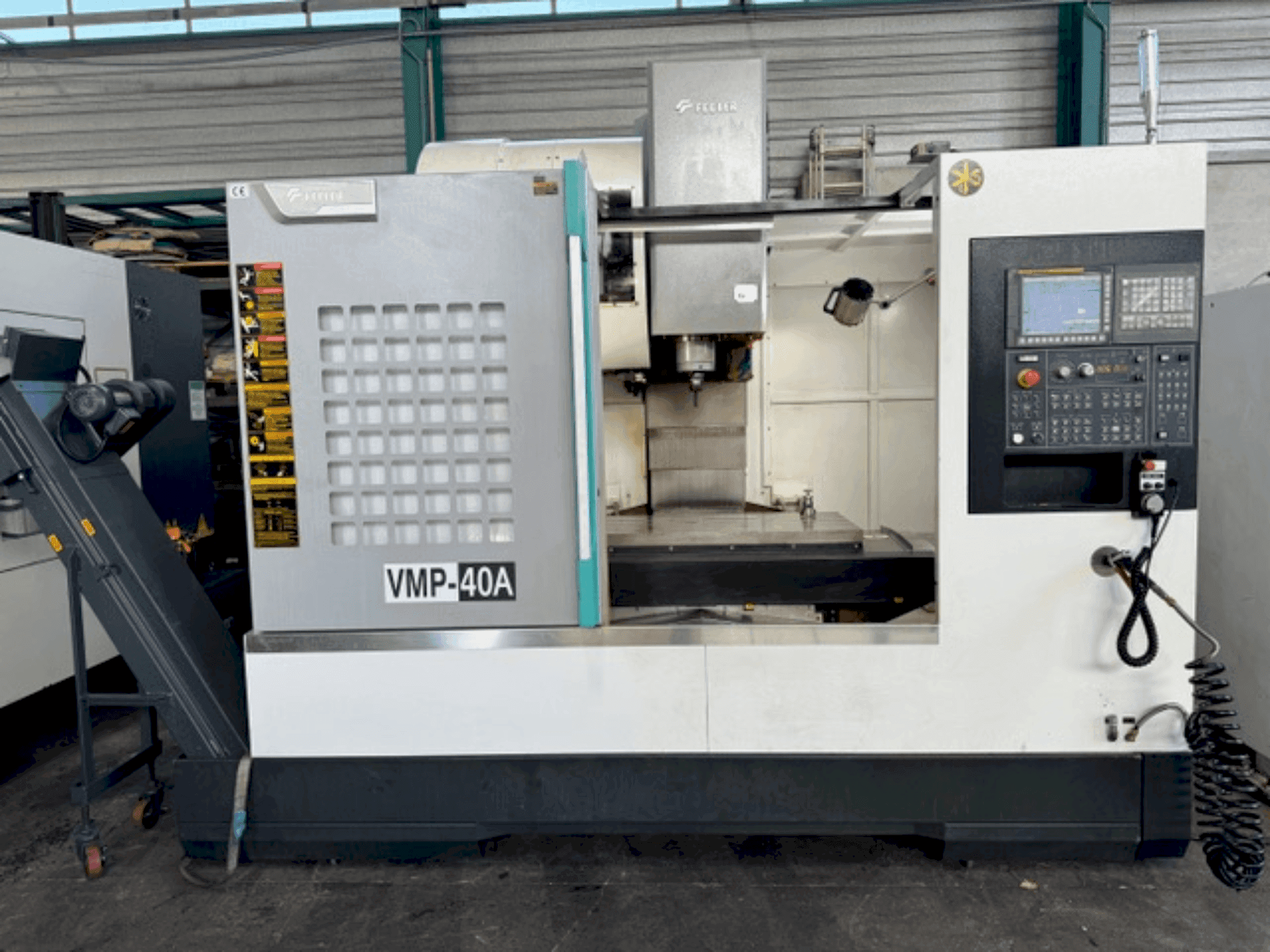

This 3-Axis FEELER VMP 40A vertical machining center was manufactured in 2019. Equipped with a FANUC OiMF control, it features a spindle speed of 10000 rpm and spindle motor power of 15 kW. Table dimensions are 1150x520 mm, and it includes a 30-station tool magazine. Additional features include a chip conveyor and electrical cabinet air conditioning. Consider this FEELER VMP 40A for precision machining capabilities. Contact us for further details.

Overview

brand: Feeler
year: 2019
MODEL: VMP40A
production hours: 7500
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Feeler VMP40A

General Data

Measurements width: 2140 MM
Measurements depth: 3500 MM
Measurements height: 2800 MM
Machine weight: 6300 KG

Control Unit

Model: OiMF
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kw
Tool taper: ISO 40

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 505 mm

Table

Outer length: 1150 MM
Outer width: 520 MM
Min distance between vertical spindle and table: 80 mm
Max distance between vertical spindle and table: 585 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-speed machining, advanced cooling, and precision sensing.
- - Tool and part sensors hexagon infra-red transmission
- - High-pressure spindle-center spraying 30 bars
- - Shower cabin watering
- - Spindle cooler
- - Electrical cabinet air conditioning
Qualitative Machine Benefits:
- - Excellent condition, fully documented, and visible under power for inspection.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
