EXCELLO XHC 242 Horizontal Machining center

Show in original language

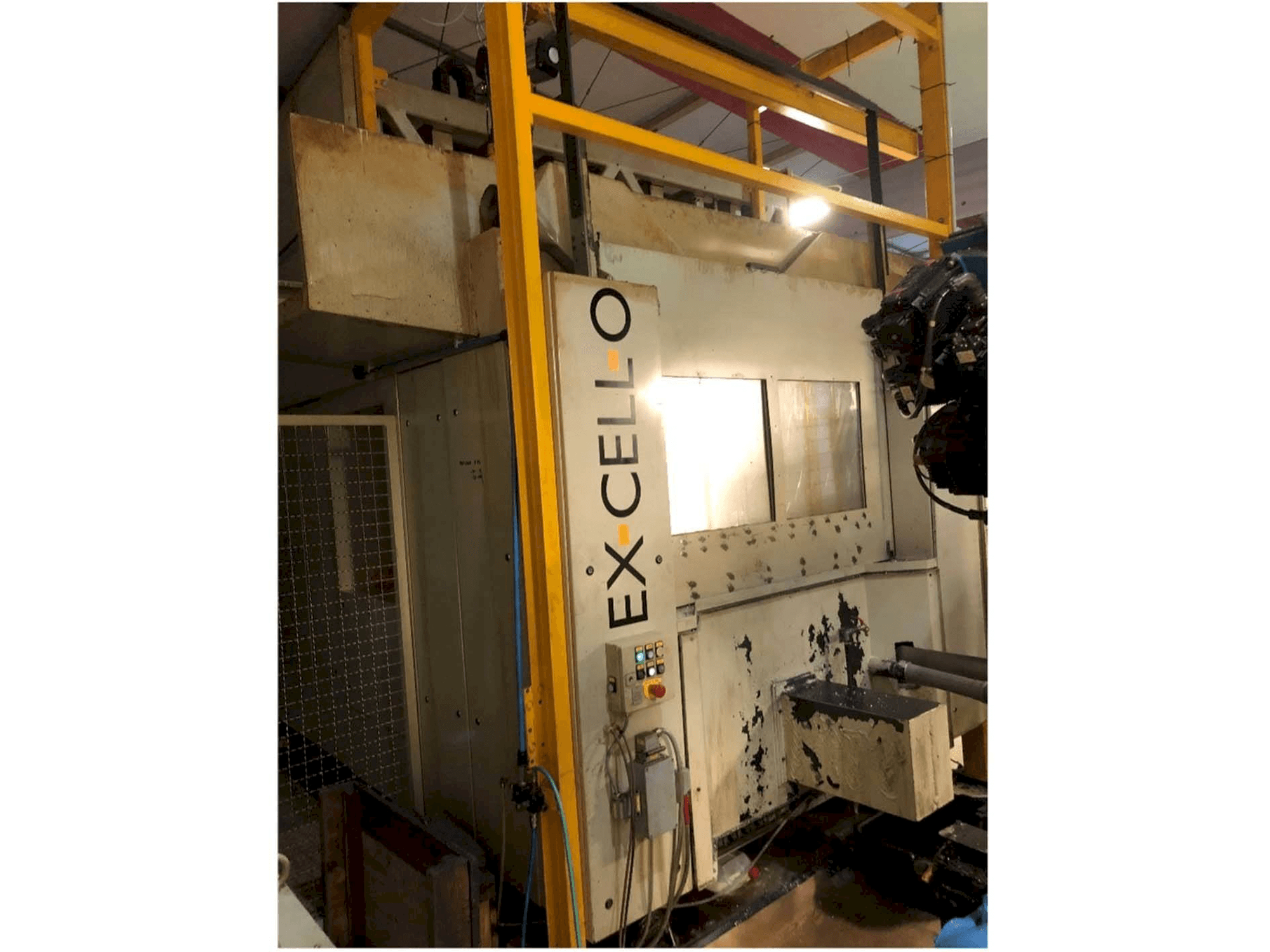

This EXCELLO XHC 242 Horizontal Machining center was made in Japan in 2005. This 2 pallets and 2 spindle machine has been working for 59617 hours and is operated through a Siemens control unit. This 5 axis machine works with a spindle speed up to 16000 rpm. Yaskawa robot Motoman ES200N can be purchased for additional price.

Overview

brand: EXCELLO
year: 2005
MODEL: XHC 242
production hours: 59617
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: Siemens

Technical Information - EXCELLO XHC 242

General Data

Measurements width: 3000 m MM
Measurements depth: 7000 mm
Measurements height: 3900 mm
Machine weight: 28000 kg

Control Unit

Brand: Siemens

Main drive

Spindle speed range: 16000 1/MIN
Spindle motor power: 53 kw
Tool taper: HSK 63 – E & A DIN 69893
Number of axis: 5

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 120 mm
Y-AXIS Movement: 630 mm
Y-AXIS Rapid traverse: 120 mm
Z-AXIS Movement: 710 mm
Z-AXIS Rapid traverse: 120 mm
B-AXIS Movement: 360.000x0.001 ° MM
B-AXIS Rapid traverse: 100 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 2x 500 mm
Outer width: 2x 500 mm

Tools

Number of index: 256
Max weight: 10 kg
Max tool diameter: 70 mm
Max tool length: 300 mm

Additional Information

Extra information

- Additional price: Yaskawa robot Motoman ES200N (200kg payload) with NX100 controller, YOB 01/2008.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
