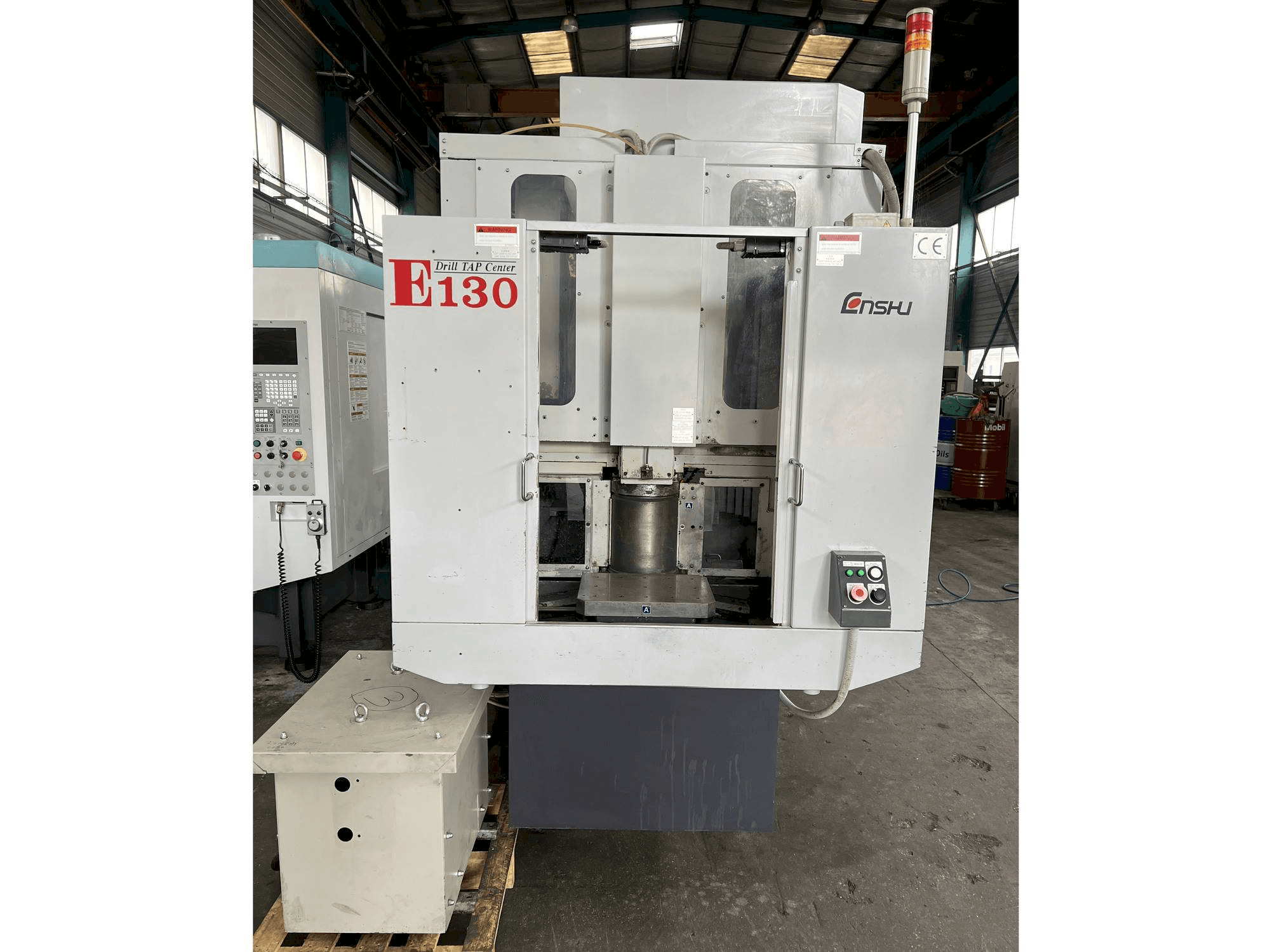

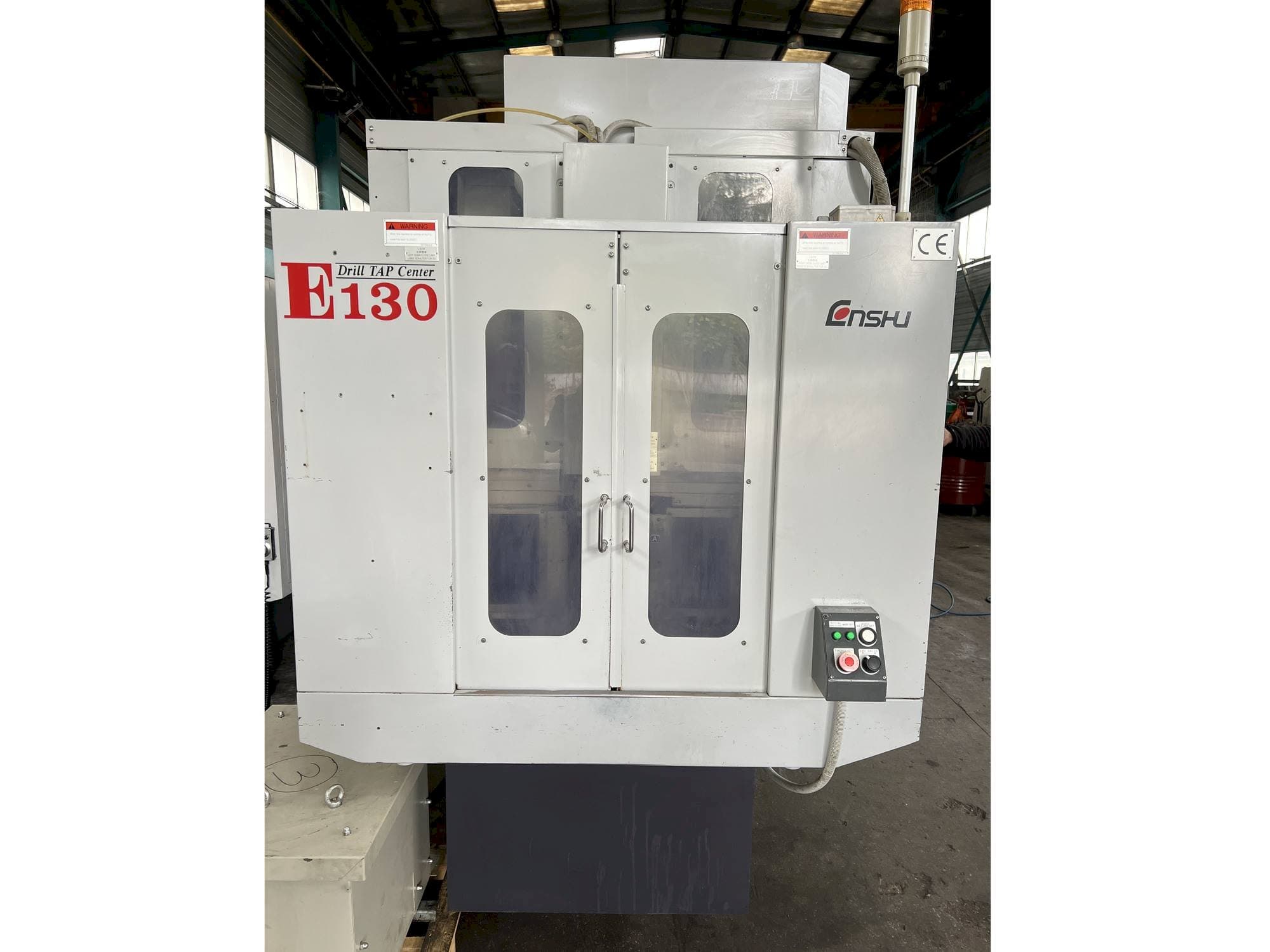

ENSHU E130 Vertical Machining Center

Show in original language

This ENSHU E130 Vertical Machining Center was manufactured in the year 2010 in Japan. It is equipped with a FANUC Series 21i-TB control unit and has 3 axis. The machine has a spindle speed of 100-10000 rpm and comes with high pressure and the RENISHAW measuring tool.

Overview

brand: Enshu
year: 2010
MODEL: E130
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Enshu E130

General Data

Measurements width: 1300 mm
Measurements depth: 35100 mm
Measurements height: 2200 mm
Machine weight: 2200 kg

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Spindle speed range: 100 - 10000 1/MIN
Tool taper: BT30
Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 600 mm
Outer width: 350 mm
Table load: 200 kg

Media

Main electronic connection: 200/220 V
Power consumption: 15 kW

Additional Equipment

- comes with high pressure and the RENISHAW measuring tool

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Magazine tool capacity: 12 tools
- - Tool selection: random
- - Tool exchange time: 2 sec
- - Interface: ethernet
- - Hight pressure watering in the center of spindle
Qualitative Machine Benefits:
- - Complete documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
