- Engel Victory 500/90 Power Injection moulding machine

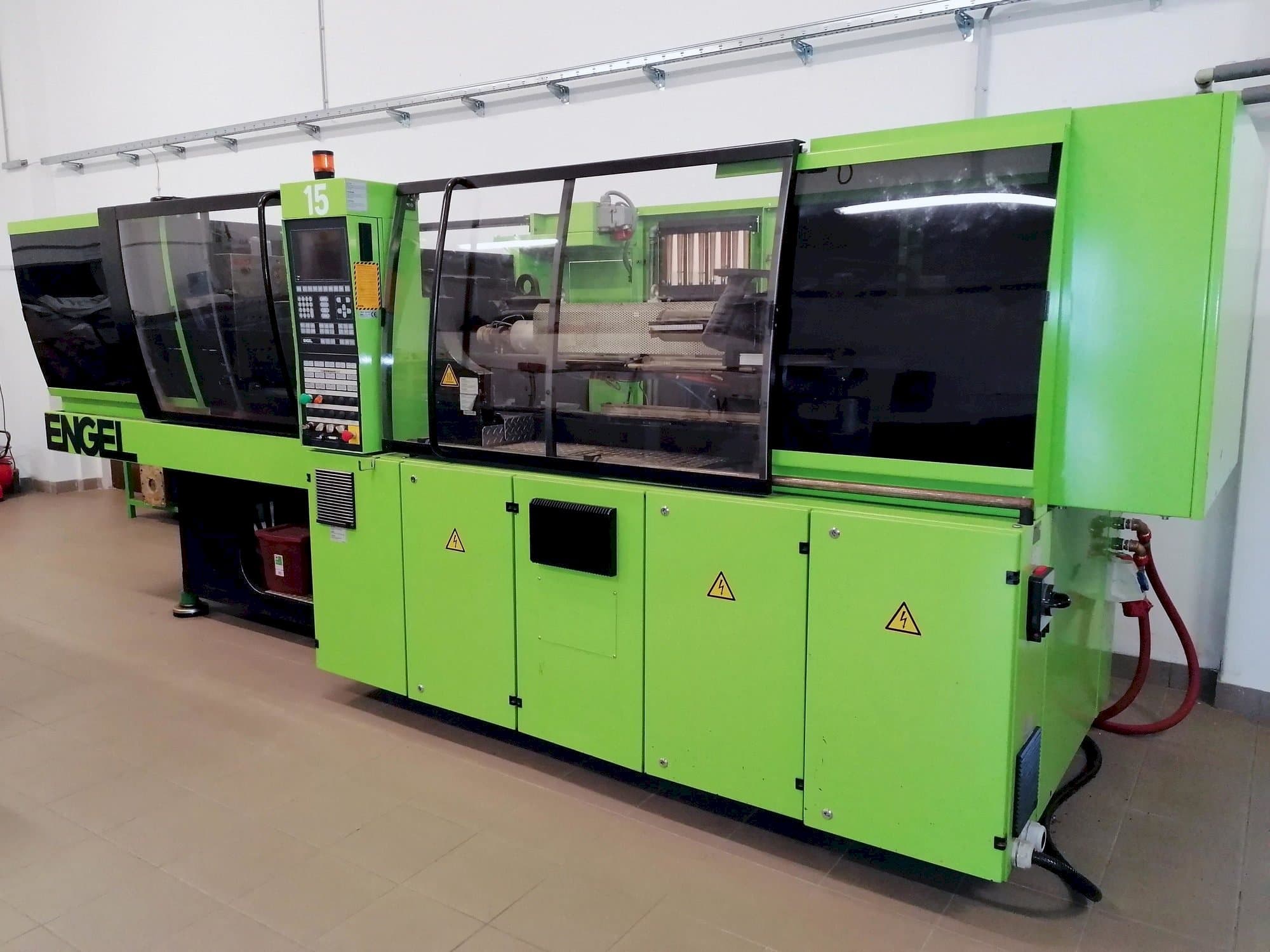

This Engel Victory 500/90 Power Injection moulding machine was manufactured in the year 2003 and has 40400 production hours. It is equipped with an Engel CC 100 color control unit. The machine has a clamping force of 900 kN, is in good condition and well maintained.
Overview
- brand: Engel
- year: 2003
- MODEL: Victory 500/90 Power
- production hours: 40400
- application type: Injection Moulding
- Location: Hungary
- machine type: Electrical Injection Moulding Machine
- availability: Sold
- control unit brand: Engel
Technical Information - Engel Victory 500/90 Power
General Data
- Measurements width: 1500 mm
- Measurements depth: 4900 mm
- Measurements height: 1900 mm
- Machine weight: 6800 kg
Control Unit
- Brand: Engel
- Model: CC 100 color
Injection Unit
- Screw diameter: 45 mm
Clamping unit
- Clamping force: 900 kN
- Mould height min: 300 mm
- Ejector stroke: hydraulic MM
Additional Information
- Technical Machine Benefits:
- - Dosing volume: 318 ccm
- - Tie bar distance: tie bar-less machine
- - Size of clamping platens: 740 x 680 mm
- - Plate distance max. : 800 mm
- - Clamping unit: hydraulic
- - Hydraulic core pull x 1
- - Pump/motor: 18,5 kw
- - Heating power: 12,2 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
