Engel - Victory 2050H/650v/350 CombiDE-INJ-ENG-2015-00003
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Plastics Processing Machinery
- Used ENGEL Victory 350 For sale | gindumac.com

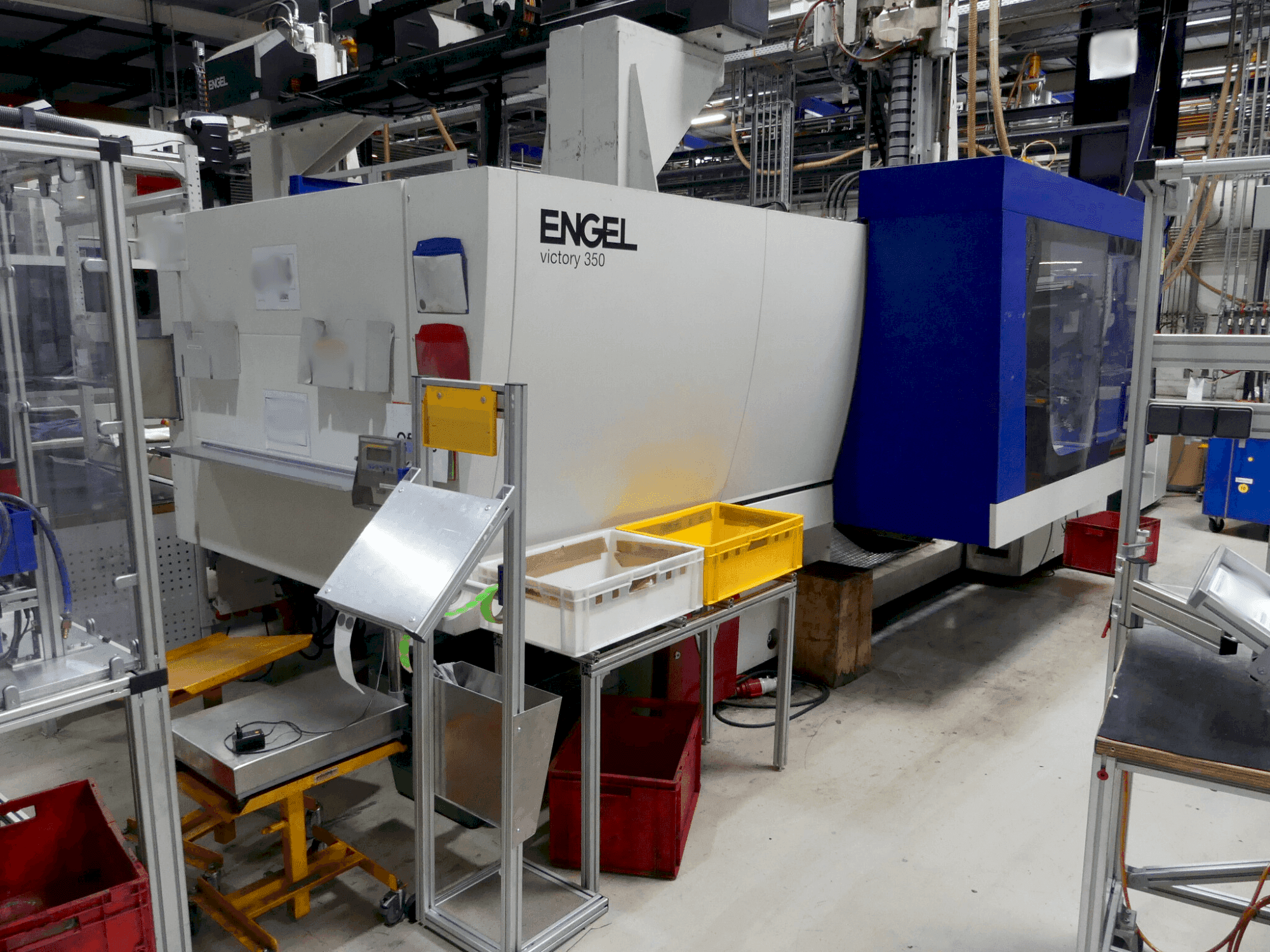

This ENGEL Victory 2050H/650v/350 Combi injection moulding machine was manufactured in 2015. It boasts significant capabilities with a clamping force of 350 tons and an injection pressure of 1480 bar. The machine offers a maximum injection volume of 808.17 cm³ horizontally and 294.52 cm³ vertically, enhancing its versatility. Additionally, it is equipped with special accessories like Valves + control, an Index plate, and a Viper robot 40 for automated removal. Reach out for more information about this injection moulding machine.
Overview
- brand: Engel
- year: 2015
- MODEL: Victory 2050H/650v/350 Combi
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Engel Victory 2050H/650v/350 Combi
General Data
- Machine weight: 5100 KG
Injection Unit
- Stroke volume: minimum injection volume (cm3) 1D - horizontal 269.39, vertical 98.17 / maximum injection volume (cm3) 3D - horizontal 808.17; 294.52 CM³
- Injection pressure: 1480 bar
Clamping unit
- Clamping force: 350 tons KN
Additional Equipment
- - Valves + control
- - Index plate
- - Viper robot 40
- - Removal weight with gripper 23 kg
- - permissible torque on gearbox 113 Nm
Additional Information
- Technical Machine Benefits:
- - Thread clamping plate diameter: 20
- - Spray weight g/hp horizontal: 1051 g
- - Spray weight g/hp vertical: 357. 6 g
- - Total permissible mould weight of which on moving platen max: 2. 5 t
- - Amin installation height: 650 with platen, 750 without platen / amax installation height: 1000, bmax
- - Opening travel: 1650 with plate / 1750 without plate
- - Ejector stroke max 250
- - Cylinder diameter horizontal (mm) 70 / vertical (mm) 50
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
