ENGEL Victory 1050/220 Tech

Show in original language

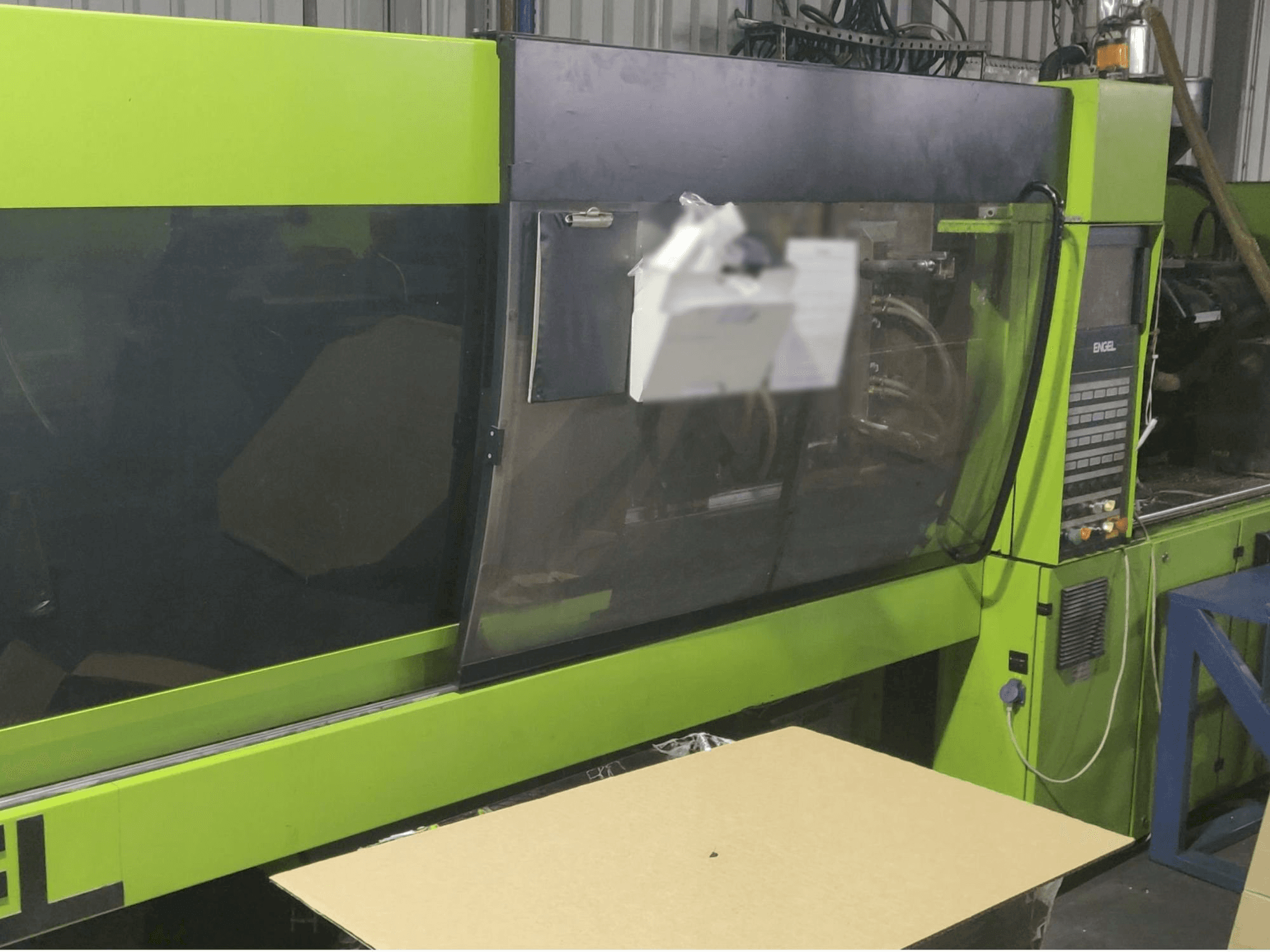

This ENGEL Victory 1050/220 Tech Injection Moulding Machine was built in the year 2004. It has been operative for 52972 hours. This machine is equipped with an ENGEL CC200 control unit. It offers a clamping force 2200 kN and an injection pressure 1955 bar. 1GB memory card and 2 operator cards are included in the offer.

Overview

brand: Engel
year: 2004
MODEL: Victory 1050/220 Tech
production hours: 52972
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Victory 1050/220 Tech

General Data

Measurements width: 6500 MM
Measurements depth: 1800 MM
Measurements height: 2400 mm
Machine weight: 13500 kg

Control Unit

Model: CC200
Brand: ENGEL

Injection Unit

Screw diameter: 55 mm
Injection pressure: 1955 bar
Screw speed: 183 rpm
Nozzle pressure: 350 mm

Clamping unit

Clamping force: 2200 kN
Opening stroke: 756 mm
Size of mold platens: 860 x 580 mm
Ejector stroke: 180 mm
Ejector force for / back: 80 kN

Additional Equipment

- 1GB memory card
- 2 operator cards

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pump drive power: 30 kw
- - Max injection volume: pvc 511 cm3
- - Injection rate: 210 cm3/s
- - Injection pressure increased: 2332 bar
- - The machine prepared for pvc injection
Qualitative Machine Benefits:
- - Full service documentation
- - The pump + clutch was replaced by engel service with a new one in oct 2013
- - The machine is out of the production today

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
