➤ Used Engel ES200/40 HLS For sale | gindumac.com

Show in original language

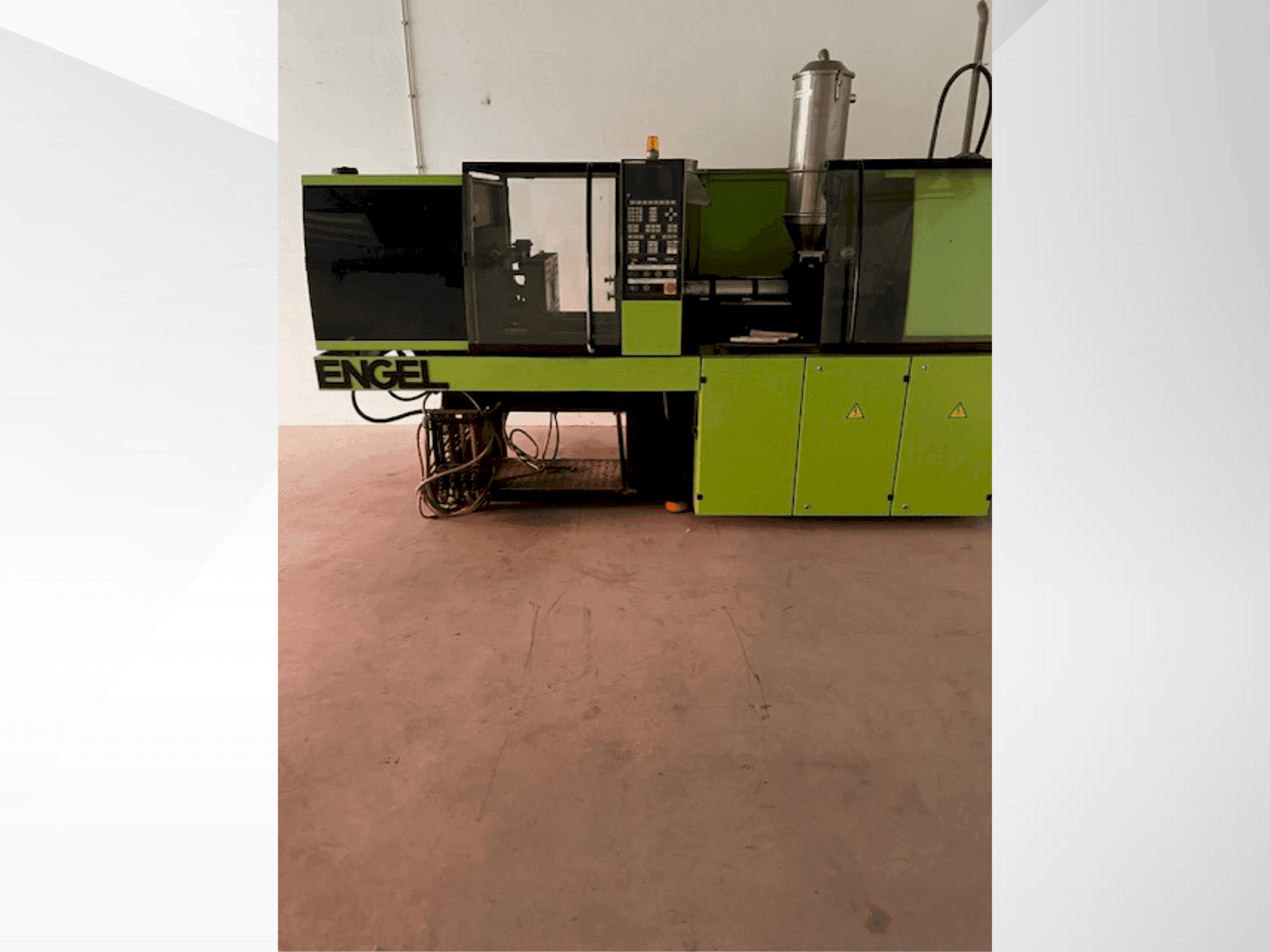

This Engel ES200/40 HLS injection moulding machine was manufactured in 1995. It features a clamping force of 400 kN, a stroke movable clamping plate of 350 mm, and a maximum distance between plates of 530 mm. With a pump drive power of 11 kW and a total weight of 3200 kg, the Engel ES200/40 HLS machine we have for sale represents a robust opportunity for efficient production. Contact us for more information.

Overview

brand: Engel
year: 1995
MODEL: ES200/40 HLS
production hours: 39904
application type: Injection Moulding
Location: Belgium
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Engel ES200/40 HLS

General Data

Machine weight: 3200 KG

Injection Unit

Screw speed: 20-480 rpm
Heating capacity: 6.8 kw
Adjustable heating zones: 4

Clamping unit

Clamping force: 400 kn
Mould height min: 180 mm
Ejector stroke: 100 mm
Ejector force for / back: 30 kn

Media

Pump drive power: 11 kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke movable clamping plate: 350 mm
- - Max. Distance between plates: 530 mm
- - Clamping plates - total dimensions: 550 x 330 mm
- - Extended clamping plate: 550 x 430 mm
- - Dry cycle: 1. 5 sec
- - Oil filling: 115 l
- - Stroke nozzle: 200 kn
- - Nozzle contact force: 28 kw
- - Dosing length: 140 r/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
