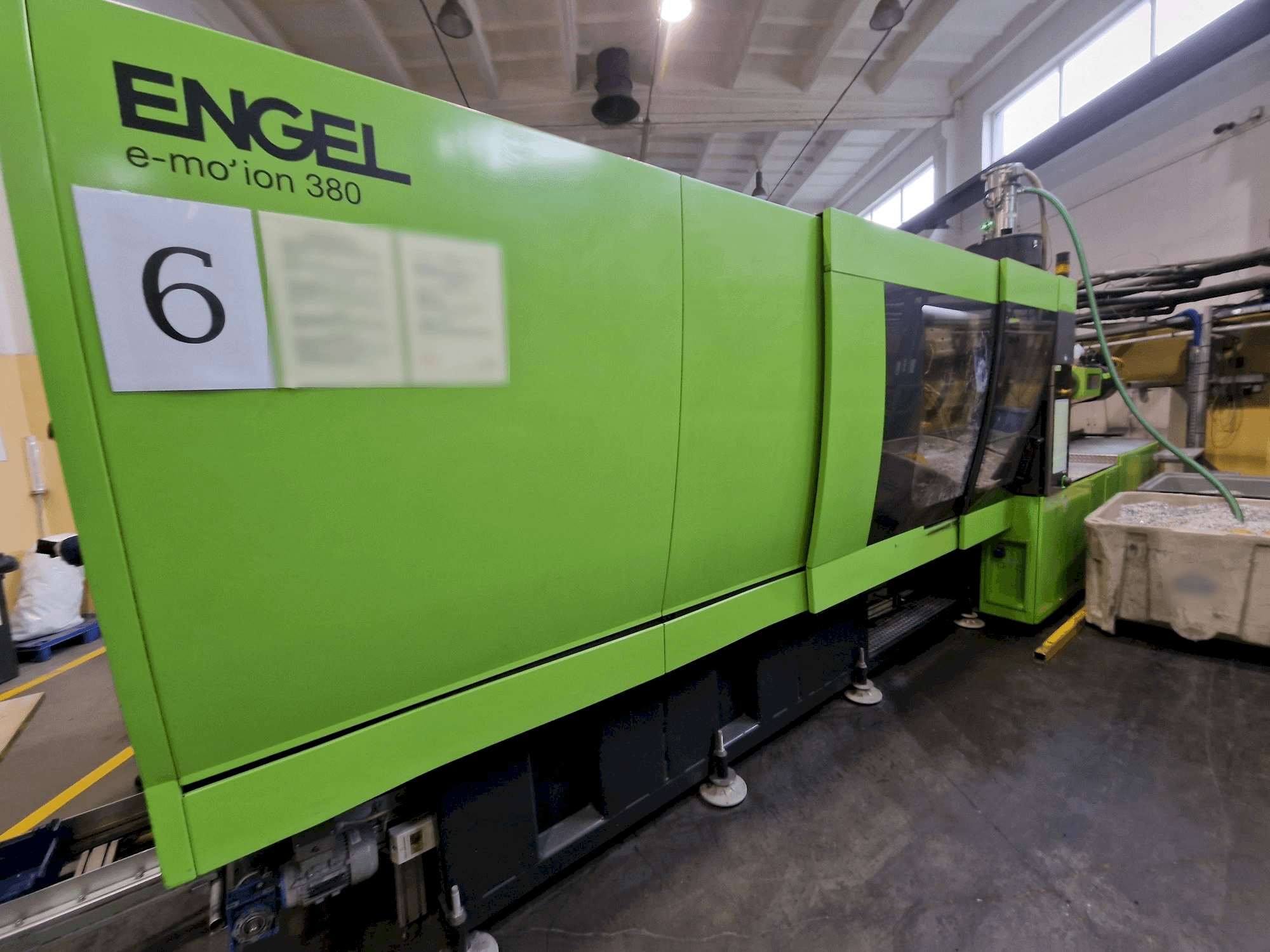

ENGEL e-motion 2440/380 T Injection moulding machine

Show in original language

This ENGEL e-motion 2440/380 T Injection moulding machine was manufactured in the year 2015 in Austria and has 53893 production hours. It is controlled by an ENGEL CC300 control unit. The machine has a clamping force of 3800 kN.

Overview

brand: Engel
year: 2015
MODEL: e-motion 2440/380 T
production hours: 55201
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel e-motion 2440/380 T

General Data

Measurements width: 8300 mm
Measurements depth: 2200 mm
Measurements height: 2600 mm
Machine weight: 22200 kg

Control Unit

Model: CC300
Brand: ENGEL

Injection Unit

Nozzle pressure: 500 mm

Clamping unit

Clamping force: 3800 kN
Opening stroke: 700 mm
Mould height min: 300 mm
Mould height max: 750 mm
Size of mold platens: 1140x1140 mm
Ejector force for / back: 120 kN

Media

Main electronic connection: 3x400V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High performance and precision.
- - All-electric and energy efficient.
- - Fast, dynamic and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings
- - Maximum energy efficiency due to the consistent use of servo-electric drive technology with maximum effectiveness
- - Highly efficient injection unit ensures ultra-fast injection
- - The machine is still at the production and can be checked for request. Full service documentation and manuals.
- - S8 barrier screw, geometry g16 r with r-mixing head - diameter 70 mm - screw length l/d 24
- - Direct drive ejector bg4 max force: 120 kn
- - Platens with locating diameter in standard execution euromap - centering 160 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
