ENGEL Duo 1800/400 Injection Moulding Machine

Show in original language

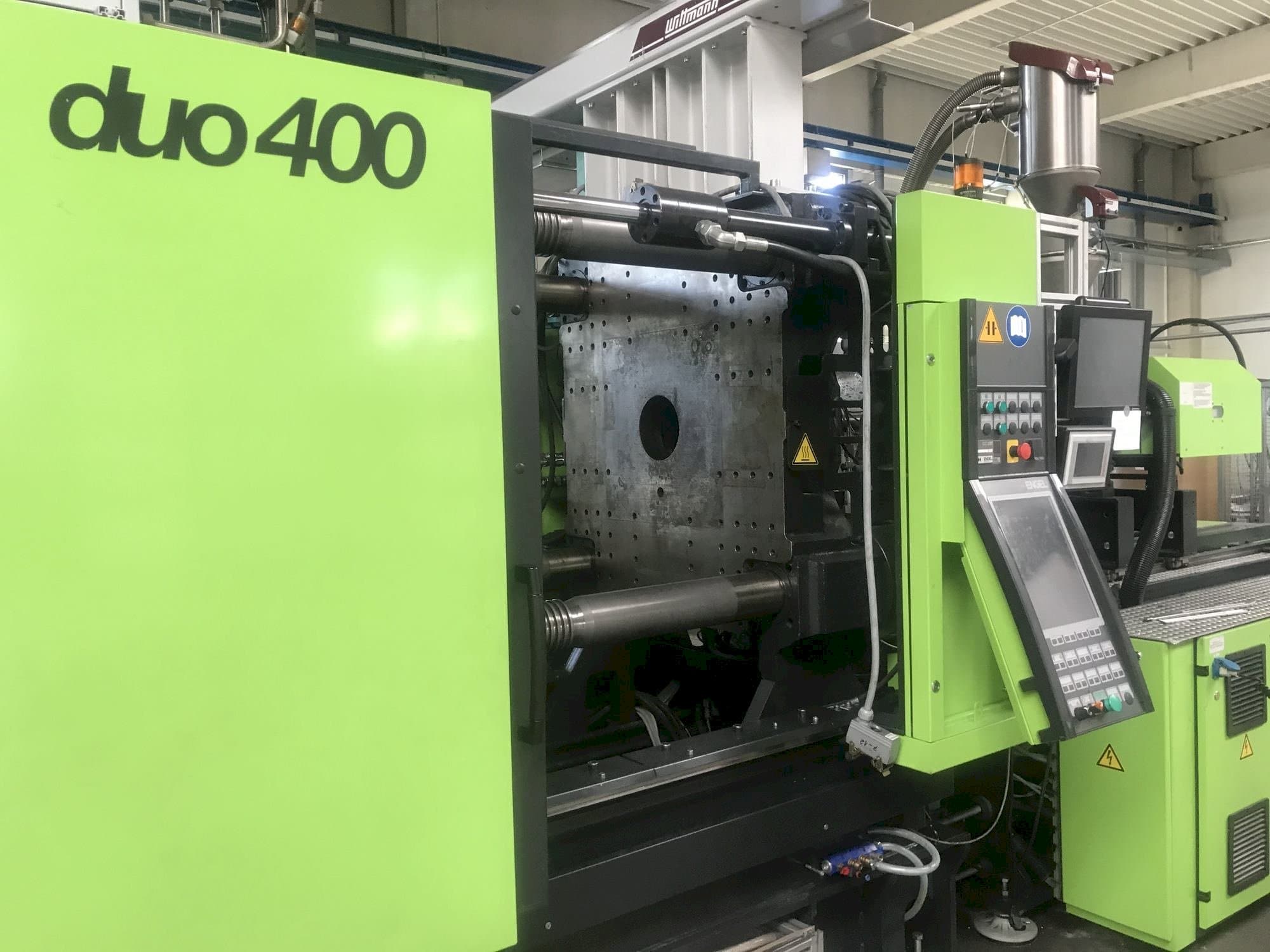

This ENGEL Duo 1800/400 Injection Moulding Machine was manufactured in the year 2013. It is equipped with a control unit of the same brand. This machine incorporates a clamping force of 4000 kN, a screw diameter of 60 mm, and an injection pressure of 2360 bar.

Overview

brand: Engel
year: 2013
MODEL: Duo 1800/400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel Duo 1800/400

Tools

Max weight: 6500 kg

Injection Unit

Screw diameter: 60 mm
Shot weight: 694 g
Injection pressure: 2360 bar

Clamping unit

Clamping force: 4000 kN
Max open daylight: 1050 mm
Mould height min: 350 mm
Mould height max: 850 mm
Size of mold platens: 1100 mm horizontal x 1190 mm vertical
Ejector stroke: 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
